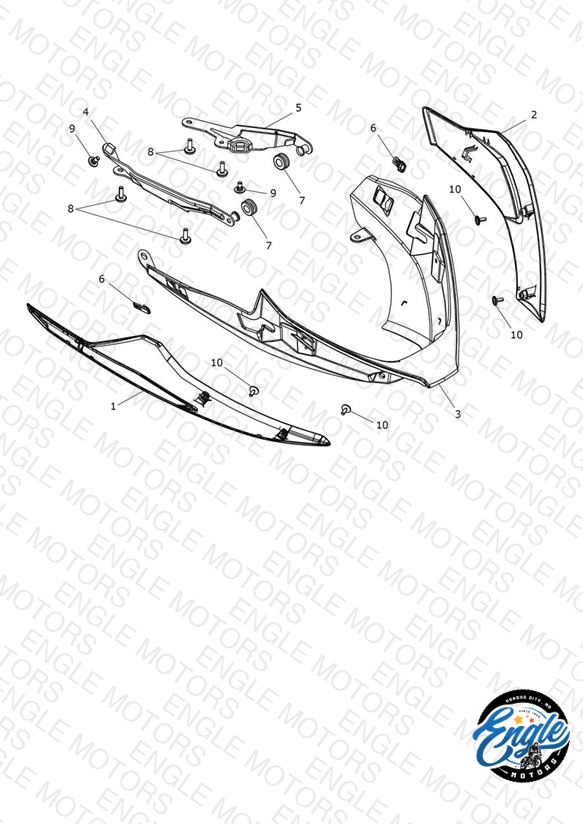

Loading schematic...
Bellypan
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2317058-MP Bellypan, RH, Silver Ice | Bellypan, RH, Silver Ice > CK2014 | 1 | $225.21 | Available to order | 1 |
| 1 | T2317058-CU Bellypan, RH, Carnival Red | Bellypan, RH, Carnival Red | 1 | $225.21 | Available to order | 1 |
| 1 | T2317058-FJ Bellypan, RH, Cosmic Yellow | Bellypan, RH, Cosmic Yellow | 1 | $225.21 | Available to order | 1 |
| 1 | T2317058-PR Bellypan, RH, Phantom Black | Bellypan, RH, Phantom Black | 1 | $225.21 | Available to order | 1 |
| 1 | T2317058-LE Bellypan, RH, Granite | Bellypan, RH, Granite CK2015 > | 1 | $14.36 | Backorder — Late July 2026 | 1 |
| 2 | T2317057-MP Bellypan, LH, Silver Ice | Bellypan, LH, Silver Ice > CK2014 | 1 | $225.21 | Available to order | 1 |
| 2 | T2317057-CU Bellypan, LH, Carnival Red | Bellypan, LH, Carnival Red | 1 | $225.21 | Available to order | 1 |
| 2 | T2317057-FJ Bellypan, LH, Cosmic Yellow | Bellypan, LH, Cosmic Yellow | 1 | $225.21 | Available to order | 1 |
| 2 | T2317057-PR Bellypan, LH, Phantom Black | Bellypan, LH, Phantom Black | 1 | $225.21 | Out of Stock | Notify Me |
| 2 | T2317057-LE Bellypan, LH, Granite | Bellypan, LH, Granite CK2015 > | 1 | $14.36 | Backorder — Late July 2026 | 1 |
| 3 | T2317056 Panel, Bellypan, Centre | Panel, Bellypan, Centre | 1 | $46.19 | Available to order | 1 |
| 4 | T2317061 Bracket, Bellypan, RHF | Bracket, Bellypan, RHF | 4 | $18.14 | Out of Stock | Notify Me |
| 5 | T2317062 Bracket, Bellypan, LHF | Bracket, Bellypan, LHF | 4 | $18.14 | Available to order | 4 |
| 6 | T2313085 Clip, Bodywork | Clip, Bodywork | 2 | $2.45 | Available to order | 2 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 8 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $6.73 | Available to order | 4 |
| 9 | T3331075 Bolt, But/Hd, M5 x 14, Slv | Bolt, But/Hd, M5 x 14, Slv | 2 | $5.02 | Available to order | 2 |
| 10 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.75 | Available to order | 4 |
| 11 | T2316486 Decal, Bellypan, RH, Orange | Decal, Bellypan, RH, Orange Fitted to Silver Ice Bellypan > CK2014 | 1 | $40.93 | Available to order | 1 |
| 11 | T2316732 Decal, Bellypan, RH, Black | Decal, Bellypan, RH, Black Fitted to Carnival Red & Cosmic Yellow Bellypan | 1 | $40.93 | Available to order | 1 |
| 11 | T2316622 Decal, Bellypan, RH, Ash Grey | Decal, Bellypan, RH, Ash Grey Fitted to Phantom Black Bellypan | 1 | $40.93 | Out of Stock | Notify Me |
| 11 | T2315314 Decal, Bellypan, RH, Kingfisher Blue | Decal, Bellypan, RH, Kingfisher Blue Fitted to Granite Bellypan - CK2015 > | 1 | $21.56 | Out of Stock | Notify Me |
| 12 | T2316487 Decal, Bellypan, LH, Orange | Decal, Bellypan, LH, Orange Fitted to Silver Ice Bellypan > CK2014 | 1 | $40.93 | Available to order | 1 |
| 12 | T2316733 Decal, Bellypan, LH, Black | Decal, Bellypan, LH, Black Fitted to Carnival Red & Cosmic Yellow Bellypan | 1 | $40.93 | Available to order | 1 |
| 12 | T2316623 Decal, Bellypan, LH, Ash Grey | Decal, Bellypan, LH, Ash Grey Fitted to Phantom Black Bellypan | 1 | $40.93 | Out of Stock | Notify Me |
| 12 | T2315313 Decal, Bellypan, LH, Kingfisher Blue | Decal, Bellypan, LH, Kingfisher Blue Fitted to Granite Bellypan - CK2015 > | 1 | $21.56 | Out of Stock | Notify Me |
