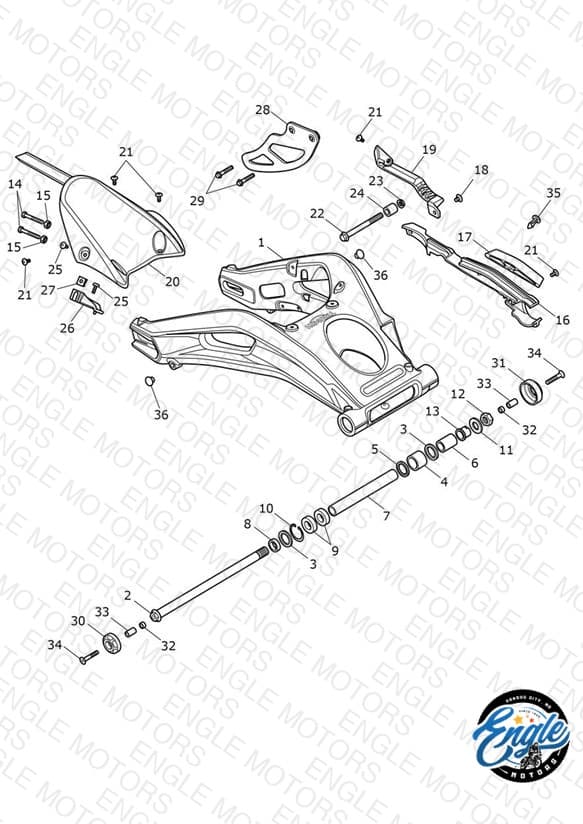

Rear Swingarm
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050274 Swingarm Assembly | Swingarm Assembly Includes items 3, 4, 5, 7, 9 & 10 | 1 | $1329.09 | Available to order | 1 |
| 2 | T2050460 Spindle, Swingarm | Spindle, Swingarm | 1 | $100.76 | Available to order | 1 |
| 3 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 2 | $10.44 | Available to order | 2 |
| 4 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 5 | T3600170 Seal, SD 25 32 04 | Seal, SD 25 32 04 | 1 | $13.51 | Available to order | 1 |
| 6 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 7 | T2051520 Spacer, Internal, 22 x184 | Spacer, Internal, 22 x184 | 1 | $42.41 | Available to order | 1 |
| 8 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 9 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 10 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 11 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 1 | $2.63 | Available to order | 1 |
| 12 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 13 | T2051010 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $24.43 | Available to order | 1 |
| 14 | T3203204 Screw, H/Hd, M8 x 55, Slv | Screw, H/Hd, M8 x 55, Slv | 2 | $2.34 | Available to order | 2 |
| 15 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 16 | T2057441 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $46.76 | Available to order | 1 |
| 17 | T2057962 Rubber, Chain Rubbing Strip | Rubber, Chain Rubbing Strip | 1 | $17.88 | Available to order | 1 |
| 18 | T3450299 Firtree, M6 | Firtree, M6 | 1 | $3.33 | Available to order | 1 |
| 19 | T2050406 Rubbing Strip, Upper, Chain | Rubbing Strip, Upper, Chain | 1 | $18.75 | Available to order | 1 |
| 20 | T2057949 Hugger, Chainguard | Hugger, Chainguard | 1 | $82.73 | Available to order | 1 |
| 21 | T3331078 Bolt, But/Hd, M5 x 14, Shld, Slv | Bolt, But/Hd, M5 x 14, Shld, Slv | 5 | $8.65 | Available to order | 5 |
| 22 | T3205853 Bolt, HHF, M10 x 110, Slv | Bolt, HHF, M10 x 110, Slv | 1 | $8.25 | Available to order | 1 |
| 23 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 1 | $4.16 | Available to order | 1 |
| 24 | T2050382 Sleeve, 10 x 20 x 21.5 | Sleeve, 10 x 20 x 21.5 | 1 | $19.75 | Available to order | 1 |
| 25 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 26 | T2308062 Hugger Mount Bracket | Hugger Mount Bracket | 1 | $12.94 | Backorder — Late September 2026 | 1 |
| 27 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv | 1 | $2.37 | Available to order | 1 |
| 28 | T2052013 Chain Guard, Lower | Chain Guard, Lower | 1 | $74.23 | Available to order | 1 |
| 29 | T3330893 Bolt, RHHF, M5 x 25, S5041 | Bolt, RHHF, M5 x 25, S5041 | 2 | $1.13 | Available to order | 2 |
| 30 | T2052066 Finisher, Spindle, Swingarm, RH | Finisher, Spindle, Swingarm, RH | 1 | $22.14 | Available to order | 1 |
| 31 | T2052067 Finisher, Spindle, Swingarm, LH | Finisher, Spindle, Swingarm, LH | 1 | $22.14 | Available to order | 1 |
| 32 | T3350196 Nut, M8, Cylindrical | Nut, M8, Cylindrical | 2 | $4.55 | Available to order | 2 |
| 33 | T2050376 Tube, ID 5.2, OD 7.5, 14 Long | Tube, ID 5.2, OD 7.5, 14 Long | 2 | $18.16 | Available to order | 2 |
| 34 | T3330678 Screw, Csk, M5 x 30, S/S | Screw, Csk, M5 x 30, S/S | 2 | $3.33 | Available to order | 2 |
| 35 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 1 | $1.21 | Available to order | 1 |
| 36 | T3700180 Plug, Hole, Plastic | Plug, Hole, Plastic | 2 | $2.55 | Available to order | 2 |
