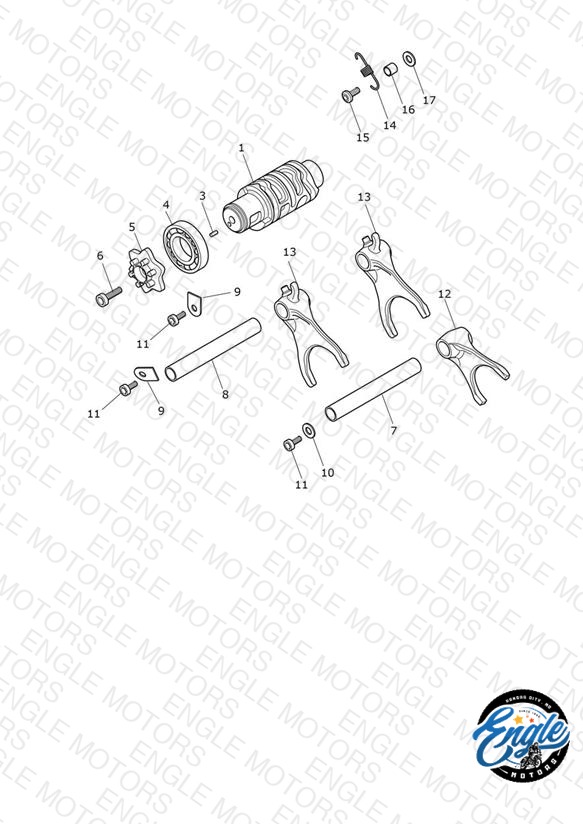

Gear Selector Drum
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1193334 Selector Drum | Selector Drum | 1 | $363.25 | Available to order | 1 |
| 3 | T3000192 Dowel, 4mm | Dowel, 4mm | 1 | $1.94 | Available to order | 1 |
| 4 | T1190286 Bearing, Ball | Bearing, Ball | 1 | $48.95 | Out of Stock | Notify Me |
| 5 | T1193335 Detent Wheel | Detent Wheel | 1 | $44.96 | Out of Stock | Notify Me |
| 6 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 1 | $1.21 | Available to order | 1 |
| 7 | T1197003 Selector Shaft, Input Gear | Selector Shaft, Input Gear | 1 | $160.46 | Available to order | 1 |
| 8 | T1197004 Selector Shaft, Output Gear | Selector Shaft, Output Gear | 1 | $157.79 | Available to order | 1 |
| 9 | T1190207 Keeper Plate | Keeper Plate | 2 | $20.60 | Out of Stock | Notify Me |
| 10 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 1 | $4.12 | Available to order | 1 |
| 11 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 3 | $1.27 | Available to order | 3 |
| 12 | T1192355 Selector Fork, Input, Moly | Selector Fork, Input, Moly | 1 | $107.90 | Available to order | 1 |
| 13 | T1192366 Selector Fork, Output | Selector Fork, Output | 2 | $96.78 | Available to order | 2 |
| 14 | T1190109 Spring, Linear, Detent Arm | Spring, Linear, Detent Arm | 1 | $5.14 | Available to order | 1 |
| 15 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 16 | T3000042 Spacer, Turned | Spacer, Turned | 1 | $1.72 | Available to order | 1 |
| 17 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
