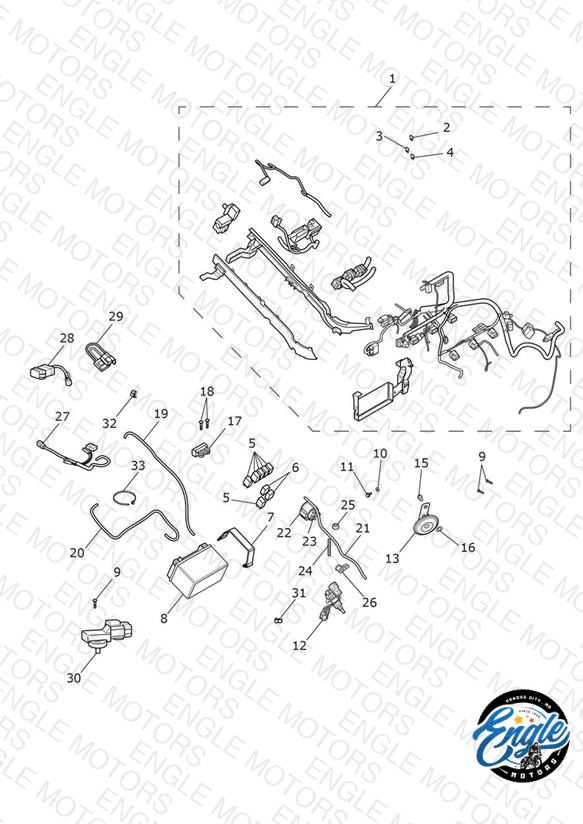

Electrical Equipment
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2507659 Main Harness, TFT | Main Harness, TFT | 1 | $818.56 | Out of Stock | Notify Me |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 3 | $4.74 | Backorder — Early August 2026 | 3 |
| 3 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 3 | $4.74 | Available to order | 3 |
| 4 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 5 | $4.74 | Out of Stock | Notify Me |
| 5 | T2507727 Relay, Normally Open | Relay, Normally Open Horn, Fuel Pump, Cooling Fan, Starter, ECU & Headlight | 6 | $20.12 | Available to order | 6 |
| 6 | T2507728 Relay, Changeover | Relay, Changeover Rear Brake Switch & Dip/Main Beam | 2 | $18.50 | Available to order | 2 |
| 7 | T2501740 Battery Strap | Battery Strap | 1 | $9.97 | Available to order | 1 |
| 8 | T2500183 Battery | Battery All Markets Except EF/ER/GR/BR | 1 | $125.34 | Available to order | 1 |
| 8 | T2504606 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $120.89 | Out of Stock | Notify Me |
| 8 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF/ER/GR Markets Only | 1 | $116.06 | Out of Stock | Notify Me |
| 9 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 3 | $2.17 | Available to order | 3 |
| 10 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 1 | $0.97 | Available to order | 1 |
| 11 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.24 | Available to order | 1 |
| 12 | T2507820 Subharness, Engine | Subharness, Engine | 1 | $93.14 | Available to order | 1 |
| 13 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone | 1 | $41.82 | Available to order | 1 |
| 15 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 16 | T3551128 Washer, Serrated Lock, M8 | Washer, Serrated Lock, M8 | 1 | $1.79 | Available to order | 1 |
| 17 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $84.58 | Available to order | 1 |
| 18 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.74 | Available to order | 2 |
| 19 | T2501704 Earth Lead | Earth Lead | 1 | $10.28 | Available to order | 1 |
| 20 | T2501788 Lead, Battery, Positive | Lead, Battery, Positive | 1 | $15.19 | Available to order | 1 |
| 21 | T2501786 Starter Lead | Starter Lead | 1 | $12.63 | Available to order | 1 |
| 22 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 23 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 24 | T3100050 Stud, M6 x 28, Enc | Stud, M6 x 28, Enc | 1 | $3.70 | Available to order | 1 |
| 26 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 1 | $11.12 | Available to order | 1 |
| 27 | T2500898 Rear Subharness, Lighting | Rear Subharness, Lighting | 1 | $85.52 | Available to order | 1 |
| 28 | T2501422 Charger, USB, 5V, 170mm | Charger, USB, 5V, 170mm | 2 | $40.59 | Available to order | 2 |
| 29 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only | 1 | $25.34 | Available to order | 1 |
| 30 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 31 | T3700061 Clip, Cable Double | Clip, Cable Double | 1 | $5.30 | Available to order | 1 |
| 32 | T3700193 Clip, Double, Firtree | Clip, Double, Firtree | 1 | $1.13 | Available to order | 1 |
| 33 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
