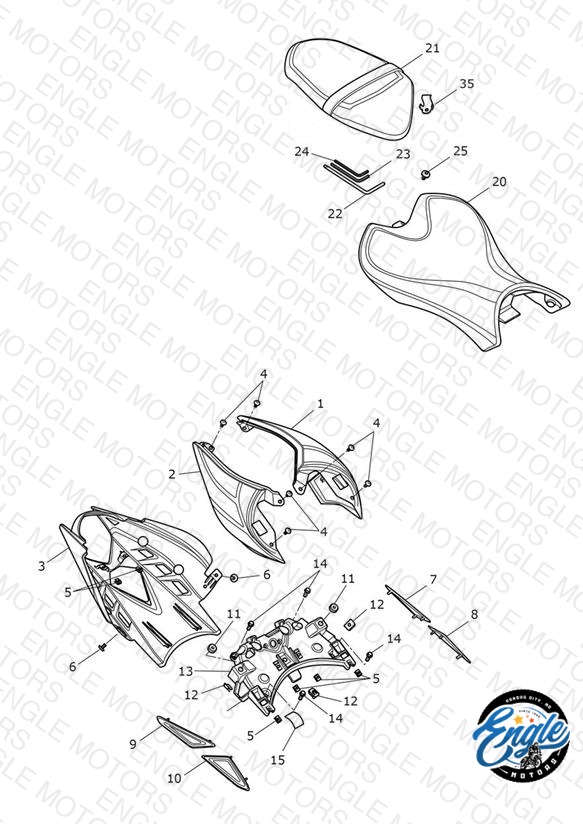

Loading schematic...
Rear Bodywork & Seat
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2303734-CW Rear Bodywork, Paint & Dec, LH | Rear Bodywork, Paint & Dec, LH Diablo Red | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 1 | T2303831-PR Rear Bodywork, Paint & Dec, LH | Rear Bodywork, Paint & Dec, LH Phantom Black | 1 | $336.75 | Available to order | 1 |
| 2 | T2303737-CW Rear Bodywork, Paint & Dec, RH | Rear Bodywork, Paint & Dec, RH Diablo Red | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 2 | T2303832-PR Rear Bodywork, Paint & Dec, RH | Rear Bodywork, Paint & Dec, RH Phantom Black | 1 | $279.90 | Available to order | 1 |
| 3 | T2303744 Undertray Moulding | Undertray Moulding | 1 | $93.14 | Available to order | 1 |
| 4 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 6 | $4.92 | Available to order | 6 |
| 5 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 6 | $4.55 | Backorder — Late August 2026 | 6 |
| 6 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.42 | Available to order | 2 |
| 7 | T2303943 Rear Frame Infill, LH, Rear | Rear Frame Infill, LH, Rear | 1 | $27.19 | Available to order | 1 |
| 8 | T2303944 Rear Frame Infill, LH, Front | Rear Frame Infill, LH, Front | 1 | $27.19 | Backorder — Late August 2026 | 1 |
| 9 | T2303946 Rear Frame Infill, RH, Rear | Rear Frame Infill, RH, Rear | 1 | $27.19 | Backorder — Early November 2026 | 1 |
| 10 | T2303947 Rear Frame Infill, RH, Front | Rear Frame Infill, RH, Front | 1 | $27.19 | Available to order | 1 |
| 11 | T2307369 Rubber Foot, 4mm Deep | Rubber Foot, 4mm Deep | 2 | $3.70 | Available to order | 2 |
| 12 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 3 | $4.92 | Backorder — Early August 2026 | 3 |
| 13 | T2070384 Bridge, Seat, Moulding | Bridge, Seat, Moulding | 1 | $46.76 | Available to order | 1 |
| 14 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 15 | T3660175 Rubber Pad, 30 x 45 x 3 | Rubber Pad, 30 x 45 x 3 | 1 | $5.78 | Available to order | 1 |
| 17 | T2303760 Decal, Rear Bodywork | Decal, Rear Bodywork Fitted to Red Bikes | 2 | $39.06 | Backorder — Mid August 2026 | 2 |
| 17 | T2303765 Decal, Rear Bodywork | Decal, Rear Bodywork Fitted to Black Bikes | 2 | $39.06 | Available to order | 2 |
| 20 | T2303713 Rider Seat Assy | Rider Seat Assy | 1 | $268.08 | Available to order | 1 |
| 21 | T2303717 Pillion Seat | Pillion Seat | 1 | $203.41 | Available to order | 1 |
| 22 | T2301364 Wrench, 124 x 54, Slot & Cross | Wrench, 124 x 54, Slot & Cross | 1 | $4.92 | Available to order | 1 |
| 23 | T2300634 Allen Key, 5mm | Allen Key, 5mm | 1 | $4.92 | Available to order | 1 |
| 24 | T2300912 Allen Key, 4.0mm | Allen Key, 4.0mm | 1 | $4.64 | Available to order | 1 |
| 35 | T2304424 Clamp, Seat Strap | Clamp, Seat Strap | 1 | $31.47 | Available to order | 1 |
