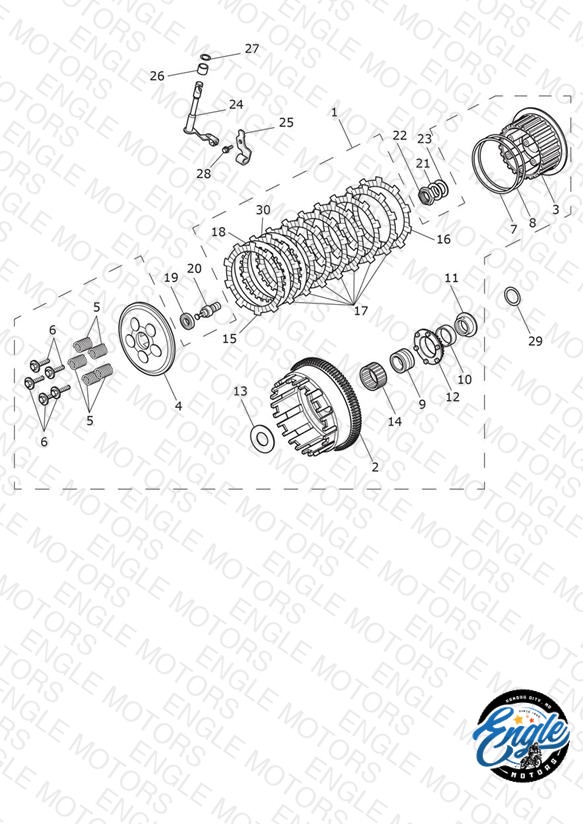

Loading schematic...
Clutch
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170333 Clutch Assy, Spares | Clutch Assy, Spares | 1 | $1130.41 | Backorder — Late July 2026 | 1 |
| 2 | T1170183 Clutch Outer, Spares Assembly | Clutch Outer, Spares Assembly | 1 | $880.65 | Available to order | 1 |
| 3 | T1174200 Centre, Clutch | Centre, Clutch | 1 | $153.98 | Available to order | 1 |
| 4 | T1174600 Plate, Clutch Pressure | Plate, Clutch Pressure | 1 | $146.35 | Out of Stock | Notify Me |
| 5 | T1170176 Spring, Clutch | Spring, Clutch | 5 | $6.14 | Available to order | 5 |
| 6 | T1170740 Bolt, Hex Head, M6 x 50 | Bolt, Hex Head, M6 x 50 | 5 | $2.00 | Available to order | 5 |
| 7 | T1170172 Spring, Judder | Spring, Judder | 1 | $19.65 | Available to order | 1 |
| 8 | T1170173 Seat, Judder Spring | Seat, Judder Spring | 1 | $21.51 | Available to order | 1 |
| 9 | T1174800 Bush, Clutch | Bush, Clutch | 1 | $54.20 | Available to order | 1 |
| 10 | T1175200 Bearing, Needle, K32 x 37 x 13 | Bearing, Needle, K32 x 37 x 13 | 1 | $19.57 | Available to order | 1 |
| 11 | T1174900 Bush, Sprocket | Bush, Sprocket | 1 | $8.46 | Out of Stock | Notify Me |
| 12 | T1170818 Clutch Sprocket, 27T, Silent | Clutch Sprocket, 27T, Silent | 1 | $338.02 | Backorder — Late July 2026 | 1 |
| 13 | T1174700 Washer, 25.5 x 53 x 2 | Washer, 25.5 x 53 x 2 | 1 | $10.18 | Available to order | 1 |
| 14 | T1175100 Bearing, Clutch, 40 x 45 x 22 | Bearing, Clutch, 40 x 45 x 22 | 1 | $40.67 | Available to order | 1 |
| 15 | T1170276 Disc, Friction, Clutch A | Disc, Friction, Clutch A | 1 | $29.97 | Available to order | 1 |
| 16 | T1170278 Disc, Friction, Clutch B | Disc, Friction, Clutch B | 1 | $46.64 | Out of Stock | Notify Me |
| 17 | T1174400 Disc, Friction, Clutch A | Disc, Friction, Clutch A | 7 | $29.97 | Backorder — Early August 2026 | 7 |
| 18 | T1170170 Plate, Clutch A | Plate, Clutch A | 2 | $22.92 | Available to order | 2 |
| 19 | T1170067 Bearing, Pressure Plate | Bearing, Pressure Plate | 1 | $33.23 | Available to order | 1 |
| 20 | T1172080 Lifter Piece, Clutch | Lifter Piece, Clutch | 1 | $42.57 | Available to order | 1 |
| 21 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 22 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $13.51 | Available to order | 1 |
| 23 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.64 | Available to order | 1 |
| 24 | T1176199 Clutch Lifter Arm | Clutch Lifter Arm | 1 | $40.97 | Available to order | 1 |
| 25 | T1170182 Bracket, Clutch | Bracket, Clutch | 1 | $12.04 | Available to order | 1 |
| 26 | T1170666 Spring | Spring | 1 | $5.98 | Available to order | 1 |
| 27 | T3555014 Washer, 13 x 18 x 1 | Washer, 13 x 18 x 1 | 1 | $1.27 | Backorder — Mid August 2026 | 1 |
| 28 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 29 | T3555018 Washer, 25 x 35 x 1.75 | Washer, 25 x 35 x 1.75 | 1 | $15.60 | Available to order | 1 |
| 30 | T1170277 Plate, Clutch | Plate, Clutch | 6 | $22.92 | Available to order | 6 |
