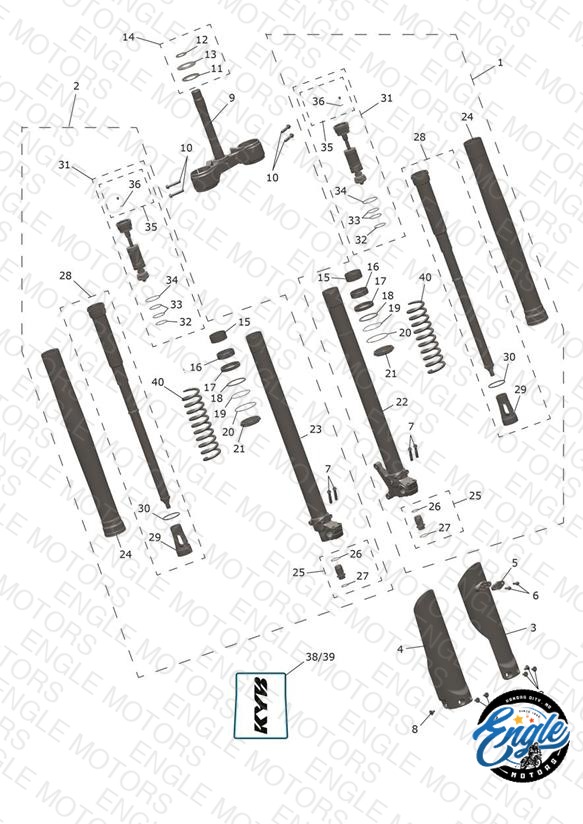

Triumph TF250-E Front Forks & Lower Yoke — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2043173 Front Fork, LH, EN	Front Fork, LH, EN This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts	1	$1339.96	Available to order	1 Ships within 3–7 business days
2	T2043174 Front Fork, RH, EN	Front Fork, RH, EN This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts	1	$1329.48	Available to order	1 Ships within 3–7 business days
3	T2044728 Guard, Fork Mldg, LH	Guard, Fork Mldg, LH	1	$34.87	Available to order	1 Ships within 3–7 business days
4	T2044727 Guard, Fork Mldg, RH	Guard, Fork Mldg, RH	1	$34.87	Available to order	1 Ships within 3–7 business days
5	T2044686 Clamp, Brake Hose	Clamp, Brake Hose	1	$4.45	Backorder — Mid August 2026	1
6	T3336102 Screw, S/Tap, HHF, 6 x 20, PT	Screw, S/Tap, HHF, 6 x 20, PT	2	$2.74	Available to order	2 Ships within 3–7 business days
7	T3200885 Bolt, TX Lghtd, M8 x 35, Slv	Bolt, TX Lghtd, M8 x 35, Slv Not included in Fork Assembly	4	$3.56	Available to order	4 Ships within 3–7 business days
8	T3201071 Bolt, TX, Shld, M x 12, Slv	Bolt, TX, Shld, M x 12, Slv	6	$2.67	Out of Stock	Notify Me
9	T2043937 Lower Yoke Assy, Locking	Lower Yoke Assy, Locking	1	$502.03	Available to order	1 Ships within 3–7 business days
10	T3200886 Bolt, TX, Lghtd, M8 x 40, Slv	Bolt, TX, Lghtd, M8 x 40, Slv	4	$3.56	Available to order	4 Ships within 3–7 business days
11	T3602516 Seal, Headstock, Lower	Seal, Headstock, Lower	1	$6.23	Available to order	1 Ships within 3–7 business days
12	T2043810 O Ring, ID 25 x 3.5	O Ring, ID 25 x 3.5	1	$1.78	Available to order	1 Ships within 3–7 business days
13	T3602517 Seal, Headstock, Upper	Seal, Headstock, Upper	1	$6.23	Available to order	1 Ships within 3–7 business days
14	T2044356 Bearing Kit, Headstock	Bearing Kit, Headstock Also Contains 2 x T3800610	1	$53.68	Available to order	1 Ships within 3–7 business days
15	T2045320 Bush, Inner Tube	Bush, Inner Tube	2	$11.58	Available to order	2 Ships within 3–7 business days
16	T2045315 Bush, Outer Tube	Bush, Outer Tube	2	$9.50	Available to order	2 Ships within 3–7 business days
17	T2045317 Oil Seal	Oil Seal	2	$16.07	Available to order	2 Ships within 3–7 business days
18	T2045316 Washer, Oil Seal	Washer, Oil Seal	2	$2.38	Available to order	2 Ships within 3–7 business days
19	T2045318 Snap Ring, Oil Seal	Snap Ring, Oil Seal	2	$3.17	Available to order	2 Ships within 3–7 business days
20	T2045314 Snap Ring	Snap Ring	2	$3.17	Available to order	2 Ships within 3–7 business days
21	T2045319 Dust Seal	Dust Seal	2	$15.07	Available to order	2 Ships within 3–7 business days
22	T2045321 Tube, Inner, LH	Tube, Inner, LH	1	$330.32	Available to order	1 Ships within 3–7 business days
23	T2045322 Tube, Inner, RH	Tube, Inner, RH	1	$316.75	Available to order	1 Ships within 3–7 business days
24	T2045313 Outer Tube	Outer Tube	2	$434.36	Available to order	2 Ships within 3–7 business days
25	T2045323 Bolt, Cartridge Assembly	Bolt, Cartridge Assembly	2	$38.91	Available to order	2 Ships within 3–7 business days
26	T2045324 Sealing Washer	Sealing Washer	2	$4.58	Available to order	2 Ships within 3–7 business days
27	T2045325 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
28	T2045347 Cartridge Assembly	Cartridge Assembly	2	$392.47	Available to order	2 Ships within 3–7 business days
29	T2045331 Spring Seat, Upper	Spring Seat, Upper	2	$34.65	Available to order	2 Ships within 3–7 business days
30	T2045333 O Ring	O Ring	2	$4.58	Available to order	2 Ships within 3–7 business days
31	T2045348 Base Valve Assembly	Base Valve Assembly	2	$222.72	Available to order	2 Ships within 3–7 business days
32	T2045335 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
33	T2045336 O Ring	O Ring	4	$1.41	Available to order	4 Ships within 3–7 business days
34	T2045337 O Ring	O Ring	2	$1.69	Available to order	2 Ships within 3–7 business days
35	T2045338 Bleed Screw Assembly	Bleed Screw Assembly	2	$5.57	Available to order	2 Ships within 3–7 business days
36	T2045339 O Ring	O Ring	2	$1.41	Available to order	2 Ships within 3–7 business days
38	T2046584 Fork Decal, RH	Fork Decal, RH	1	$27.98	Available to order	1 Ships within 3–7 business days
39	T2046587 Fork Decal, LH	Fork Decal, LH	1	$27.98	Available to order	1 Ships within 3–7 business days
40	T2048912 Spring Kit, Front Fork, K4.2	Spring Kit, Front Fork, K4.2	2	$86.22	Available to order	2 Ships within 3–7 business days
40	T2048913 Spring Kit , Front Fork, K4.3	Spring Kit , Front Fork, K4.3	2	$86.22	Available to order	2 Ships within 3–7 business days
40	T2048914 Spring Kit, Front Fork, K4.4	Spring Kit, Front Fork, K4.4	2	$86.22	Available to order	2 Ships within 3–7 business days
40	T2048916 Spring Kit, Front Fork, K4.5	Spring Kit, Front Fork, K4.5	2	$105.45	Available to order	2 Ships within 3–7 business days
40	T2048917 Spring Kit, Front Fork, K4.6	Spring Kit, Front Fork, K4.6	2	$105.45	Available to order	2 Ships within 3–7 business days
40	T2048918 Spring Kit, Front Fork, K4.7	Spring Kit, Front Fork, K4.7	2	$105.45	Available to order	2 Ships within 3–7 business days
41	T2045342 Fork Bush Kit	Fork Bush Kit Contains item 15 & 16	1	$25.92	Available to order	1 Ships within 3–7 business days
42	T2045341 Fork Seal Kit	Fork Seal Kit Contains item 17 & 21	1	$37.80	Available to order	1 Ships within 3–7 business days
