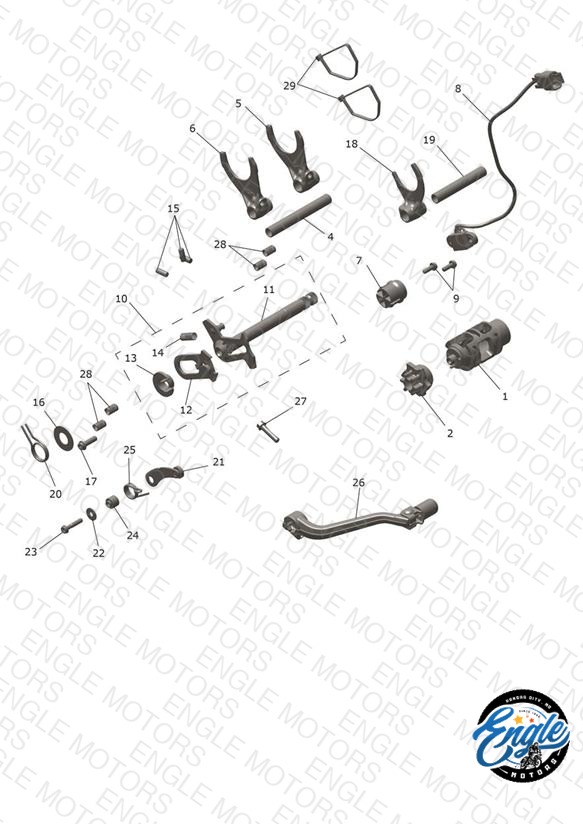

Loading schematic...
Gear Selectors & Pedal
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190353 Drum, Gear Selector | Drum, Gear Selector | 1 | $95.87 | Available to order | 1 |
| 2 | T1190223 Selector Star, Shift Mechanism | Selector Star, Shift Mechanism | 1 | $114.94 | Available to order | 1 |
| 4 | T1190283 Shaft, Selector, Output | Shaft, Selector, Output | 1 | $19.02 | Available to order | 1 |
| 5 | T1190386 Fork Selector, Output, Left | Fork Selector, Output, Left | 1 | $74.58 | Available to order | 1 |
| 6 | T1190385 Fork Selector, Output, Right | Fork Selector, Output, Right | 1 | $95.58 | Available to order | 1 |
| 7 | T1190182 Selector Drum Magnet | Selector Drum Magnet | 1 | $44.40 | Available to order | 1 |
| 8 | T2502960 Sensor, Gear Position Assembly | Sensor, Gear Position Assembly | 1 | $133.20 | Available to order | 1 |
| 9 | T3200552 Bolt, TX, M5 x 14, Enc | Bolt, TX, M5 x 14, Enc | 2 | $2.67 | Available to order | 2 |
| 10 | T1190347 Gear Selector Shaft Assembly | Gear Selector Shaft Assembly | 1 | $136.50 | Available to order | 1 |
| 11 | T1190348 Shaft, Gear Selector | Shaft, Gear Selector | 1 | $117.10 | Available to order | 1 |
| 12 | T1190403 Slider, Gear Selector Assy | Slider, Gear Selector Assy | 1 | $14.36 | Available to order | 1 |
| 13 | T1190341 Retainer, Gear Selector | Retainer, Gear Selector | 1 | $2.52 | Available to order | 1 |
| 14 | T1190342 Spring, Gear Selector | Spring, Gear Selector | 1 | $2.52 | Available to order | 1 |
| 15 | T3000122 Pin, 6 x 14.8 | Pin, 6 x 14.8 | 3 | $1.85 | Available to order | 3 |
| 16 | T3550356 Washer, 14 x 30 x 1 | Washer, 14 x 30 x 1 | 1 | $2.67 | Available to order | 1 |
| 17 | T3200676 Bolt, Lghtd, M6 x 25, Enc | Bolt, Lghtd, M6 x 25, Enc | 1 | $1.96 | Available to order | 1 |
| 18 | T1190383 Fork Selector, Input | Fork Selector, Input | 1 | $59.69 | Available to order | 1 |
| 19 | T1190233 Shaft, Selector, Input | Shaft, Selector, Input | 1 | $19.02 | Available to order | 1 |
| 20 | T1190351 Spring, Selector Mechanism Return | Spring, Selector Mechanism Return | 1 | $8.75 | Available to order | 1 |
| 21 | T1190327 Detent Arm Assy | Detent Arm Assy | 1 | $26.65 | Available to order | 1 |
| 22 | T3550354 Washer, M5 x 1.2, DIN9092 | Washer, M5 x 1.2, DIN9092 | 1 | $3.81 | Available to order | 1 |
| 23 | T3200556 Bolt, TX, M5 x 0.8 x 25, Enc | Bolt, TX, M5 x 0.8 x 25, Enc | 1 | $2.67 | Available to order | 1 |
| 24 | T1190452 Spacer, Detent Arm | Spacer, Detent Arm | 1 | $5.07 | Available to order | 1 |
| 25 | T1190354 Spring, Detent Arm | Spring, Detent Arm | 1 | $5.42 | Available to order | 1 |
| 26 | T2088961 Gear Pedal Assembly, 95mm | Gear Pedal Assembly, 95mm | 1 | $35.52 | Available to order | 1 |
| 27 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 1 | $2.46 | Available to order | 1 |
| 28 | T1190189 Spring, Shift Fork Shaft | Spring, Shift Fork Shaft | 4 | $2.67 | Available to order | 4 |
| 29 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long Not illustrated | 2 | $0.89 | Available to order | 2 |
