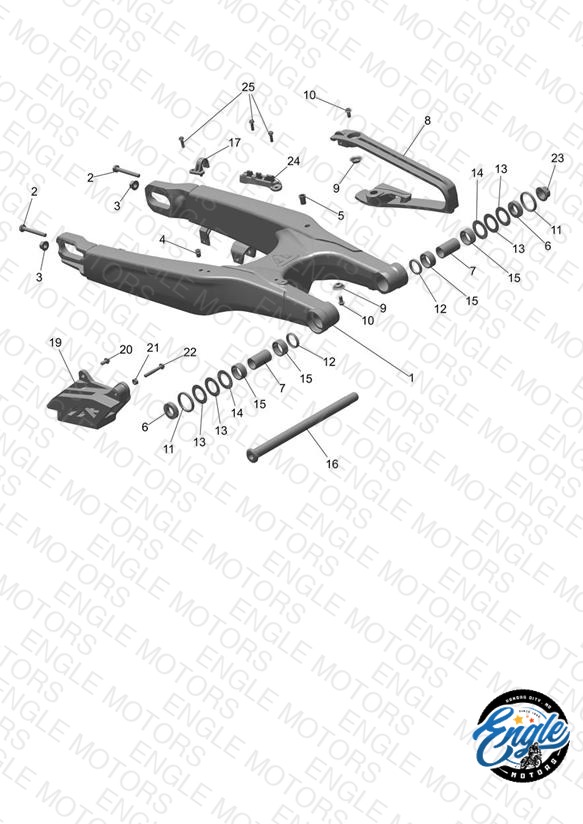

Swinging Arm
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2051612 Swingarm Assembly Short | Swingarm Assembly Short Contains items 2 to 15 inclusive | 1 | $1173.43 | Available to order | 1 |
| 2 | T3203204 Screw, H/Hd, M8 x 55, Slv | Screw, H/Hd, M8 x 55, Slv | 2 | $2.34 | Available to order | 2 |
| 3 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 4 | T3010985 Rivnut, M5 x 0.8, Hex | Rivnut, M5 x 0.8, Hex | 1 | $1.33 | Available to order | 1 |
| 5 | T3350219 Threaded Insert | Threaded Insert | 1 | $3.10 | Unavailable | View Details |
| 6 | T2059229 Spacer, 17 x 30 x 7 | Spacer, 17 x 30 x 7 | 2 | $4.88 | Available to order | 2 |
| 7 | T2059230 Sleeve, 17 x 22 x 38.5 | Sleeve, 17 x 22 x 38.5 | 2 | $26.65 | Available to order | 2 |
| 8 | T2059241 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $37.68 | Available to order | 1 |
| 9 | T2311740 Washer, Domed, OD22, ID6.6 | Washer, Domed, OD22, ID6.6 | 2 | $6.23 | Available to order | 2 |
| 10 | T3200669 Bolt, TX, Lghtd, M6 x 12, Enc | Bolt, TX, Lghtd, M6 x 12, Enc | 2 | $3.56 | Available to order | 2 |
| 11 | T3600580 Seal, 30 x 37 x 4 | Seal, 30 x 37 x 4 | 2 | $3.30 | Available to order | 2 |
| 12 | T3600590 Seal, 22 x 28 x 4 | Seal, 22 x 28 x 4 | 2 | $1.94 | Available to order | 2 |
| 13 | T3803113 Thrust Washer, 22 x 36 x 1 | Thrust Washer, 22 x 36 x 1 | 4 | $4.88 | Available to order | 4 |
| 14 | T3803013 Bearing, Thrust, 22 x 36 x 2.5 | Bearing, Thrust, 22 x 36 x 2.5 | 2 | $13.33 | Available to order | 2 |
| 15 | T3803014 Bearing, Needle Roller, 22 x 28 x 12 | Bearing, Needle Roller, 22 x 28 x 12 | 4 | $17.77 | Available to order | 4 |
| 16 | T2057654 Spindle, M16 | Spindle, M16 | 1 | $79.92 | Available to order | 1 |
| 17 | T2059232 Hose Clip | Hose Clip | 1 | $5.32 | Available to order | 1 |
| 19 | T2050959 Chain Guide, Lower | Chain Guide, Lower | 1 | $51.73 | Available to order | 1 |
| 20 | T3200672 Bolt, TX, Lghtd, M6 x 14, Enc | Bolt, TX, Lghtd, M6 x 14, Enc | 1 | $2.67 | Available to order | 1 |
| 21 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 22 | T3200666 Bolt, TX, Lgtnd, M6 x 40, Slv | Bolt, TX, Lgtnd, M6 x 40, Slv | 1 | $2.67 | Available to order | 1 |
| 23 | T2050749 Nut, Thin, M16 | Nut, Thin, M16 | 1 | $6.65 | Available to order | 1 |
| 24 | T2059240 Clip, Brake Hose, Rear, Mldg | Clip, Brake Hose, Rear, Mldg | 1 | $5.23 | Available to order | 1 |
| 25 | T3200553 Bolt, TX, M5 x 16, Enc | Bolt, TX, M5 x 16, Enc | 3 | $2.09 | Available to order | 3 |
| 30 | T2051613 Rubbing Strip Kit | Rubbing Strip Kit Contains items 8, 9 & 10 | 1 | $36.81 | Available to order | 1 |
| 31 | T2051614 Bearing Kit, Swingarm | Bearing Kit, Swingarm Contains items 6,7,11,12,13,14 & 15 | 1 | $83.20 | Available to order | 1 |
| 32 | T2050961 Guide Chain Spares Kit | Guide Chain Spares Kit Contains items 19, 20, 21 & 23 | 1 | $65.88 | Available to order | 1 |
