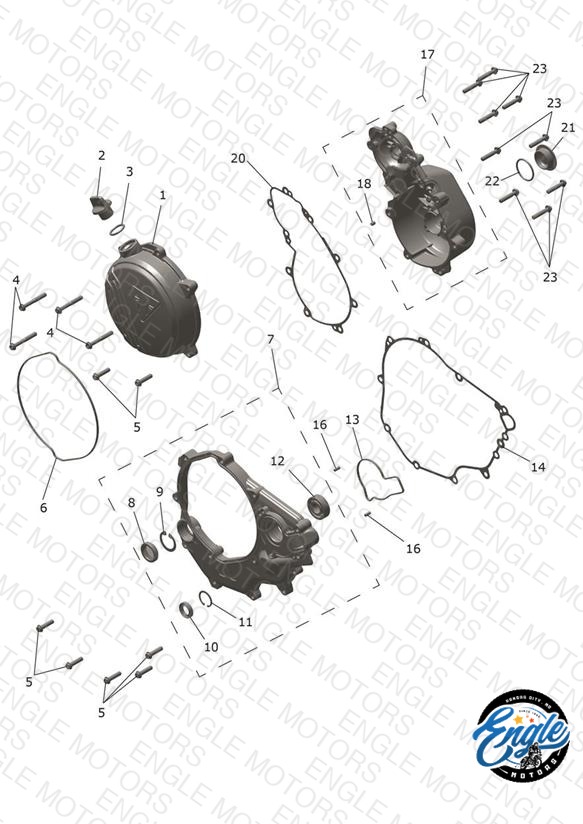

Loading schematic...
Engine Covers
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1261379 Cover, Clutch Basket | Cover, Clutch Basket | 1 | $122.12 | Available to order | 1 |
| 2 | T1260249 Oil Filler Cap | Oil Filler Cap | 1 | $21.39 | Available to order | 1 |
| 3 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 1 | $12.61 | Available to order | 1 |
| 4 | T3200673 Bolt, TX, Lghtd, M6 x 45, Slv | Bolt, TX, Lghtd, M6 x 45, Slv | 4 | $3.79 | Available to order | 4 |
| 5 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 7 | $3.56 | Available to order | 7 |
| 6 | T1261259 Seal, Formed, Clutch Cover | Seal, Formed, Clutch Cover | 1 | $5.24 | Available to order | 1 |
| 7 | T1261265 Clutch Cover, Inner, Assy | Clutch Cover, Inner, Assy Also Contains T3500092 & 2 x T3600277 | 1 | $213.12 | Available to order | 1 |
| 8 | T1261049 Sight glass | Sight glass | 1 | $17.28 | Available to order | 1 |
| 9 | T3500078 Circlip, Int Dia 81.4 x 1.2 | Circlip, Int Dia 81.4 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 10 | T3600317 Seal, Rotary, 14 x 24 x 5 | Seal, Rotary, 14 x 24 x 5 | 1 | $4.45 | Available to order | 1 |
| 11 | T3500126 Circlip, DIN472.24 x 1.2 | Circlip, DIN472.24 x 1.2 | 1 | $1.78 | Available to order | 1 |
| 12 | T3800288 Bearing, Ball, 6202, 15 x 35 x 11 | Bearing, Ball, 6202, 15 x 35 x 11 | 1 | $6.01 | Available to order | 1 |
| 13 | T2101344 Gasket, Water Pump | Gasket, Water Pump | 1 | $10.71 | Available to order | 1 |
| 14 | T1261229 Gasket, Case, RH | Gasket, Case, RH | 1 | $13.19 | Available to order | 1 |
| 16 | T3000093 Dowel, Dia 4.0 x 10 | Dowel, Dia 4.0 x 10 | 2 | $2.19 | Available to order | 2 |
| 17 | T1261295 Alternator Cover Assembly | Alternator Cover Assembly | 1 | $122.12 | Available to order | 1 |
| 18 | T3450197 Restrictor, Oil | Restrictor, Oil | 1 | $6.65 | Available to order | 1 |
| 20 | T1261254 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $7.57 | Available to order | 1 |
| 21 | T1261019 Plug, Alternator Cover | Plug, Alternator Cover | 1 | $17.77 | Available to order | 1 |
| 22 | T3600287 O Ring, 30 x 2.5 | O Ring, 30 x 2.5 | 1 | $3.10 | Available to order | 1 |
| 23 | T3200665 Bolt, TX, Lghtd, M6 x 30, Slv | Bolt, TX, Lghtd, M6 x 30, Slv | 9 | $3.56 | Available to order | 9 |
