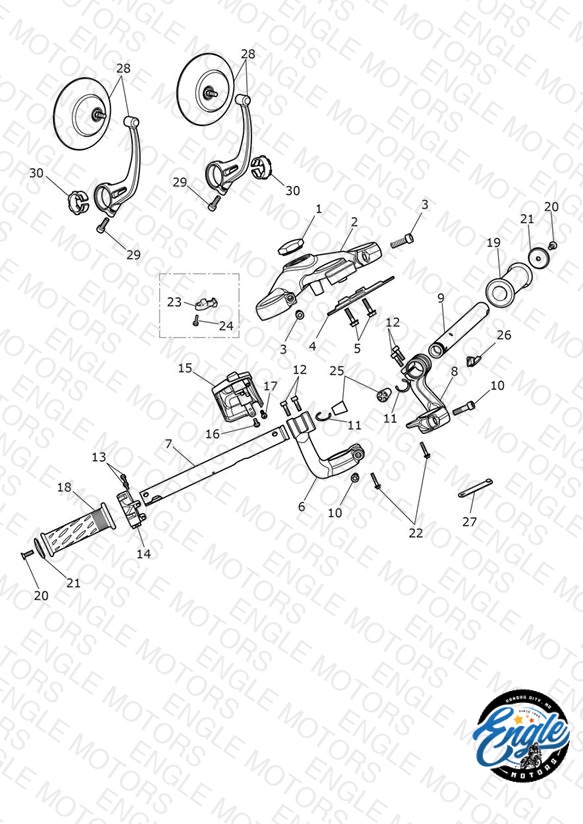

Triumph Thruxton Handlebars, Top Yoke & Mirrors — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2042135 Nut, Upper, M25, Domed	Nut, Upper, M25, Domed	1	$3.77	Backorder — Mid August 2026	1
2	T2042133 Upper Yoke	Upper Yoke	1	$279.90	Out of Stock	Notify Me
3	T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv	Screw, Cap/Hd, M8 x 1.25 x 35, Slv	2	$4.74	Available to order	2 Ships within 3–7 business days
4	T2041583 Mount, Instruments	Mount, Instruments	1	$40.87	Available to order	1 Ships within 3–7 business days
5	T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc	Screw, Pan/Hd, Tx, M6 x 25, Enc	2	$1.06	Available to order	2 Ships within 3–7 business days
6	T2041445 Riser, RH, Forged	Riser, RH, Forged	1	$133.08	Available to order	1 Ships within 3–7 business days
7	T2041366 Tube, Handlebar, 25.4	Tube, Handlebar, 25.4	1	$197.72	Available to order	1 Ships within 3–7 business days
8	T2041446 Riser, LH, Forged	Riser, LH, Forged	1	$133.08	Available to order	1 Ships within 3–7 business days
9	T2041766 Tube, Handlebar, 25.4	Tube, Handlebar, 25.4	1	$197.72	Available to order	1 Ships within 3–7 business days
11	T3500302 Circlip, Crescent, 25 x 1.2	Circlip, Crescent, 25 x 1.2	2	$3.33	Available to order	2 Ships within 3–7 business days
12	T3050334 Screw, Cap/Hd, M6 x 20, Slv	Screw, Cap/Hd, M6 x 20, Slv	4	$1.51	Available to order	4 Ships within 3–7 business days
13	T3330245 Bolt, C/Hd, Tx, M4 x 12, Slv, Enc	Bolt, C/Hd, Tx, M4 x 12, Slv, Enc	2	$11.79	Available to order	2 Ships within 3–7 business days
14	T2041554 Sensor, AP, Cruise	Sensor, AP, Cruise	1	$159.69	Available to order	1 Ships within 3–7 business days
15	T2041291 Switchcubes, RH, Modes	Switchcubes, RH, Modes Includes Front Brake Switch	1	$207.23	Available to order	1 Ships within 3–7 business days
16	T3330284 Screw, Pan/Hd, TX, M4 x 12, Black	Screw, Pan/Hd, TX, M4 x 12, Black	2	$4.30	Available to order	2 Ships within 3–7 business days
17	T3330283 Screw, Pan/Hd, Tx, M4 x 20, Blk	Screw, Pan/Hd, Tx, M4 x 20, Blk	4	$4.74	Out of Stock	Notify Me
18	T2041119 Grip, Handlebar, RH	Grip, Handlebar, RH	1	$18.16	Available to order	1 Ships within 3–7 business days
19	T2041149 Grip, Handlebar, LH	Grip, Handlebar, LH	1	$18.16	Available to order	1 Ships within 3–7 business days
20	T3330923 Screw, Csk, M6 x 20, Slv, Enc	Screw, Csk, M6 x 20, Slv, Enc	2	$2.37	Available to order	2 Ships within 3–7 business days
21	T2042492 Bar End Finisher, Clear Anodised	Bar End Finisher, Clear Anodised	2	$22.52	Available to order	2 Ships within 3–7 business days
22	T3330311 Bolt, RHHF, M5 x 20, Enc	Bolt, RHHF, M5 x 20, Enc	2	$0.57	Available to order	2 Ships within 3–7 business days
23	T2029010 Bracket, Front Brake Switch	Bracket, Front Brake Switch	1	$17.49	Available to order	1 Ships within 3–7 business days
24	T3331750 Screw, Tx, M4 x 17.5, Slv	Screw, Tx, M4 x 17.5, Slv	1	$4.30	Available to order	1 Ships within 3–7 business days
25	T3450156 Bung, Tapered, EPDM	Bung, Tapered, EPDM	1	$3.77	Available to order	1 Ships within 3–7 business days
26	T2044408 Plastic Plug, 25.4	Plastic Plug, 25.4	1	$1.40	Available to order	1 Ships within 3–7 business days
27	T3700259 Rubber Band, 43mm	Rubber Band, 43mm	1	$3.90	Available to order	1 Ships within 3–7 business days
28	T2060996 Bar End Mirror Assy, Slv	Bar End Mirror Assy, Slv	2	$169.58	Available to order	2 Ships within 3–7 business days
30	T2060251 Friction Ring, 25.4	Friction Ring, 25.4	2	$36.96	Available to order	2 Ships within 3–7 business days
