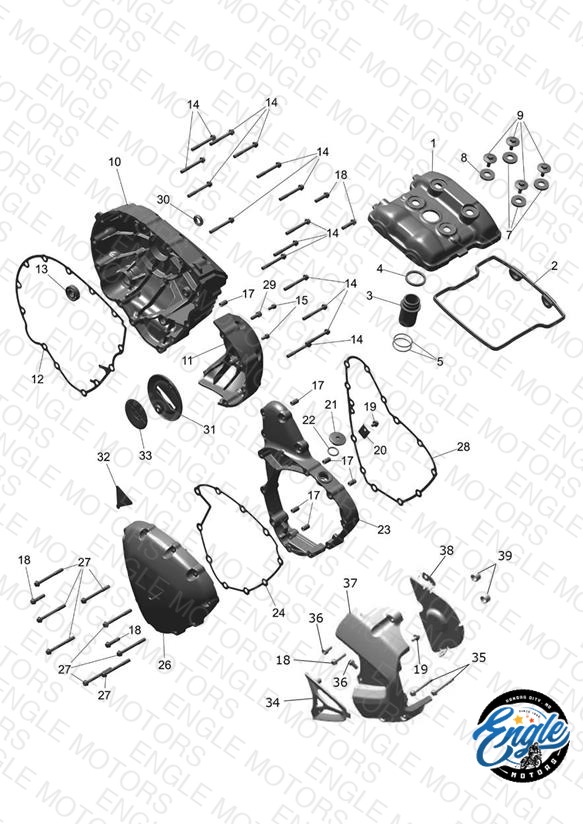

Engine Covers
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0419 Cover, Cylinder Head | Cover, Cylinder Head | 1 | $66.27 | Out of Stock | Notify Me |
| 2 | TA511018 Gasket, Cylinder Head Cover | Gasket, Cylinder Head Cover | 1 | $39.64 | Available to order | 1 |
| 3 | JY511068 Sleeve, Spark Plug | Sleeve, Spark Plug | 1 | $28.76 | Available to order | 1 |
| 4 | JY511074 Gasket, Sleeve | Gasket, Sleeve | 1 | $2.25 | Available to order | 1 |
| 5 | LJA00001 O Ring | O Ring | 2 | $1.39 | Available to order | 2 |
| 7 | JG511021 Washer | Washer | 4 | $1.39 | Available to order | 4 |
| 9 | JG511022 Bolt Special | Bolt Special | 4 | $2.16 | Available to order | 4 |
| 10 | 52TA0415 Clutch Cover Assy, TA541202 | Clutch Cover Assy, TA541202 | 1 | $137.72 | Available to order | 1 |
| 11 | 56TAZ8H4 Cover, LH, Front TA54128, Rvn Blk JN35ON | Cover, LH, Front TA54128, Rvn Blk JN35ON | 1 | $41.30 | Available to order | 1 |
| 11 | TA541265 Cover Assembly Front, LH | Cover Assembly Front, LH BR & CN Only | 1 | — | Unavailable | View Details |
| 12 | TA541204 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $12.54 | Available to order | 1 |
| 13 | KPAA6001 Bearing Ball Ordinary Clearance | Bearing Ball Ordinary Clearance | 1 | $10.43 | Available to order | 1 |
| 14 | LAE00093 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 15 | $0.91 | Available to order | 15 |
| 15 | LAC00237 Bolt, Socket, M5 x 0.8 | Bolt, Socket, M5 x 0.8 | 2 | $0.22 | Available to order | 2 |
| 17 | 39099906 Pin Dowel | Pin Dowel | 5 | $0.31 | Available to order | 5 |
| 18 | LAE00090 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 4 | $0.57 | Available to order | 4 |
| 19 | KADD0510 Bolt, Flanged, M5 x 0.8 | Bolt, Flanged, M5 x 0.8 | 1 | $0.10 | Available to order | 1 |
| 20 | TA541216 Bracket, Harness | Bracket, Harness | 1 | $2.61 | Available to order | 1 |
| 21 | JG541232 Cap Tdc Finder | Cap Tdc Finder | 1 | $4.40 | Available to order | 1 |
| 22 | 30101195 O Ring, 15.8 x 2.4 | O Ring, 15.8 x 2.4 | 1 | $0.17 | Available to order | 1 |
| 23 | 52TA0414 Cover Magneto Inner | Cover Magneto Inner | 1 | $75.12 | Available to order | 1 |
| 24 | TA541214 Gasket, Cover Magneto Outer | Gasket, Cover Magneto Outer | 1 | $8.12 | Available to order | 1 |
| 26 | 56TA41H4 Cover, Magneto Outer, TA541201 | Cover, Magneto Outer, TA541201 | 1 | $72.72 | Available to order | 1 |
| 27 | LAE00092 Bolt, Flanged, M6 x 60mm | Bolt, Flanged, M6 x 60mm | 8 | $1.01 | Available to order | 8 |
| 28 | TA541205 Gasket, Cover Magneto Inner | Gasket, Cover Magneto Inner | 1 | $10.66 | Available to order | 1 |
| 29 | KAEW0616 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.34 | Available to order | 1 |
| 30 | 39104119 Oil Seal | Oil Seal | 1 | $0.97 | Available to order | 1 |
| 31 | TA233307 Ring Decal, Triumph | Ring Decal, Triumph | 1 | $9.03 | Out of Stock | Notify Me |
| 32 | TA233001 Decal, Triumph | Decal, Triumph | 1 | $15.20 | Out of Stock | Notify Me |
| 33 | TA233005 Decal, Triumph | Decal, Triumph | 1 | $25.87 | Available to order | 1 |
| 34 | TA541235 Garnish, Cover, Rear, RH | Garnish, Cover, Rear, RH | 1 | $13.08 | Available to order | 1 |
| 35 | LAE00094 Bolt, Flgd, M6 x 1 | Bolt, Flgd, M6 x 1 | 2 | $0.81 | Available to order | 2 |
| 36 | KACF0612 Bolt, Socket, M6 x 1 | Bolt, Socket, M6 x 1 | 2 | $0.34 | Available to order | 2 |
| 37 | TA541028 Cover, Rear, RH | Cover, Rear, RH | 1 | $25.14 | Available to order | 1 |
| 38 | TA541227 Guard, Cover, Rear, RH | Guard, Cover, Rear, RH | 1 | $13.54 | Available to order | 1 |
| 39 | JY541034 Bush | Bush | 1 | $3.39 | Available to order | 1 |
| 41 | TA541222 Damper, Clutch Cover | Damper, Clutch Cover Part Not Illustrated | 1 | $18.08 | Backorder — Late July 2026 | 1 |
| 42 | TA541221 Plate, Damper, Clutch Cover | Plate, Damper, Clutch Cover Part Not Illustrated | 1 | $6.02 | Backorder — Late July 2026 | 1 |
| 43 | DH101388 Bolt, Flanged, M5 x 0.8, Enc | Bolt, Flanged, M5 x 0.8, Enc Part Not Illustrated | 5 | $0.60 | Backorder — Late July 2026 | 5 |
