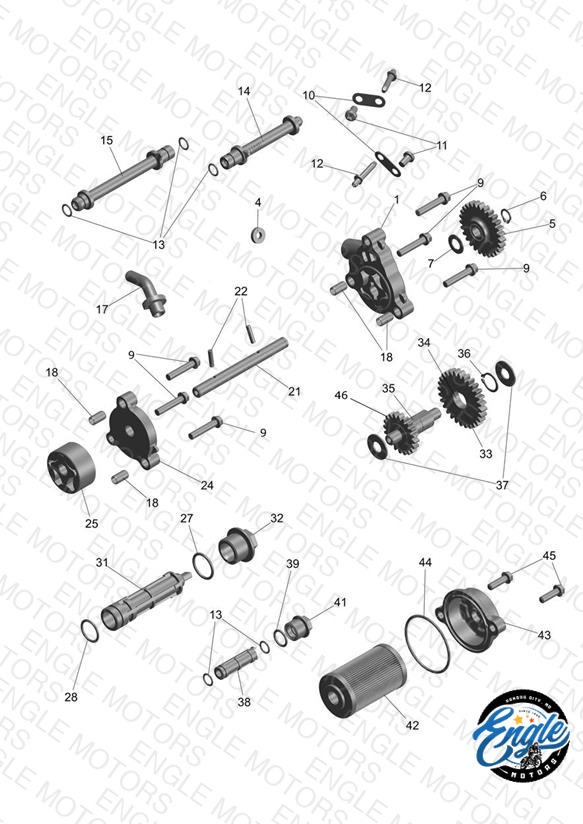

Loading schematic...
Lubrication
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA571006 Oil Pump | Oil Pump | 1 | $44.81 | Available to order | 1 |
| 4 | LDB00012 Washer, Plain | Washer, Plain | 1 | $0.22 | Available to order | 1 |
| 5 | TA571007 Gear Pump, Oil Driven | Gear Pump, Oil Driven | 1 | $21.51 | Available to order | 1 |
| 6 | KEAB1010 Circlip External | Circlip External | 1 | $0.22 | Available to order | 1 |
| 7 | LDA00017 Plain Washer | Plain Washer | 1 | $0.10 | Available to order | 1 |
| 9 | LAE00018 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 6 | $0.57 | Available to order | 6 |
| 10 | TA541043 Plate | Plate | 2 | $1.47 | Available to order | 2 |
| 11 | LBB00012 Screw, Pan, Cross-M | Screw, Pan, Cross-M | 2 | $0.34 | Available to order | 2 |
| 12 | JF541016 Nozzle | Nozzle | 2 | $4.96 | Available to order | 2 |
| 13 | LJA00002 O Ring | O Ring | 2 | $0.21 | Available to order | 2 |
| 14 | TA571015 Oil Rail, Clutch | Oil Rail, Clutch | 1 | $3.29 | Available to order | 1 |
| 15 | TA571014 Oil Rail, Transmission | Oil Rail, Transmission | 1 | $5.71 | Available to order | 1 |
| 17 | TA541035 Pipe | Pipe | 1 | $4.89 | Available to order | 1 |
| 18 | 39099906 Pin Dowel | Pin Dowel | 4 | $0.31 | Available to order | 4 |
| 21 | TA571001 Oil Pump Shaft | Oil Pump Shaft | 1 | $21.63 | Available to order | 1 |
| 22 | LHD00001 Parallel Pin | Parallel Pin | 2 | $0.22 | Available to order | 2 |
| 24 | TA571013 Cover Pump Evacuation | Cover Pump Evacuation | 1 | $11.87 | Available to order | 1 |
| 25 | 52JP1811 Kt26 Evacuation Inner/Outer Assy | Kt26 Evacuation Inner/Outer Assy | 1 | $42.12 | Available to order | 1 |
| 27 | 59210023 O Ring | O Ring | 1 | $0.23 | Available to order | 1 |
| 28 | LJA00004 O Ring | O Ring | 1 | $0.21 | Available to order | 1 |
| 31 | JY571030 Mesh, Strainer, Assembly | Mesh, Strainer, Assembly | 1 | $4.48 | Backorder — Mid August 2026 | 1 |
| 32 | JA541021 Cap Strainer | Cap Strainer | 1 | $4.96 | Available to order | 1 |
| 33 | TA571017 Gear, Intermediate | Gear, Intermediate | 1 | $12.20 | Available to order | 1 |
| 34 | TA571019 Insert | Insert | 1 | $5.53 | Available to order | 1 |
| 35 | TA571012 Oil Pump Shaft | Oil Pump Shaft | 1 | $21.33 | Available to order | 1 |
| 36 | KEAB1610 Circlip, Ext Dia 14.7 | Circlip, Ext Dia 14.7 | 1 | $0.22 | Available to order | 1 |
| 37 | LDB00150 Plain Washer | Plain Washer | 2 | $0.66 | Available to order | 2 |
| 38 | JY571008 Strainer Evacuation | Strainer Evacuation | 1 | $6.58 | Available to order | 1 |
| 39 | LJA00006 O Ring, ID 12.5 x Sect Dia 2 | O Ring, ID 12.5 x Sect Dia 2 | 1 | $0.31 | Available to order | 1 |
| 41 | JY571009 Cap Strainer Evacuation | Cap Strainer Evacuation | 1 | $6.48 | Available to order | 1 |
| 42 | JG571014 Oil Filter | Oil Filter | 1 | $12.26 | Available to order | 1 |
| 43 | 56TA1XH4 Oil Filter Cap, TA571005 | Oil Filter Cap, TA571005 | 1 | $6.36 | Available to order | 1 |
| 44 | LJA00035 O Ring | O Ring | 1 | $0.97 | Available to order | 1 |
| 45 | KAEW0620 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 2 | $0.34 | Available to order | 2 |
| 46 | TA571016 Gear Assy, Oil Pump | Gear Assy, Oil Pump Part Not Illustrated | 1 | $34.80 | Backorder — Late July 2026 | 1 |
| 47 | 36TA0065 Triumph Periodic Service Kit | Triumph Periodic Service Kit Not Illustrated | 1 | $45.95 | Available to order | 1 |
