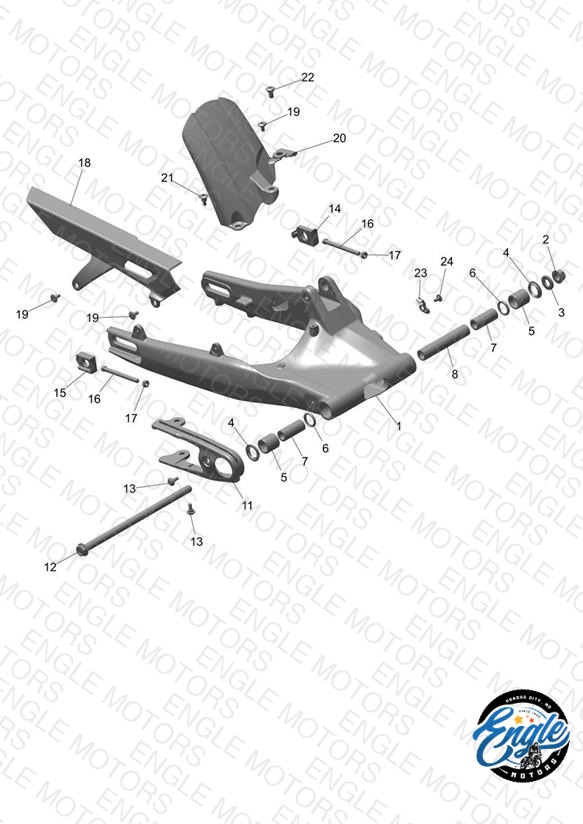

Swinging Arm
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0224 Assy Swing Arm TA122002, T102B | Assy Swing Arm TA122002, T102B | 1 | $631.86 | Available to order | 1 |
| 2 | DG171017 Nut | Nut | 1 | $3.39 | Available to order | 1 |
| 3 | JF113423 Washer, Plain | Washer, Plain | 1 | $2.61 | Available to order | 1 |
| 4 | DG171019 Oil Seal | Oil Seal | 2 | $2.16 | Available to order | 2 |
| 5 | DG171018 Bearing Needle | Bearing Needle | 2 | $15.27 | Out of Stock | Notify Me |
| 6 | JP122059 Oil Seal | Oil Seal | 2 | $3.39 | Available to order | 2 |
| 7 | DK171006 Sleeve | Sleeve | 2 | $10.22 | Available to order | 2 |
| 8 | TA122021 Spacer | Spacer | 1 | $24.28 | Available to order | 1 |
| 11 | TA122008 Slider Chain | Slider Chain | 1 | $28.10 | Available to order | 1 |
| 12 | LAD00108 Bolt, Flanged, M14 x 1.5 | Bolt, Flanged, M14 x 1.5 | 1 | $16.91 | Available to order | 1 |
| 13 | LBU00103 Screw, Step, M6 x 1 | Screw, Step, M6 x 1 | 2 | $0.91 | Available to order | 2 |
| 14 | TA122030 Chain Adjuster, LH | Chain Adjuster, LH All except BR | 1 | $12.41 | Available to order | 1 |
| 14 | TA122065 Chain Adjuster, LH | Chain Adjuster, LH BR only | 1 | $24.10 | Out of Stock | Notify Me |
| 15 | TA122031 Chain Adjuster, RH | Chain Adjuster, RH All except BR | 1 | $12.41 | Available to order | 1 |
| 15 | TA122066 Chain Adjuster, RH | Chain Adjuster, RH BR only | 1 | $24.10 | Out of Stock | Notify Me |
| 16 | LAA00079 Bolt, M8 x 1.25 | Bolt, M8 x 1.25 | 2 | $2.49 | Available to order | 2 |
| 17 | KCAM0806 Nut, Hex, M8 x 1.25 | Nut, Hex, M8 x 1.25 | 2 | $0.34 | Available to order | 2 |
| 18 | TA181208 Cover, Chain | Cover, Chain | 1 | $19.54 | Available to order | 1 |
| 19 | LBU00182 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 3 | $0.91 | Available to order | 3 |
| 20 | TA181428 Fender Hugger | Fender Hugger | 1 | $11.10 | Available to order | 1 |
| 21 | DL141035 Bolt, Socket, Hd W Flange | Bolt, Socket, Hd W Flange | 1 | $1.13 | Available to order | 1 |
| 23 | TA131830 Clamp Hose | Clamp Hose | 1 | $1.24 | Available to order | 1 |
| 24 | LBU00148 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 1 | $0.46 | Available to order | 1 |
