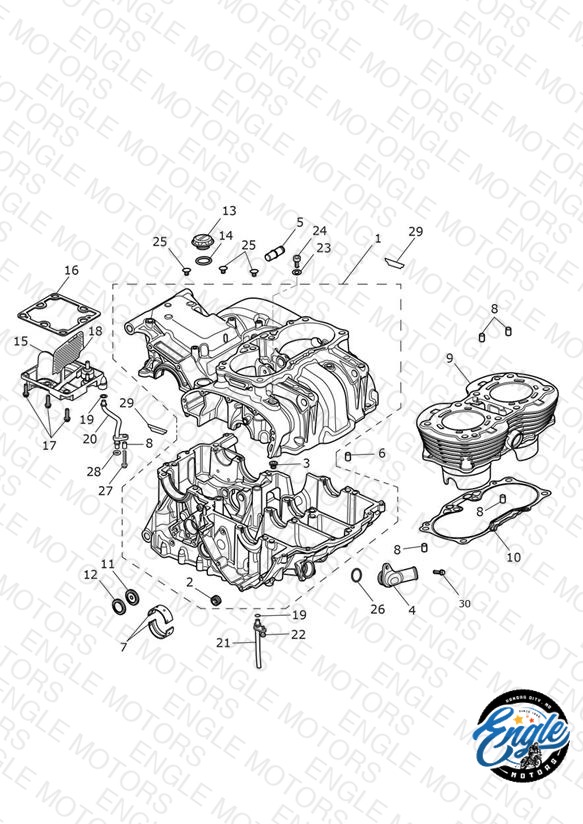

Loading schematic...
Crankcase & Fittings
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1162953 Crankcase Assembly, Spares | Crankcase Assembly, Spares | 1 | $4785.52 | Backorder — Late July 2026 | 1 |
| 2 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc | 6 | $6.65 | Available to order | 6 |
| 3 | T3455555 Plug, M10, Flanged | Plug, M10, Flanged | 3 | $1.51 | Available to order | 3 |
| 4 | T1162920 Elbow, Coolant, Return | Elbow, Coolant, Return | 1 | $64.52 | Available to order | 1 |
| 5 | T1160268 Spigot, OD 14.0mm | Spigot, OD 14.0mm | 1 | $5.78 | Available to order | 1 |
| 6 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 7 | T1160231 Main Bearing Shell, Grooved, Red | Main Bearing Shell, Grooved, Red | — | $15.88 | Available to order | 1 |
| 7 | T1160232 Main Bearing Shell, Grooved, Blue | Main Bearing Shell, Grooved, Blue | — | $15.88 | Available to order | 1 |
| 7 | T1160233 Main Bearing Shell, Grooved, Green | Main Bearing Shell, Grooved, Green | — | $15.88 | Available to order | 1 |
| 8 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 5 | $3.90 | Backorder — Late August 2026 | 5 |
| 9 | T1167220 Barrel, Dia 97.6 | Barrel, Dia 97.6 | 1 | $1446.20 | Available to order | 1 |
| 10 | T1167250 Base Gasket | Base Gasket | 1 | $29.56 | Available to order | 1 |
| 11 | T1261049 Sight glass | Sight glass | 1 | $17.28 | Available to order | 1 |
| 12 | T1262070 Plug, Sightglass | Plug, Sightglass | 1 | $7.42 | Available to order | 1 |
| 13 | T1161512 Cap, Oil Filler | Cap, Oil Filler | 1 | $19.13 | Available to order | 1 |
| 14 | T3600028 O Ring, Filler Cap | O Ring, Filler Cap | 1 | $1.40 | Available to order | 1 |
| 15 | T1162910 Breather Plate | Breather Plate | 1 | $42.14 | Available to order | 1 |
| 16 | T1162911 Gasket, Breather | Gasket, Breather | 1 | $4.55 | Backorder — Mid August 2026 | 1 |
| 17 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc > Eng No 768524 - All Except BR & > 760848 - BR Only | 7 | $5.60 | Available to order | 7 |
| 17 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc Eng No 768525 > - All Except BR & 760849 > - BR Only | 7 | $5.69 | Available to order | 7 |
| 18 | T1160464 Baffle Plate, Perforated | Baffle Plate, Perforated | 1 | $5.88 | Available to order | 1 |
| 19 | T3600153 O Ring, 7.6 x 2.4 | O Ring, 7.6 x 2.4 | 2 | $2.00 | Available to order | 2 |
| 20 | T1162918 Breather Drain Pipe | Breather Drain Pipe > Eng No 913161 | 1 | $7.74 | Unavailable | View Details |
| 20 | T1162611 Breather Drain Pipe | Breather Drain Pipe Eng No 913162 > | 1 | $7.59 | Unavailable | View Details |
| 21 | T1163006 Breather Drain Pipe, Lower | Breather Drain Pipe, Lower | 1 | $12.16 | Available to order | 1 |
| 22 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 1 | $0.57 | Backorder — Late August 2026 | 1 |
| 23 | T3550560 Washer, CU, OD16.0, ID8.4, 1.0 | Washer, CU, OD16.0, ID8.4, 1.0 | 1 | $2.37 | Available to order | 1 |
| 24 | T3050245 Screw, Cap/Hd, M8 x 16, Slv | Screw, Cap/Hd, M8 x 16, Slv | 1 | $3.33 | Available to order | 1 |
| 25 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 3 | $1.40 | Backorder — Late August 2026 | 3 |
| 26 | T3600950 O Ring, 23.47 x 2.62 | O Ring, 23.47 x 2.62 | 1 | $3.24 | Available to order | 1 |
| 27 | T3200147 Bolt, RHHF, M6 x 30 | Bolt, RHHF, M6 x 30 | 1 | $4.45 | Available to order | 1 |
| 28 | T3600268 O Ring, ID 7, 52 x 3, 53 | O Ring, ID 7, 52 x 3, 53 | 1 | $5.42 | Out of Stock | Notify Me |
| 29 | T1161201 Badge, 1200, Gold | Badge, 1200, Gold | 1 | $70.35 | Available to order | 1 |
