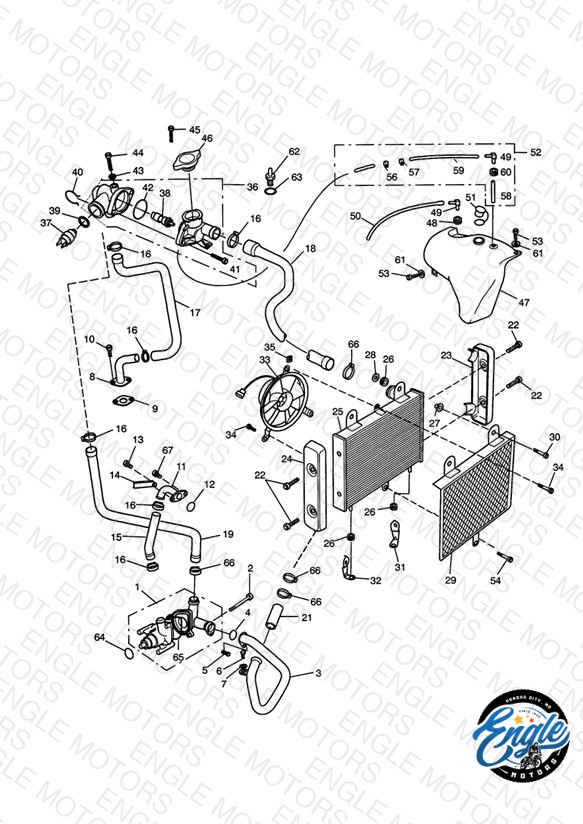

Cooling System
Parts (75)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2100100 Water pump assy | Water pump assy | 1 | $336.22 | Available to order | 1 |
| 2 | T3202065 Bolt | Bolt M6 x 65mm | 2 | $2.99 | Obsolete | View Details |
| 3 | T2100336 Water pipe | Water pipe Lower | 1 | $65.07 | Obsolete | View Details |
| 4 | T3600036 O ring | O ring | 1 | $1.40 | Available to order | 1 |
| 5 | T3203115 Bolt, RHHF, M6x1.0x12, S/S | Bolt, RHHF, M6x1.0x12, S/S | 3 | $3.17 | Available to order | 3 |
| 6 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 1 | $1.21 | Available to order | 1 |
| 7 | 3550030-T0301 Washer fibre | Washer fibre M8 -PART NO LONGER AVAILABLE | 1 | $0.51 | Obsolete | View Details |
| 8 | T2100344 Outlet, Cylinder Head, Chrome | Outlet, Cylinder Head, Chrome | 1 | $23.96 | Obsolete | View Details |
| 9 | T2100054 Gasket, Cyl Head Outlet | Gasket, Cyl Head Outlet | 1 | $1.50 | Available to order | 1 |
| 10 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv M6 x 16mm | 4 | $3.50 | Available to order | 4 |
| 11 | T2102146 Elbow | Elbow » ENG NO 127438 | 1 | $28.33 | Obsolete | View Details |
| 11 | T2102127 Elbow | Elbow ENG NO 127439 » | 1 | $12.87 | Obsolete | View Details |
| 12 | T2102143 Gasket | Gasket » ENG NO 127438 | 1 | $1.40 | Available to order | 1 |
| 12 | T3600185 O ring | O ring ENG NO 127439 » | 1 | $2.63 | Available to order | 1 |
| 13 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv » 27439 | 1 | $2.63 | Available to order | 1 |
| 13 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv 27440 » | 1 | $5.30 | Available to order | 1 |
| 14 | 2100034-T0301 Bracket | Bracket » 27439 | 1 | $3.41 | Unavailable | 1 |
| 14 | T2100049 Bracket | Bracket 27440 » Engine No. 127438 | 1 | $2.10 | Available to order | 1 |
| 14 | T2100053 Bracket | Bracket ENG NO 127439 » | 1 | $3.52 | Obsolete | View Details |
| 15 | T2100110 Hose outlet | Hose outlet | 1 | $23.69 | Available to order | 1 |
| 16 | T2102242 Hose Clip, 23-35, Bright, Ss | Hose Clip, 23-35, Bright, Ss | 6 | $7.73 | Out of Stock | Notify Me |
| 17 | T2100311 Hose | Hose | 1 | $21.75 | Backorder — Early August 2026 | 1 |
| 18 | T2100321 Hose top | Hose top | 1 | $55.12 | Out of Stock | Notify Me |
| 19 | T2100330 Hose | Hose » 27439 | 1 | $20.76 | Obsolete | View Details |
| 19 | T2100333 Hose | Hose 27440 » | 1 | $21.75 | Available to order | 1 |
| 21 | T2100351 Hose bottom | Hose bottom | 1 | $16.15 | Available to order | 1 |
| 22 | T3330545 Bolt | Bolt M5 x 10 >79226 | 4 | $4.51 | Obsolete | View Details |
| 22 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv M6 x 10mm 79227> | 4 | $4.42 | Available to order | 4 |
| 23 | T2100171 Cover lh | Cover lh 42767 » Black | 1 | $122.10 | Obsolete | View Details |
| 23 | T2100175 End cap lh | End cap lh » 42766 Chrome | 1 | $20.95 | Obsolete | View Details |
| 24 | T2100161 Cover rh | Cover rh 42767 » Black | 1 | $119.67 | Obsolete | View Details |
| 24 | T2100165 End cap rh | End cap rh » 42766 Chrome | 1 | $42.00 | Obsolete | View Details |
| 25 | T2102137 Radiator | Radiator » 79226 - Part No Longer Available | 1 | $634.02 | Obsolete | View Details |
| 25 | T2102135 Radiator | Radiator 79227 » | 1 | $634.02 | Obsolete | View Details |
| 26 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 4 | $3.39 | Available to order | 4 |
| 27 | T3010262 Flanged sleeve | Flanged sleeve M8 | 2 | $4.93 | Obsolete | View Details |
| 28 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 29 | T2102134 Stone guard | Stone guard » 42766 | 1 | $28.17 | Obsolete | View Details |
| 29 | A9730021 Kit radiator guard | Kit radiator guard 42767 » » 71698 Chrome | 1 | $84.00 | Obsolete | View Details |
| 30 | T3330540 Bolt | Bolt M8 x 30mm | 2 | $5.30 | Obsolete | View Details |
| 31 | T2101314 Radiator bracket | Radiator bracket LH | 1 | $4.85 | Available to order | 1 |
| 32 | T2101315 Radiator bracket | Radiator bracket RH | 1 | $4.85 | Out of Stock | Notify Me |
| 33 | 2101202-T0301 Fan assembly | Fan assembly | 1 | $396.11 | Available to order | 1 |
| 34 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $0.97 | Available to order | 3 |
| 35 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $4.92 | Backorder — Early August 2026 | 1 |
| 36 | T2100080 Thermostat housing | Thermostat housing | 1 | $131.04 | Obsolete | View Details |
| 37 | T2100789 Switch fan | Switch fan | 1 | $98.85 | Available to order | 1 |
| 38 | T2102131 Thermostat | Thermostat | 1 | $41.21 | Obsolete | View Details |
| 39 | T3600210 O ring | O ring | 1 | $1.40 | Available to order | 1 |
| 40 | T2100272 Retainer | Retainer | 1 | $1.01 | Obsolete | View Details |
| 41 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S ** Part No Longer Available ** | 2 | $1.74 | Obsolete | View Details |
| 42 | T3600200 O ring | O ring | 1 | $3.70 | Available to order | 1 |
| 43 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 44 | T3150007 Bolt | Bolt M6 x 10mm | 1 | $0.58 | Obsolete | View Details |
| 45 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 3 | $0.97 | Available to order | 3 |
| 46 | T2100074 Cap Assy | Cap Assy | 1 | $26.62 | Available to order | 1 |
| 47 | T2100450 Expansion tank | Expansion tank | 1 | $79.84 | Available to order | 1 |
| 48 | T3450035 Grommet, Dia 8, Dia 12.5, 3 | Grommet, Dia 8, Dia 12.5, 3 | 1 | $2.10 | Available to order | 1 |
| 49 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube | 2 | $1.40 | Available to order | 2 |
| 50 | T3620300 Overflow pipe | Overflow pipe | 1 | $13.18 | Available to order | 1 |
| 51 | T2100997 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $9.52 | Available to order | 1 |
| 52 | T3620235 Pipe | Pipe | 1 | $3.20 | Obsolete | View Details |
| 54 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 1 | $3.70 | Available to order | 1 |
| 56 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 57 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 58 | T3620317 Pipe | Pipe | 1 | $2.00 | Available to order | 1 |
| 59 | T3620348 Pipe, Expansion Tank To T.stat | Pipe, Expansion Tank To T.stat | 1 | $9.02 | Available to order | 1 |
| 60 | 3450075-T0301 Grommet | Grommet | 1 | $1.12 | Obsolete | View Details |
| 61 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 62 | 2102150-T0301 Sensor temperature | Sensor temperature | 1 | $40.87 | Available to order | 1 |
| 63 | 3550020-T0301 Sealing Washer, M10 | Sealing Washer, M10 | 1 | $0.90 | Obsolete | View Details |
| 64 | 3600160-T0301 O Ring, Water Pump | O Ring, Water Pump | 1 | $9.02 | Available to order | 1 |
| 65 | T3600230 Seal | Seal | 1 | $5.78 | Available to order | 1 |
| 66 | T2102113 Clip, Hose, 20-32, Bright, Ss | Clip, Hose, 20-32, Bright, Ss | 4 | $7.46 | Available to order | 4 |
| 68 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $187.12 | Available to order | 1 |
