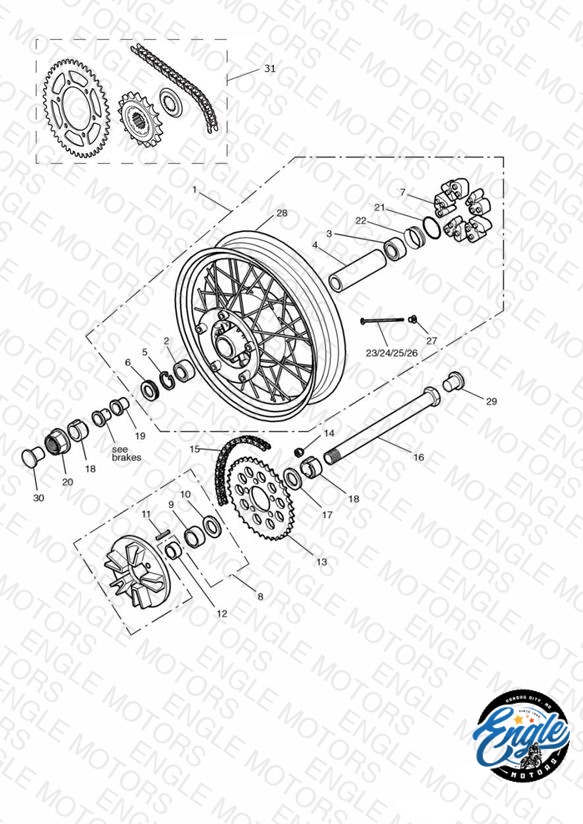

Rear Wheel/Final Drive
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010207 Wheel Assy, Rear, 17 x 4.25 | Wheel Assy, Rear, 17 x 4.25 Aluminium | 1 | $1233.86 | Obsolete | View Details |
| 1 | T2010205 Wheel Assy, Rear, 17 x 4.25 | Wheel Assy, Rear, 17 x 4.25 Steel | 1 | $1377.66 | Obsolete | View Details |
| 2 | 3800016-T0301 Ball bearing | Ball bearing | 1 | $45.12 | Available to order | 1 |
| 3 | 3800017-T0301 Ball bearing | Ball bearing | 1 | $45.12 | Available to order | 1 |
| 4 | T2012050 Spacer, Internal | Spacer, Internal | 1 | $17.74 | Obsolete | View Details |
| 5 | 3500013-T0301 Circlip, Rear Wheel | Circlip, Rear Wheel | 1 | $3.01 | Available to order | 1 |
| 6 | 3600021-T0301 Seal | Seal | 1 | $5.60 | Available to order | 1 |
| 7 | T2012211 Cush rubber | Cush rubber | 1 | $114.08 | Available to order | 1 |
| 8 | T2012129 Sprocket Carrier Assy | Sprocket Carrier Assy | 1 | $378.49 | Available to order | 1 |
| 9 | 3800018-T0301 Ball bearing | Ball bearing | 1 | $45.12 | Available to order | 1 |
| 10 | 3600022-T0301 Seal | Seal | 1 | $5.14 | Out of Stock | Notify Me |
| 11 | T2012108 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 5 | $1.13 | Available to order | 5 |
| 12 | T2012092 Spacer, Internal | Spacer, Internal | 1 | $22.72 | Available to order | 1 |
| 13 | T2010043 Sprocket | Sprocket 43T | 1 | $53.84 | Backorder — Early August 2026 | 1 |
| 14 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 5 | $6.07 | Available to order | 5 |
| 15 | T2010334 Chain | Chain 114 Link | 1 | $246.79 | Obsolete | View Details |
| 16 | T2011268 Spindle assy | Spindle assy » 127832 | 1 | $64.96 | Obsolete | View Details |
| 16 | T2011266 Spindle assy | Spindle assy 127833 » | 1 | $94.11 | Available to order | 1 |
| 17 | 2012073-T0301 Spacer lh | Spacer lh | 1 | $4.67 | Obsolete | View Details |
| 18 | T2056734 Collar | Collar PART NO LONGER AVAILABLE | 2 | $15.20 | Obsolete | View Details |
| 19 | T2012053 Spacer, RH, R/Wheel | Spacer, RH, R/Wheel | 1 | $23.08 | Available to order | 1 |
| 20 | T3350152 Locknut, Flgd, M18 | Locknut, Flgd, M18 M18 | 1 | $15.72 | Available to order | 1 |
| 21 | 3600023-T0301 O ring | O ring | 1 | $1.27 | Available to order | 1 |
| 22 | 2012040-T0301 Carrier, O Ring, Rear | Carrier, O Ring, Rear | 1 | $1.40 | Available to order | 1 |
| 23 | T2014096 Spoke | Spoke RH Inner | 10 | $5.88 | Available to order | 10 |
| 24 | T2014097 Spoke | Spoke RH Outer | 10 | $5.88 | Available to order | 10 |
| 25 | T2014098 Spoke | Spoke LH Inner | 10 | $5.88 | Available to order | 10 |
| 26 | T2014099 Spoke | Spoke LH Outer | 10 | $5.88 | Available to order | 10 |
| 27 | T2004390 Nipple, Spoke | Nipple, Spoke | 40 | $6.39 | Available to order | 40 |
| 28 | T2014025 Wheel rim | Wheel rim Aluminium | 1 | $558.08 | Obsolete | View Details |
| 28 | T2010211 Wheel rim | Wheel rim Steel - PART NO LONGER AVAILABLE | 1 | $582.25 | Obsolete | View Details |
| 29 | T3450012 Cap | Cap 127833 » M6 | 1 | $0.84 | Available to order | 1 |
| 30 | T3450042 Bung, Hole, Dia 11, Black | Bung, Hole, Dia 11, Black 127833 » | 1 | $2.25 | Out of Stock | Notify Me |
| 31 | T2017400 Chain & Sprocket Kit, 114/43/17 | Chain & Sprocket Kit, 114/43/17 | 1 | $274.57 | Out of Stock | Notify Me |
