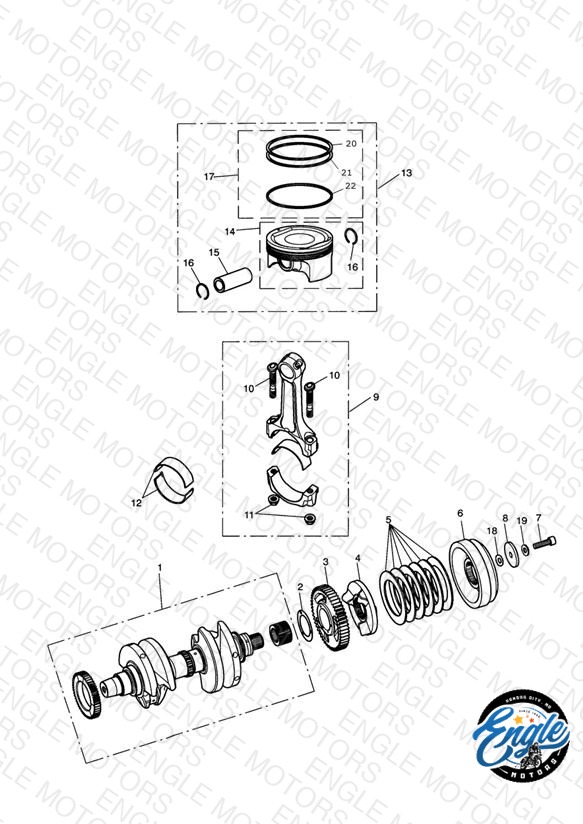

Crankshaft, Connecting Rods & Pistons
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100300 Crankshaft Assy | Crankshaft Assy | 1 | $1302.68 | Out of Stock | Notify Me |
| 2 | T3552022 Washer, Thrust, 54 x 75 x 1.75 | Washer, Thrust, 54 x 75 x 1.75 | 1 | $10.18 | Available to order | 1 |
| 3 | T1102010 Gear, Primary, Pinion, Assy | Gear, Primary, Pinion, Assy | 1 | $241.45 | Available to order | 1 |
| 4 | T1102040 Follower, Cam, Damper, Splined | Follower, Cam, Damper, Splined | 1 | $106.47 | Available to order | 1 |
| 5 | T3552049 Spring, Disc, 85 x 124.5 x 3.5 | Spring, Disc, 85 x 124.5 x 3.5 | 6 | $14.83 | Backorder — Early August 2026 | 6 |
| 6 | T1103045 Retainer, Spring, Splined | Retainer, Spring, Splined | 1 | $123.56 | Available to order | 1 |
| 7 | T3151045 Bolt, HHF, M12 x 1.25 x 45, Raw | Bolt, HHF, M12 x 1.25 x 45, Raw | 1 | $7.22 | Available to order | 1 |
| 8 | T3550241 Washer, 12.3 x 60 x 11.8 | Washer, 12.3 x 60 x 11.8 | 1 | $7.22 | Available to order | 1 |
| 9 | T1113101 Assy, Con-Rod | Assy, Con-Rod | 1 | $262.31 | Available to order | 1 |
| 10 | T1113102 Bolt, Con Rod | Bolt, Con Rod | 2 | $13.51 | Available to order | 2 |
| 11 | T1110016 Nut, Con Rod | Nut, Con Rod | 2 | $9.69 | Available to order | 2 |
| 12 | T1110083 Bearing Shell, Con Rod, White | Bearing Shell, Con Rod, White | 4 | $12.70 | Available to order | 4 |
| 12 | T1110084 Bearing Shell, Con Rod, Red | Bearing Shell, Con Rod, Red | 4 | $12.70 | Available to order | 4 |
| 12 | T1110085 Bearing Shell, Con Rod, Green | Bearing Shell, Con Rod, Green | 4 | $12.70 | Available to order | 4 |
| 13 | T1120017 Piston Assembly 103.8 | Piston Assembly 103.8 | 1 | $589.72 | Available to order | 1 |
| 13 | T1120127 Piston Assy, 107.1 | Piston Assy, 107.1 1700cc Only | 1 | $274.62 | Available to order | 1 |
| 14 | T1120036 Piston, 103.8, Ab Grade | Piston, 103.8, Ab Grade | 1 | $260.52 | Out of Stock | Notify Me |
| 14 | T1120522 Piston, 107.1, Grade A/B | Piston, 107.1, Grade A/B 1700cc Only | 2 | $260.52 | Available to order | 2 |
| 15 | T1120029 Gudgeon Pin | Gudgeon Pin | 1 | $11.48 | Out of Stock | Notify Me |
| 15 | T1120045 Gudgeon Pin | Gudgeon Pin 1700cc Only | 2 | $48.49 | Available to order | 2 |
| 16 | T1120016 Circlip, Piston | Circlip, Piston | 4 | $3.33 | Available to order | 4 |
| 17 | T1120044 Piston Ring Set | Piston Ring Set | 2 | $131.17 | Available to order | 2 |
| 17 | T1120112 Piston Ring Set, 107.1 | Piston Ring Set, 107.1 1700cc Only | 2 | $134.99 | Available to order | 2 |
| 18 | T3551606 Washer, Shim,13 x 23 x 0.5 | Washer, Shim,13 x 23 x 0.5 > Eng No 427424 | 1 | $6.73 | Available to order | 1 |
| 19 | T3550617 Washer, 12.5 x 22.75 x 2 | Washer, 12.5 x 22.75 x 2 | 1 | $4.01 | Available to order | 1 |
| 20 | T1120041 Ring, 1st Compression | Ring, 1st Compression | 1 | $131.17 | Out of Stock | Notify Me |
| 21 | T1120042 Ring, 2nd Compression | Ring, 2nd Compression | 1 | $129.27 | Out of Stock | Notify Me |
| 22 | T1120043 Ring, Oil Control | Ring, Oil Control | 1 | $131.17 | Out of Stock | Notify Me |
