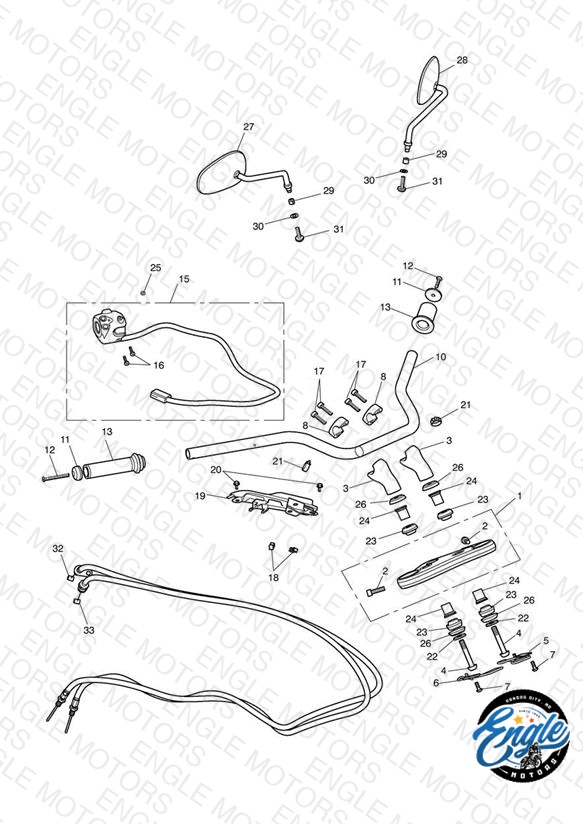

Triumph Thunderbird 1600 & 1700 Handlebars, Top Yoke, Cables & Mirrors — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2049224 Yoke, Upper, Assy	Yoke, Upper, Assy	1	$431.28	Out of Stock	Notify Me
2	T3050191 Screw, Cap H/d, M10 x 30, SS	Screw, Cap H/d, M10 x 30, SS	2	$6.39	Available to order	2 Ships within 3–7 business days
3	T2049229 Riser, Handlebar	Riser, Handlebar	2	$77.01	Available to order	2 Ships within 3–7 business days
4	T3332545 Bolt, Skt/HD, M10, 75LG Enc	Bolt, Skt/HD, M10, 75LG Enc > 522208	2	$5.54	Available to order	2 Ships within 3–7 business days
4	T3330331 Bolt, Skt HD, M10 x 88	Bolt, Skt HD, M10 x 88 522209 >	2	$8.75	Available to order	2 Ships within 3–7 business days
5	T2049206 Wire/Hose Guide	Wire/Hose Guide	1	$6.73	Available to order	1 Ships within 3–7 business days
6	T2049212 Wire/Hose Guide	Wire/Hose Guide	1	$6.73	Available to order	1 Ships within 3–7 business days
7	T3335011 Screw, But/Hd, Tx, M8 x 20	Screw, But/Hd, Tx, M8 x 20 N/A to Special Edition	2	$3.50	Available to order	2 Ships within 3–7 business days
8	T2046710 Clamp, Riser Cap	Clamp, Riser Cap	2	$58.92	Available to order	2 Ships within 3–7 business days
10	T2044220 Handlebars, Od 25.4	Handlebars, Od 25.4	1	$197.72	Available to order	1 Ships within 3–7 business days
11	T2044222 Bar End Weights	Bar End Weights > 471466	2	$36.48	Out of Stock	Notify Me
11	T2041134 End Weight, Handlebar	End Weight, Handlebar 471467 >	2	$36.48	Available to order	2 Ships within 3–7 business days
12	T3330876 Screw, C/Sunk, Skt, M6 x 40, SS	Screw, C/Sunk, Skt, M6 x 40, SS	2	$4.12	Available to order	2 Ships within 3–7 business days
13	T2043718 Kit, Handlebar Grips	Kit, Handlebar Grips > 610946 - Kit Contain LH & RH Grip	1	$46.76	Available to order	1 Ships within 3–7 business days
13a	T2043716 Grip, LH	Grip, LH 610947 >	1	$51.16	Available to order	1 Ships within 3–7 business days
13b	T2043717 Grip, RH	Grip, RH 610947 >	1	$51.16	Available to order	1 Ships within 3–7 business days
15	T2046701 Switch Set, RH	Switch Set, RH	1	$220.55	Available to order	1 Ships within 3–7 business days
16	T3330018 Screw, Phil, Pan/Hd, M5 x 25	Screw, Phil, Pan/Hd, M5 x 25	2	$2.17	Available to order	2 Ships within 3–7 business days
17	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
18	T2040811 Twin Clip, Brake Hose	Twin Clip, Brake Hose	2	$2.63	Available to order	2 Ships within 3–7 business days
19	T2040604 Moulding Wire Routing	Moulding Wire Routing	1	$25.65	Out of Stock	Notify Me
20	T3331517 Screw, P/HD Tx, Shld, M6 x 16, S	Screw, P/HD Tx, Shld, M6 x 16, S	2	$0.97	Available to order	2 Ships within 3–7 business days
21	T2046017 Clip, Cable, Black	Clip, Cable, Black	2	$5.69	Available to order	2 Ships within 3–7 business days
22	T3555029 Washer, 10.5 x 23 x 2	Washer, 10.5 x 23 x 2	2	$2.74	Available to order	2 Ships within 3–7 business days
23	T2047400 Bush, Rubber, H/Bar	Bush, Rubber, H/Bar > 522208	4	$3.24	Backorder — Early August 2026	4
23	T2047401 Bush, Rubber, H/Bar	Bush, Rubber, H/Bar 522209 >	4	$3.70	Available to order	4 Ships within 3–7 business days
24	T2047589 Sleeve, Dia 16 x 44	Sleeve, Dia 16 x 44 > 522208	2	$7.42	Available to order	2 Ships within 3–7 business days
24	T2047599 Spacer, Flared, Dia 22 x 22	Spacer, Flared, Dia 22 x 22 522209 >	4	$7.71	Available to order	4 Ships within 3–7 business days
25	T3330138 Screw, Phil, Pan/HD, M5 x 8 Replaced by T3330382 — Screw, Phil Pan HD, M5 x 12, Slv — Available to Order	Screw, Phil, Pan/HD, M5 x 8 > 424291	1	$1.06	Unavailable	1 Adds T3330382Ships within 3–7 business days
25	T3330382 Screw, Phil Pan HD, M5 x 12, Slv	Screw, Phil Pan HD, M5 x 12, Slv 424292 >	1	$0.44	Available to order	1 Ships within 3–7 business days
26	T2049194 Cap, Handlebar Bush	Cap, Handlebar Bush	4	$15.12	Available to order	4 Ships within 3–7 business days
27	T2066080 Kit, Mirror Assy, RH	Kit, Mirror Assy, RH > 495797	1	$134.99	Available to order	1 Ships within 3–7 business days
27	T2066040 Mirror Assy, RH	Mirror Assy, RH 495798 >	1	$129.61	Available to order	1 Ships within 3–7 business days
28	T2066081 Kit, Mirror Assy, LH	Kit, Mirror Assy, LH > 493113	1	$134.99	Available to order	1 Ships within 3–7 business days
28	T2066041 Mirror Assy, LH	Mirror Assy, LH 493114 >	1	$134.99	Available to order	1 Ships within 3–7 business days
29	T3550204 Tolerance Ring, 12x 12	Tolerance Ring, 12x 12	2	$4.74	Available to order	2 Ships within 3–7 business days
30	T3550203 Washer, Valve Spring, M10	Washer, Valve Spring, M10	2	$2.17	Available to order	2 Ships within 3–7 business days
31	T3330727 Screw, But/Hd, M6 x 20, Slv	Screw, But/Hd, M6 x 20, Slv > 493113 LHS & > 495797 RHS	2	$3.39	Available to order	2 Ships within 3–7 business days
31	T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv	Bolt, But/Hd, M6 x 21, Shld, Slv 493114 > LHS & 495798 > RHS	2	$5.88	Available to order	2 Ships within 3–7 business days
32	T2044300 Cable, Throttle, Pull	Cable, Throttle, Pull	1	$48.47	Available to order	1 Ships within 3–7 business days
33	T2044301 Cable, Throttle, Return	Cable, Throttle, Return	1	$47.53	Backorder — Early August 2026	1
