Triumph Thunderbird 1600 & 1700 Front Forks & Lower Yoke — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

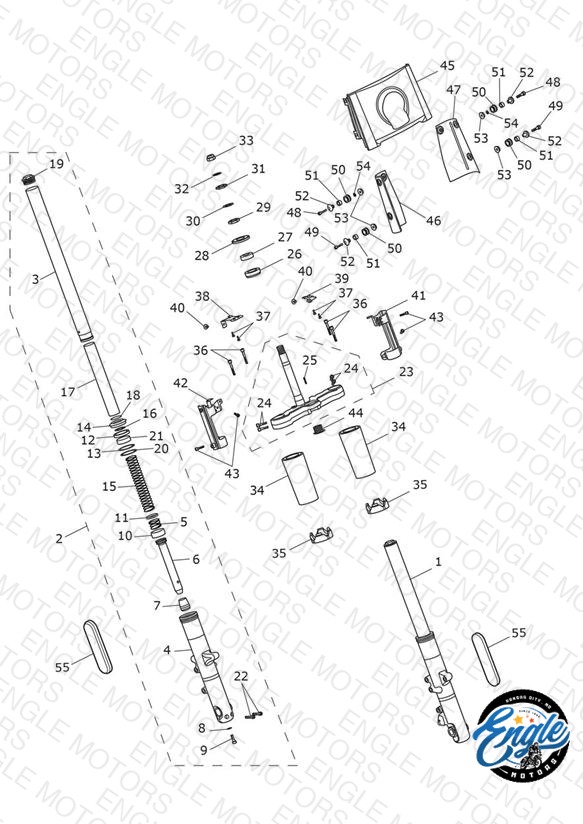

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2041721 Front Fork Spares Kit, LH	Front Fork Spares Kit, LH > 784875	1	$1689.96	Backorder — Late July 2026	1
1	T2041591 Fork Assy, LH	Fork Assy, LH 784876 >	1	$1663.55	Available to order	1 Ships within 3–7 business days
2	T2041722 Front Fork Spares Kit, RH	Front Fork Spares Kit, RH > 784875	1	$1689.96	Out of Stock	Notify Me
2	T2041592 Fork Assy, RH	Fork Assy, RH 784876 >	1	$1663.55	Available to order	1 Ships within 3–7 business days
3	T2041679 Stanchion, Fork	Stanchion, Fork	2	$285.40	Obsolete	View Details
4	T2045733 Slider, Fork, LH	Slider, Fork, LH	1	$563.33	Out of Stock	Notify Me
4	T2045734 Slider, Fork, RH	Slider, Fork, RH	1	$563.33	Available to order	1 Ships within 3–7 business days
5	T2041682 Rebound Spring	Rebound Spring	2	$11.88	Available to order	2 Ships within 3–7 business days
6	T2041683 Component, Under Seat	Component, Under Seat	2	$40.38	Out of Stock	Notify Me
7	T2045655 Oil Lock Piece	Oil Lock Piece	2	$15.72	Available to order	2 Ships within 3–7 business days
8	T2045656 Washer, Copper	Washer, Copper	2	$1.40	Available to order	2 Ships within 3–7 business days
9	T2045657 Bolt, M10	Bolt, M10	2	$17.11	Available to order	2 Ships within 3–7 business days
10	T2041173 Bush, Guide	Bush, Guide	2	$14.32	Available to order	2 Ships within 3–7 business days
11	T2041688 Sealing Washer	Sealing Washer	2	$5.24	Available to order	2 Ships within 3–7 business days
12	T2045660 Seal, Front Fork	Seal, Front Fork	2	$23.67	Available to order	2 Ships within 3–7 business days
13	T2041690 Oil Seal Stopper Ring	Oil Seal Stopper Ring	2	$23.35	Available to order	2 Ships within 3–7 business days
14	T2046249 Oil & Dust Seals, Pairs, Kit	Oil & Dust Seals, Pairs, Kit > 784875 - Contains 2 Oil Seals & 2 Dust Seals per kit	1	$88.85	Out of Stock	Notify Me
14	T2041519 Dust Seal Kit	Dust Seal Kit > 784875	2	$41.27	Available to order	2 Ships within 3–7 business days
14	T2041541 Dust Seal	Dust Seal 784876 >	2	$20.66	Available to order	2 Ships within 3–7 business days
15	T2041692 Spring	Spring	2	$102.64	Available to order	2 Ships within 3–7 business days
16	T2045664 Washer, Spring	Washer, Spring	2	$4.01	Available to order	2 Ships within 3–7 business days
17	T2045665 Spacer, Spring	Spacer, Spring	2	$11.41	Available to order	2 Ships within 3–7 business days
18	T2045666 O Ring, End Cap	O Ring, End Cap	2	$2.74	Available to order	2 Ships within 3–7 business days
19	T2045621 End Cap	End Cap	2	$82.73	Available to order	2 Ships within 3–7 business days
20	T2041184 Bush, Slider	Bush, Slider	2	$14.58	Available to order	2 Ships within 3–7 business days
21	T2041697 Abrasion Collar	Abrasion Collar	2	$24.43	Out of Stock	Notify Me
22	T3050073 Capscrew	Capscrew	2	$5.88	Available to order	2 Ships within 3–7 business days
23	T2049110 Lower Yoke Assy, Black	Lower Yoke Assy, Black > 633669	1	$686.55	Available to order	1 Ships within 3–7 business days
24	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
25	T3000096 Pin, Spirol Dia 3 x 18	Pin, Spirol Dia 3 x 18	1	$5.02	Available to order	1 Ships within 3–7 business days
26	T3800031 Bearing, 30x55x17, Taper Roll	Bearing, 30x55x17, Taper Roll	1	$32.55	Available to order	1 Ships within 3–7 business days
27	T3800032 Bearing, 24x47x15, Taper Roll	Bearing, 24x47x15, Taper Roll	1	$61.04	Out of Stock	Notify Me
28	T2046552 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.18	Available to order	1 Ships within 3–7 business days
29	T2041265 Adjuster Nut, Lower	Adjuster Nut, Lower	1	$13.45	Available to order	1 Ships within 3–7 business days
30	T3551820 Locating Washer, 25.5x38x2, Slv	Locating Washer, 25.5x38x2, Slv	1	$1.72	Available to order	1 Ships within 3–7 business days
31	T2140210 Adjuster Nut, Upper	Adjuster Nut, Upper	1	$3.39	Available to order	1 Ships within 3–7 business days
32	T2040061 Washer Upper Yoke	Washer Upper Yoke	1	$7.14	Available to order	1 Ships within 3–7 business days
33	T2040060 Nut	Nut	1	$24.83	Out of Stock	Notify Me
34	T2045016 Shroud, Lower Fork	Shroud, Lower Fork	2	$60.87	Available to order	2 Ships within 3–7 business days
35	T3020046 Grommet, Shroud, Castellated	Grommet, Shroud, Castellated	2	$5.02	Available to order	2 Ships within 3–7 business days
36	T3205073 Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv	Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv	4	$6.73	Available to order	4 Ships within 3–7 business days
37	T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041	Bolt, RHHF, M5 x 0.8 x 12, S5041	4	$3.24	Available to order	4 Ships within 3–7 business days
38	T2049777 Bracket, RH, Shroud Support	Bracket, RH, Shroud Support	1	$21.51	Available to order	1 Ships within 3–7 business days
39	T2049778 Bracket, LH, Shroud Support	Bracket, LH, Shroud Support	1	$21.51	Available to order	1 Ships within 3–7 business days
40	T3330726 Screw, Btn/Hd, M6 x 12, Slv	Screw, Btn/Hd, M6 x 12, Slv	2	$4.42	Available to order	2 Ships within 3–7 business days
41	T2049781 Shroud Support Bracket, LH	Shroud Support Bracket, LH	1	$38.96	Available to order	1 Ships within 3–7 business days
42	T2049782 Shroud Support Bracket, RH	Shroud Support Bracket, RH	1	$38.96	Out of Stock	Notify Me
43	T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv	Screw, Pan/Hd, Tx, M6 x 16, Slv	4	$0.97	Available to order	4 Ships within 3–7 business days
44	T3450060 Cap	Cap	1	$1.40	Available to order	1 Ships within 3–7 business days
45	T2045003 Shroud, Upper, Front, Single	Shroud, Upper, Front, Single	1	$70.35	Available to order	1 Ships within 3–7 business days
46	T2045015 Shroud, Rear, RH Assy	Shroud, Rear, RH Assy	1	$44.09	Out of Stock	Notify Me
47	T2045014 Shroud, Rear, LH Assy	Shroud, Rear, LH Assy	1	$44.09	Available to order	1 Ships within 3–7 business days
48	T3051061 Screw, Cap/Hd, M6 x 30, Slv	Screw, Cap/Hd, M6 x 30, Slv	2	$5.14	Backorder — Mid August 2026	2
49	T3050303 Capscrew, SKT HD, M6 x 35, Pltd	Capscrew, SKT HD, M6 x 35, Pltd	2	$1.21	Available to order	2 Ships within 3–7 business days
50	T2303807 Spool, Upper	Spool, Upper	4	$12.46	Available to order	4 Ships within 3–7 business days
51	T2303761 Cushion, Urethane, HD SB Spool	Cushion, Urethane, HD SB Spool	4	$10.01	Available to order	4 Ships within 3–7 business days
52	T2303809 Bush, Bobbin, M6	Bush, Bobbin, M6	4	$13.33	Available to order	4 Ships within 3–7 business days
53	T2303803 Spacer, Bobbin	Spacer, Bobbin	4	$13.10	Available to order	4 Ships within 3–7 business days
54	T2303762 Washer, Flat, M6, Brass	Washer, Flat, M6, Brass	2	$2.22	Available to order	2 Ships within 3–7 business days
55	T2700332 Reflector, Amber, Oval	Reflector, Amber, Oval	2	$6.39	Available to order	2 Ships within 3–7 business days
