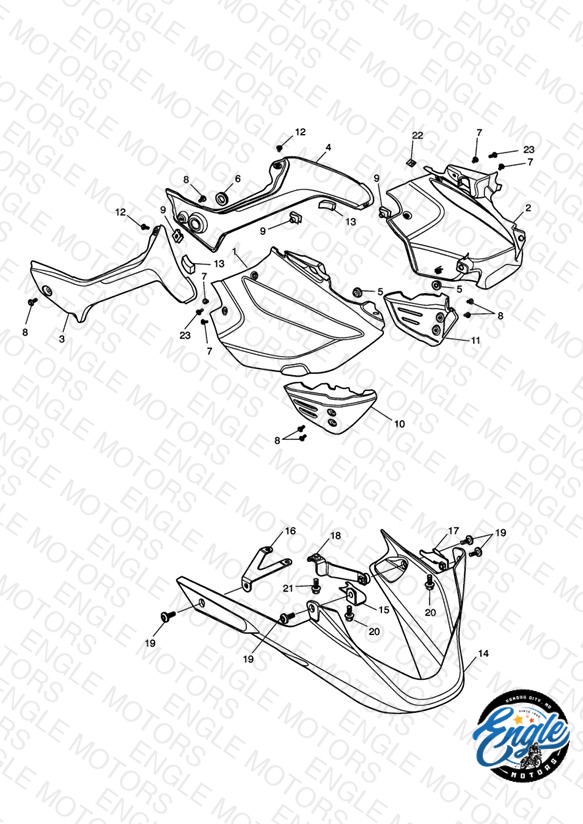

Side Fairings 483576 >
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2306878-CW Cover Panel, Fuel Tank, RH | Cover Panel, Fuel Tank, RH Diablo Red | 1 | $336.75 | Available to order | 1 |
| 1 | T2306878-PR Cover Panel, Fuel Tank, RH | Cover Panel, Fuel Tank, RH Phantom Black | 1 | $334.47 | Available to order | 1 |
| 1 | T2306878-NW Cover Panel, Fuel Tank, RH | Cover Panel, Fuel Tank, RH Crystal White | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 1 | T2306878-LS Cover Panel, Fuel Tank, RH | Cover Panel, Fuel Tank, RH Matt Graphite | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 2 | T2306879-CW Cover Panel, Fuel Tank, LH | Cover Panel, Fuel Tank, LH Diablo Red | 1 | $336.75 | Available to order | 1 |
| 2 | T2306879-PR Cover Panel, Fuel Tank, LH | Cover Panel, Fuel Tank, LH Phantom Black | 1 | $336.75 | Available to order | 1 |
| 2 | T2306879-NW Cover Panel, Fuel Tank, LH | Cover Panel, Fuel Tank, LH Crystal White | 1 | $336.75 | Out of Stock | Notify Me |
| 2 | T2306879-LS Cover Panel, Fuel Tank, LH | Cover Panel, Fuel Tank, LH Matt Graphite | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 3 | T2306840 Sidepanel, RH | Sidepanel, RH | 1 | $102.64 | Available to order | 1 |
| 4 | T2306841 Sidepanel, LH | Sidepanel, LH | 1 | $102.64 | Available to order | 1 |
| 5 | T3020135 Rubber Grommet | Rubber Grommet | 1 | $1.91 | Available to order | 1 |
| 6 | T3660139 Seal, Seat Lock | Seal, Seat Lock | 1 | $6.55 | Available to order | 1 |
| 7 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 4 | $5.02 | Available to order | 4 |
| 8 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 6 | $6.73 | Available to order | 6 |
| 9 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.48 | Available to order | 4 |
| 10 | T2306845 Cover, Radiator, Rhs | Cover, Radiator, Rhs | 1 | $54.48 | Obsolete | View Details |
| 11 | T2306846 Cover, Radiator, Lhs | Cover, Radiator, Lhs | 1 | $69.37 | Available to order | 1 |
| 12 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 2 | $3.90 | Available to order | 2 |
| 13 | T3660220 Rubber Pad, 50 X 20 X 5mm | Rubber Pad, 50 X 20 X 5mm | 2 | $7.14 | Available to order | 2 |
| 14 | T2303050 Bellypan | Bellypan | 1 | $199.57 | Out of Stock | Notify Me |
| 15 | T2303051 Bracket, Belly Pan, RH, Fr | Bracket, Belly Pan, RH, Fr | 1 | $16.56 | Available to order | 1 |
| 16 | T2303052 Bracket, Belly Pan, RH, Rr | Bracket, Belly Pan, RH, Rr | 1 | $15.19 | Out of Stock | Notify Me |
| 17 | T2303053 Bracket, Belly Pan, LH, Fr | Bracket, Belly Pan, LH, Fr | 1 | $10.44 | Out of Stock | Notify Me |
| 18 | T2303054 Bracket, Belly Pan, LH, Rr | Bracket, Belly Pan, LH, Rr | 1 | $14.32 | Out of Stock | Notify Me |
| 19 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 20 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 2 | $2.74 | Available to order | 2 |
| 21 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 22 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 1 | $4.19 | Available to order | 1 |
| 23 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 2 | $6.77 | Available to order | 2 |
