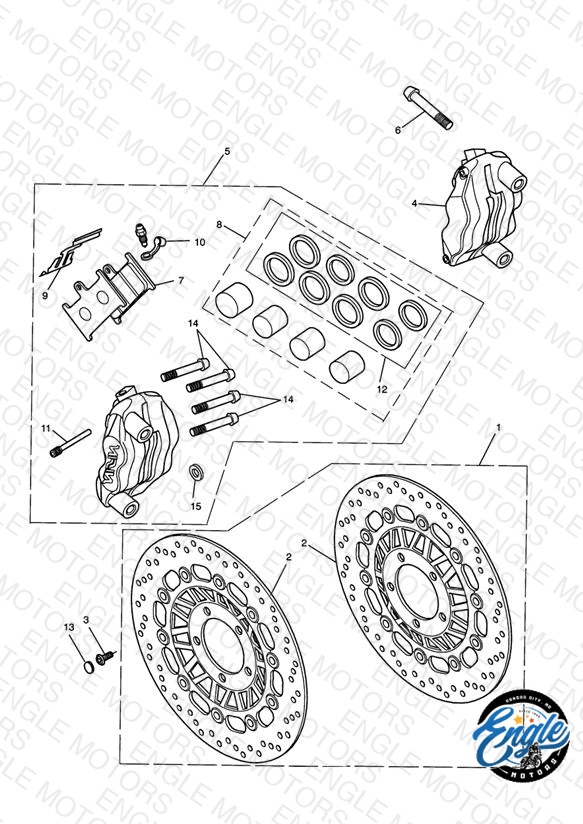

#	Part Number	Description	Qty	Price	Status
1	T2021115 Disc Set, Front Replaced by T2027110 — Disc, Assy, 320, 5 mm — Available to Order	Disc Set, Front > 350906	1	$355.67	Unavailable	1 Adds T2027110Ships within 3–7 business days
2	T2027110 Disc, Assy, 320, 5 mm	Disc, Assy, 320, 5 mm 350907 > 483575	2	$170.54	Available to order	2 Ships within 3–7 business days
2	T2027111 Disc, Assy, 320, 5mm, Black	Disc, Assy, 320, 5mm, Black 483576 >	2	$329.01	Backorder — Mid August 2026	2
3	T2023233 Bolt, Disc Replaced by T2024801 — Bolt, Disc, M8 x 30, Slv, Enc — Available to Order	Bolt, Disc > 378315	10	$8.46	Unavailable	10 Adds T2024801Ships within 3–7 business days
3	T2024801 Bolt, Disc, M8 x 30, Slv, Enc	Bolt, Disc, M8 x 30, Slv, Enc 378316 >	10	$1.90	Available to order	10 Ships within 3–7 business days
4	T2020295 Caliper Assy, Front, LH	Caliper Assy, Front, LH > 433244	1	$569.07	Obsolete	View Details
4	T2020895 Caliper Assy, Front, LH	Caliper Assy, Front, LH 433245 > 483575	1	$668.02	Out of Stock	Notify Me
4	T2021046 Caliper Assy, Front, LH, Blk	Caliper Assy, Front, LH, Blk 483576 >	1	$748.17	Backorder — Late July 2026	1
5	T2020296 Caliper Assy, Front, RH	Caliper Assy, Front, RH > 433244	1	$704.17	Available to order	1 Ships within 3–7 business days
5	T2020896 Caliper Assy, Front, RH	Caliper Assy, Front, RH 433245 > 483575	1	$721.76	Backorder — Early August 2026	1
5	T2021047 Caliper Assy, Front, RH, Blk	Caliper Assy, Front, RH, Blk 483576 >	1	$748.17	Out of Stock	Notify Me
6	T3050152 Kit, Caliper Bolts	Kit, Caliper Bolts > 446723	1	$20.99	Out of Stock	Notify Me
6	T3050174 Screw, M10 x 1.25x 65	Screw, M10 x 1.25x 65 446724 >	4	$5.42	Available to order	4 Ships within 3–7 business days
7	T2020329 Brake Pad Set, x 2 Pads	Brake Pad Set, x 2 Pads 2 pads in set	2	$86.15	Available to order	2 Ships within 3–7 business days
8	T2020465 Piston & Seal Set	Piston & Seal Set > 433244	2	$254.75	Available to order	2 Ships within 3–7 business days
8	T2020890 Piston & Seal Set, Half Nymfron	Piston & Seal Set, Half Nymfron 433245 >	2	$254.75	Available to order	2 Ships within 3–7 business days
9	T2020325 Pad Spring	Pad Spring	2	$21.75	Backorder — Late August 2026	2
10	T2020014 Bleed Screw	Bleed Screw	2	$15.27	Available to order	2 Ships within 3–7 business days
11	T2020326 Pad, Retainer	Pad, Retainer	2	$38.31	Available to order	2 Ships within 3–7 business days
12	T2020243 Seal Kit	Seal Kit > 433244	2	$114.08	Available to order	2 Ships within 3–7 business days
12	T2020574 Seal Set, Half Nymfron	Seal Set, Half Nymfron 433245 >	2	$114.08	Backorder — Late July 2026	2
13	T3450200 Plug, Caphead, Chrome	Plug, Caphead, Chrome > 378315	10	$4.19	Available to order	10 Ships within 3–7 business days
14	T2020335 Caliper Bolt	Caliper Bolt	8	$8.09	Available to order	8 Ships within 3–7 business days
15	T2020337 Seal Joint	Seal Joint	2	$2.10	Out of Stock	Notify Me
