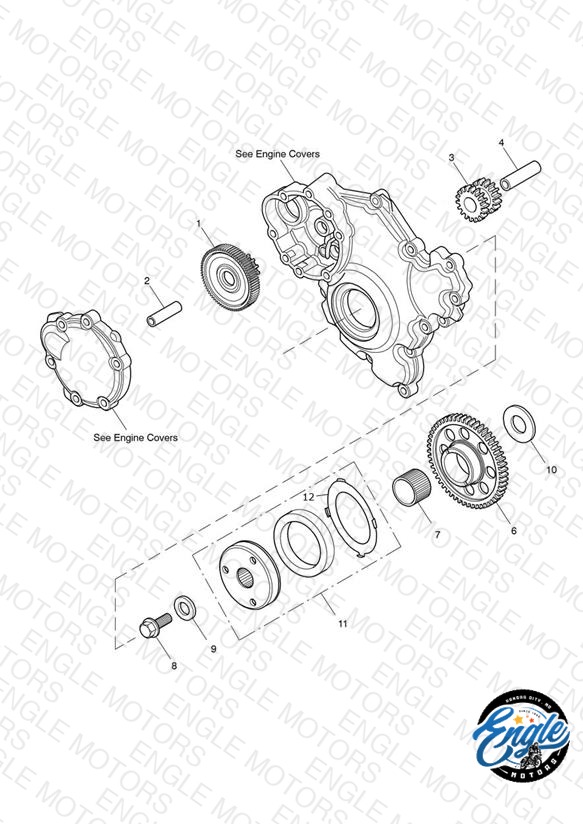

Starter Drive Gears - Eng No 506682 >
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1221464 Gear Idler, 14T/64T | Gear Idler, 14T/64T | 1 | $216.72 | Available to order | 1 |
| 2 | T1223221 Shaft | Shaft | 1 | $16.74 | Backorder — Early August 2026 | 1 |
| 3 | T1221618 Idler Gear, 16T/18T | Idler Gear, 16T/18T | 1 | $127.38 | Available to order | 1 |
| 4 | T1221106 Shaft | Shaft | 1 | $7.22 | Available to order | 1 |
| 6 | T1220051 Hub & Gear, 51T | Hub & Gear, 51T | 1 | $276.36 | Available to order | 1 |
| 7 | T3803238 Bearing, Needle | Bearing, Needle | 1 | $13.51 | Available to order | 1 |
| 8 | T3330841 Bolt, Cap/Hd, M10 x 30 | Bolt, Cap/Hd, M10 x 30 | 1 | $6.67 | Available to order | 1 |
| 9 | T3550763 Washer, 10.75 x 30 x 4 | Washer, 10.75 x 30 x 4 | 1 | $3.77 | Available to order | 1 |
| 10 | T3550777 Washer, 20, 45 x 44 x 2.5 | Washer, 20, 45 x 44 x 2.5 | 1 | $6.29 | Out of Stock | Notify Me |
| 11 | T1220090 Sprag Clutch Assembly | Sprag Clutch Assembly | 1 | $422.46 | Available to order | 1 |
| 12 | T1220080 Clip, Retainer, Sprag | Clip, Retainer, Sprag | 1 | $10.18 | Available to order | 1 |
