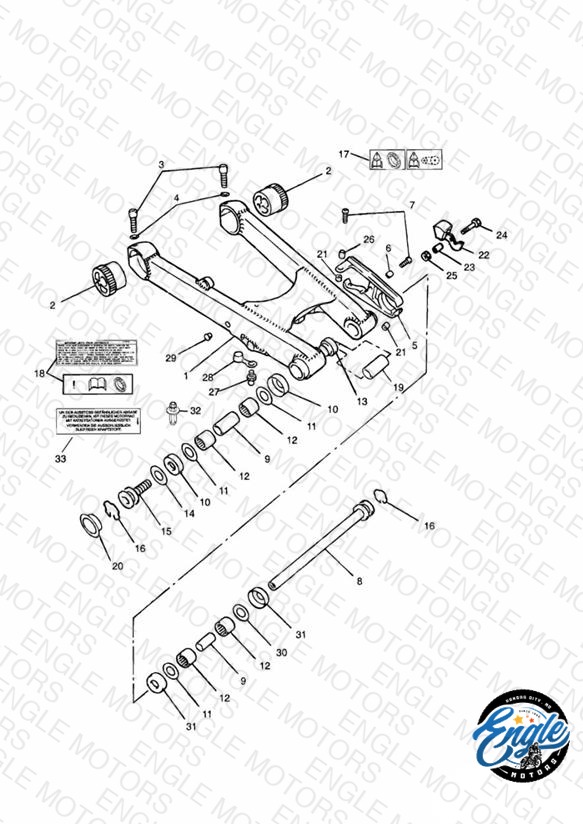

#	Part Number	Description	Qty	Price	Status
1	T2059354 Swinging arm assembly	Swinging arm assembly » 16921 Silver Includes bearings & bungs	1	$1173.17	Obsolete	View Details
1	T2059357 Swinging arm assembly	Swinging arm assembly 16922 » Black Includes bearings & bungs	1	$1173.17	Obsolete	View Details
2	2010053-T0301 Eccentric Adjuster	Eccentric Adjuster » 29155 Silver	2	$30.59	Obsolete	View Details
2	T2010054 Eccentric adjuster	Eccentric adjuster 29156 » Black	2	$27.90	Obsolete	View Details
3	3050023-T0301 Capscrew	Capscrew » 29155 M10 x 40mm	2	$1.77	Obsolete	View Details
3	T3050064 Capscrew	Capscrew 29156 » M10 x 40mm Black	2	$2.71	Obsolete	View Details
4	T3551283 Washer, M10, 10.5x18x1.6, Slv	Washer, M10, 10.5x18x1.6, Slv	2	$2.00	Available to order	2 Ships within 3–7 business days
5	2059440-T0301 Rubbing strip	Rubbing strip	1	$67.47	Available to order	1 Ships within 3–7 business days
6	T3555004 Washer, 6.4 x 14 x 1.6	Washer, 6.4 x 14 x 1.6	1	$1.40	Available to order	1 Ships within 3–7 business days
7	T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc	Screw, Pan/Hd, Tx, M6 x 25, Enc	2	$1.06	Available to order	2 Ships within 3–7 business days
8	2056002-T0301 Spindle	Spindle	1	$106.30	Obsolete	View Details
9	2056960-T0301 Sleeve	Sleeve PART NO LONGER AVAILABLE	2	$26.85	Obsolete	View Details
10	T2056008 Thrust Seal	Thrust Seal	2	$11.80	Obsolete	View Details
11	2056970-T0301 Shim	Shim PART NO LONGER AVAILABLE	2	$1.92	Obsolete	View Details
12	T3800014 Roller bearing	Roller bearing	4	$14.32	Available to order	4 Ships within 3–7 business days
13	T2056994 Plug	Plug	1	$23.40	Obsolete	View Details
14	T3555032 Washer, 17 x 30 x 3	Washer, 17 x 30 x 3 M14	1	$3.17	Available to order	1 Ships within 3–7 business days
15	2056001-T0301 Bolt special	Bolt special » 37993	1	$30.30	Obsolete	View Details
15	T2056020 Bolt special	Bolt special 37994 »	1	$28.29	Obsolete	View Details
16	3500010-T0301 Retaining ring	Retaining ring	2	$2.25	Available to order	2 Ships within 3–7 business days
17	T3900092 Label, Chain & Tyres	Label, Chain & Tyres » 16921 Drive chain UK, NZ, AU, ZA, GR, CY, HK, MY, SE	1	$5.69	Available to order	1 Ships within 3–7 business days
18	3900117-T0301 Label	Label » 16921 Tyre data UK, NZ, AU, ZA, GR, CY, HK, MY, SE	1	$5.69	Backorder — Late July 2026	1
18	3910017-T0301 Tyre Data Label, DE	Tyre Data Label, DE » 16921 Tyre data CH, DE	1	$6.84	Obsolete	View Details
18	3901117-T0301 Label	Label » 16921 Tyre data NL	1	$4.76	Obsolete	View Details
18	3902117-T0301 Label	Label » 16921 Tyre data FR	1	$4.76	Obsolete	View Details
18	3903117-T0301 Label	Label » 16921 Tyre data IT	1	$4.76	Obsolete	View Details
18	3904117-T0301 Label	Label » 16921 Tyre data AR, ES	1	$4.76	Obsolete	View Details
18	3906117-T0301 Label	Label » 16921 Tyre data JP	1	$4.76	Obsolete	View Details
18	3907117-T0301 Label	Label » 16921 Tyre data BR, PT	1	$4.76	Obsolete	View Details
19	2079213-T0301 Spacer tube	Spacer tube	1	$13.57	Obsolete	View Details
20	3450061-T0301 Cap	Cap * PART NO LONGER AVAILABLE *	2	$0.70	Obsolete	View Details
21	3350017-T0301 Riv nut	Riv nut	4	$1.39	Obsolete	View Details
22	2078695-T0301 Slider	Slider	1	$26.24	Available to order	1 Ships within 3–7 business days
23	3000050-T0301 Sleeve	Sleeve	1	$1.27	Available to order	1 Ships within 3–7 business days
24	T3202319 Bolt, HHF, M8 x 35, Slv	Bolt, HHF, M8 x 35, Slv	1	$2.63	Backorder — Mid August 2026	1
25	T3350004 Locknut, Flanged, M8 x 1.25	Locknut, Flanged, M8 x 1.25	1	$2.45	Available to order	1 Ships within 3–7 business days
26	T3010144 Flanged Sleeve, M6 x 9.5 x 10.5	Flanged Sleeve, M6 x 9.5 x 10.5	1	$3.77	Available to order	1 Ships within 3–7 business days
27	3450007-T0301 Grease nipple	Grease nipple	2	$1.91	Out of Stock	Notify Me
28	3450008-T0301 Grease cap	Grease cap * PART NO LONGER AVAILABLE *	2	$1.37	Obsolete	View Details
29	3450190-T0301 End cap	End cap	2	$0.96	Obsolete	View Details
30	T3600170 Seal, SD 25 32 04	Seal, SD 25 32 04 RH	2	$13.51	Available to order	2 Ships within 3–7 business days
31	2059345-T0301 Dust cover rh	Dust cover rh	2	$1.71	Obsolete	View Details
32	T3350039 Riv nut	Riv nut To fit hexagonal holes	—	$5.02	Out of Stock	Notify Me
32	T3350042 Riv nut	Riv nut To fit round holes	—	$3.52	Obsolete	View Details
33	T3900131 Label	Label Catalytic convertor DE	1	$4.76	Obsolete	View Details
