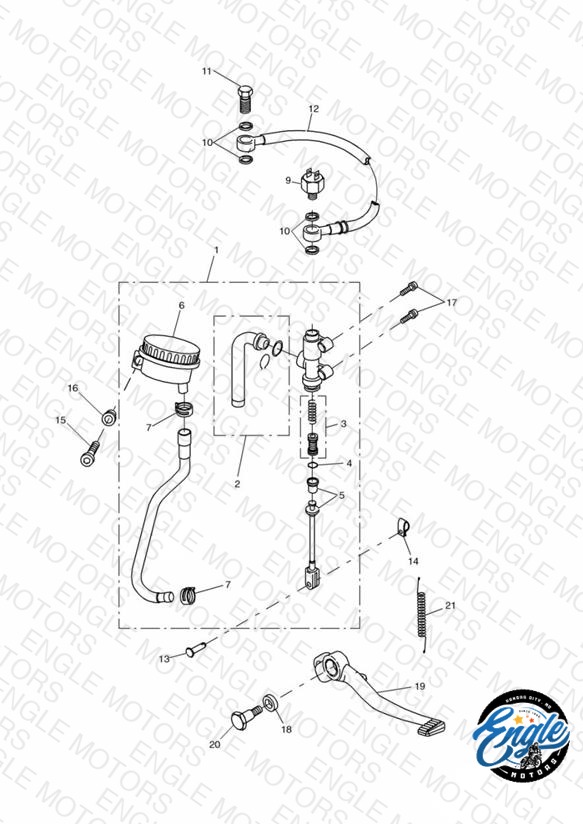

Loading schematic...
Rear Brake Master Cylinder
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2023125 Master cylinder assembly | Master cylinder assembly | 1 | $328.17 | Obsolete | View Details |
| 2 | 2020476-T0301 Connector Set, M/Cyl Rear | Connector Set, M/Cyl Rear | 1 | $21.57 | Available to order | 1 |
| 3 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 4 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 5 | T2020477 M/Cyl, Pushrod Assy | M/Cyl, Pushrod Assy | 1 | $35.35 | Out of Stock | Notify Me |
| 6 | 2020430-T0301 Reservoir | Reservoir | 1 | $34.40 | Obsolete | View Details |
| 7 | 2020440-T0301 Clip, Reservoir, M/Cyl, Rear | Clip, Reservoir, M/Cyl, Rear | 2 | $2.85 | Available to order | 2 |
| 9 | T2023120 Switch, Rear Brake | Switch, Rear Brake | 1 | $41.44 | Available to order | 1 |
| 10 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 4 | $1.07 | Available to order | 4 |
| 11 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 1 | $7.02 | Available to order | 1 |
| 12 | T2020728 Brake hose | Brake hose | 1 | $71.50 | Obsolete | View Details |
| 13 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 14 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 15 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
| 16 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $4.92 | Backorder — Early August 2026 | 1 |
| 17 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 2 | $7.42 | Available to order | 2 |
| 18 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.30 | Available to order | 1 |
| 19 | T2020346 Brake pedal | Brake pedal | 1 | $144.61 | Available to order | 1 |
| 20 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 21 | T2025339 Spring return | Spring return | 1 | $1.62 | Available to order | 1 |
