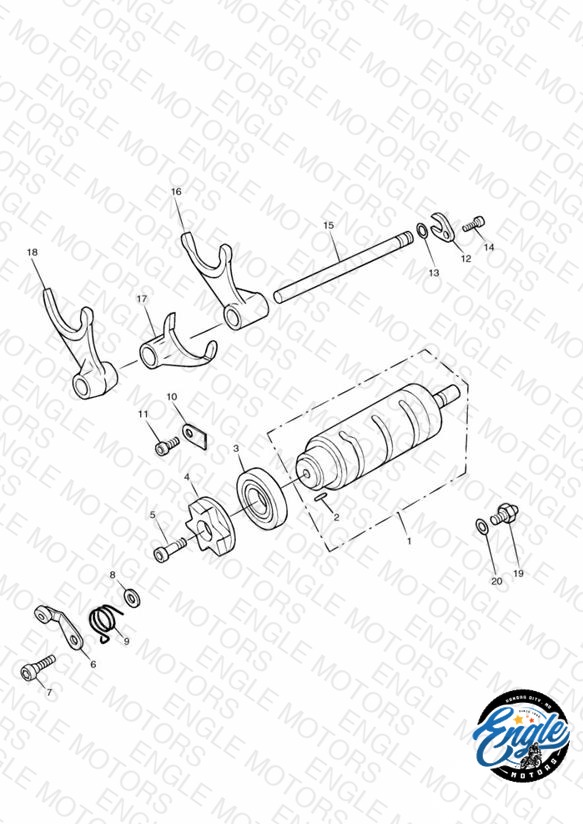

Loading schematic...
Gear Selector Drum
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190715 Selector drum assembly | Selector drum assembly | 1 | $252.87 | Obsolete | View Details |
| 2 | T3000009 Dowel | Dowel | 1 | $0.01 | Obsolete | View Details |
| 3 | T3800090 Bearing Ball, Unshld, 20x42x8 | Bearing Ball, Unshld, 20x42x8 | 1 | $7.62 | Out of Stock | Notify Me |
| 4 | T1190915 Detent wheel | Detent wheel » 161217 | 1 | $37.72 | Available to order | 1 |
| 4 | T1190590 Detent wheel | Detent wheel * Part No Longer Available * 161318 » | 1 | $19.12 | Obsolete | View Details |
| 5 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 6 | T1190596 Detent arm assembly | Detent arm assembly | 1 | $19.12 | Obsolete | View Details |
| 6 | T1190592 Detent Arm Assy | Detent Arm Assy 161318 » | 1 | $19.12 | Obsolete | View Details |
| 7 | T3050188 Bolt, Pan/HD, Shld, M6 x 16.2 | Bolt, Pan/HD, Shld, M6 x 16.2 | 1 | $0.89 | Available to order | 1 |
| 8 | T3550228 Washer, Hardened, 6.4 x 12.5 x 2 | Washer, Hardened, 6.4 x 12.5 x 2 | 1 | $1.72 | Backorder — Mid August 2026 | 1 |
| 9 | T1190598 Spring, Detent Arm | Spring, Detent Arm * Part No Longer Available * | 1 | $2.40 | Obsolete | View Details |
| 10 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Out of Stock | Notify Me |
| 11 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 12 | 1190110-T0301 Plate keeper | Plate keeper » ENG NO 138474 | 1 | $2.48 | Available to order | 1 |
| 12 | T1190101 Keeper Plate, Selector Shaft | Keeper Plate, Selector Shaft ENG NO 138475 » | 1 | $5.14 | Available to order | 1 |
| 13 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 14 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 15 | T1190599 Selector shaft | Selector shaft » ENG NO 138474 | 1 | $42.05 | Obsolete | View Details |
| 15 | T1191111 Shaft, Selector | Shaft, Selector ENG NO 138475 » | 1 | $14.89 | Available to order | 1 |
| 16 | T1191002 Fork, C, Selector, Output | Fork, C, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 17 | T1191001 Selector fork | Selector fork Input | 1 | $96.97 | Available to order | 1 |
| 18 | T1191000 Fork, A, Selector, Output | Fork, A, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 19 | T1190494 Neutral Indicator Switch | Neutral Indicator Switch | 1 | $39.24 | Available to order | 1 |
| 20 | 3550020-T0301 Sealing Washer, M10 | Sealing Washer, M10 | 1 | $0.90 | Obsolete | View Details |
