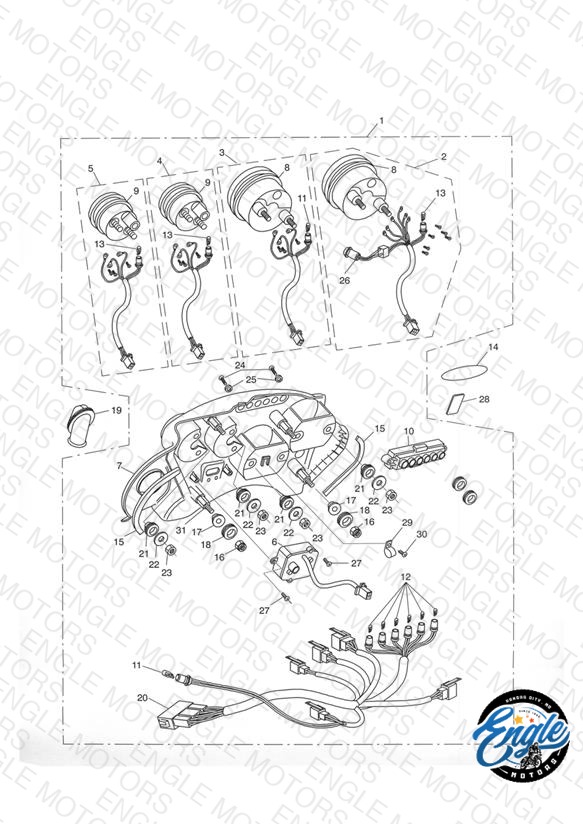

Loading schematic...
Instruments
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501144 Instrument assembly | Instrument assembly MPH | 1 | $1410.59 | Obsolete | View Details |
| 1 | T2501149 Instrument assembly | Instrument assembly KPH | 1 | $1410.59 | Obsolete | View Details |
| 2 | T2504021 Speedometer | Speedometer MPH | 1 | $406.34 | Obsolete | View Details |
| 2 | T2504022 Speedometer | Speedometer KPH | 1 | $363.43 | Obsolete | View Details |
| 3 | T2504116 Gauge tachometer | Gauge tachometer | 1 | $339.97 | Obsolete | View Details |
| 4 | T2504204 Gauge temperature | Gauge temperature | 1 | $231.27 | Obsolete | View Details |
| 5 | T2504255 Gauge fuel | Gauge fuel | 1 | $275.65 | Available to order | 1 |
| 6 | T2504351 Clock | Clock | 1 | $259.70 | Obsolete | View Details |
| 7 | T2502097 Facia | Facia | 1 | $182.47 | Out of Stock | Notify Me |
| 8 | T2500480 Seal rubber | Seal rubber | 2 | $32.34 | Obsolete | View Details |
| 9 | T2500481 Seal rubber | Seal rubber | 2 | $54.26 | Obsolete | View Details |
| 10 | T2504320 Warning lt unit | Warning lt unit | 1 | $86.01 | Obsolete | View Details |
| 11 | 2500085-T0301 Bulb | Bulb TACHO GAUGE & CLOCK | 2 | $5.60 | Backorder — Late July 2026 | 2 |
| 12 | T2500090 Bulb | Bulb WARNING LIGHTS | 6 | $6.14 | Available to order | 6 |
| 13 | 2500095-T0301 Bulb | Bulb SPEEDO/FUEL/TEMP GAUGES | 3 | $6.14 | Available to order | 3 |
| 14 | T3900450 Badge, Oval, Plastic | Badge, Oval, Plastic | 1 | $8.53 | Out of Stock | Notify Me |
| 15 | T2501139 Facia trim | Facia trim | 2 | $10.90 | Obsolete | View Details |
| 16 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 4 | $1.13 | Available to order | 4 |
| 17 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 18 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 19 | T2501138 Cover | Cover PART NO LONGER AVAILABLE | 1 | $10.06 | Obsolete | View Details |
| 20 | T2501152 Harness instruments | Harness instruments | 1 | $131.51 | Obsolete | View Details |
| 21 | T2500479 Grommet | Grommet | 8 | $2.79 | Obsolete | View Details |
| 22 | T3350057 Washer, M5 | Washer, M5 | 8 | $1.72 | Available to order | 8 |
| 23 | T3350061 Nut, M5 | Nut, M5 | 8 | $1.72 | Available to order | 8 |
| 24 | T3330265 Screw | Screw | 2 | $3.39 | Available to order | 2 |
| 25 | T3330267 Washer | Washer | 2 | $6.14 | Available to order | 2 |
| 26 | T2501150 Button | Button | 1 | $39.08 | Obsolete | View Details |
| 27 | T2500402 Screw | Screw | 2 | $2.79 | Obsolete | View Details |
| 28 | T2300983 Cover blanking | Cover blanking ALL EXCEPT DE, ES, IT, JP, NL, SE & L I | 1 | $11.79 | Available to order | 1 |
| 29 | T2500147 P-CLIP,HARNESS,INSTRUMENTS | P-CLIP,HARNESS,INSTRUMENTS | 1 | $2.15 | Obsolete | View Details |
| 30 | T2501148 Screw | Screw | 1 | $1.65 | Obsolete | View Details |
| 31 | T2501157 SETTING BOLT,INSTRUMENT ASSY | SETTING BOLT,INSTRUMENT ASSY | 4 | $5.44 | Obsolete | View Details |
