#	Part Number	Description	Qty	Price	Status
2	T2027111 Disc, Assy, 320, 5mm, Black	Disc, Assy, 320, 5mm, Black	2	$329.01	Backorder — Mid August 2026	2
3	T2024801 Bolt, Disc, M8 x 30, Slv, Enc	Bolt, Disc, M8 x 30, Slv, Enc	10	$1.90	Available to order	10 Ships within 3–7 business days
4	T2021046 Caliper Assy, Front, LH, Blk	Caliper Assy, Front, LH, Blk	1	$748.17	Backorder — Late July 2026	1
5	T2021047 Caliper Assy, Front, RH, Blk	Caliper Assy, Front, RH, Blk	1	$748.17	Out of Stock	Notify Me
6	T3050174 Screw, M10 x 1.25x 65	Screw, M10 x 1.25x 65	4	$5.42	Available to order	4 Ships within 3–7 business days
7	T2020329 Brake Pad Set, x 2 Pads	Brake Pad Set, x 2 Pads 2 pads in set	2	$86.15	Available to order	2 Ships within 3–7 business days
8	T2020890 Piston & Seal Set, Half Nymfron	Piston & Seal Set, Half Nymfron	2	$254.75	Available to order	2 Ships within 3–7 business days
9	T2020325 Pad Spring	Pad Spring	2	$21.75	Backorder — Late August 2026	2
10	T2020014 Bleed Screw	Bleed Screw	2	$15.27	Available to order	2 Ships within 3–7 business days
11	T2020326 Pad, Retainer	Pad, Retainer	2	$38.31	Available to order	2 Ships within 3–7 business days
12	T2020574 Seal Set, Half Nymfron	Seal Set, Half Nymfron	2	$114.08	Backorder — Late July 2026	2
14	T2020335 Caliper Bolt	Caliper Bolt	8	$8.09	Available to order	8 Ships within 3–7 business days
15	T2020337 Seal Joint	Seal Joint	2	$2.10	Out of Stock	Notify Me

What Our Customers Say

What Our Customers Say

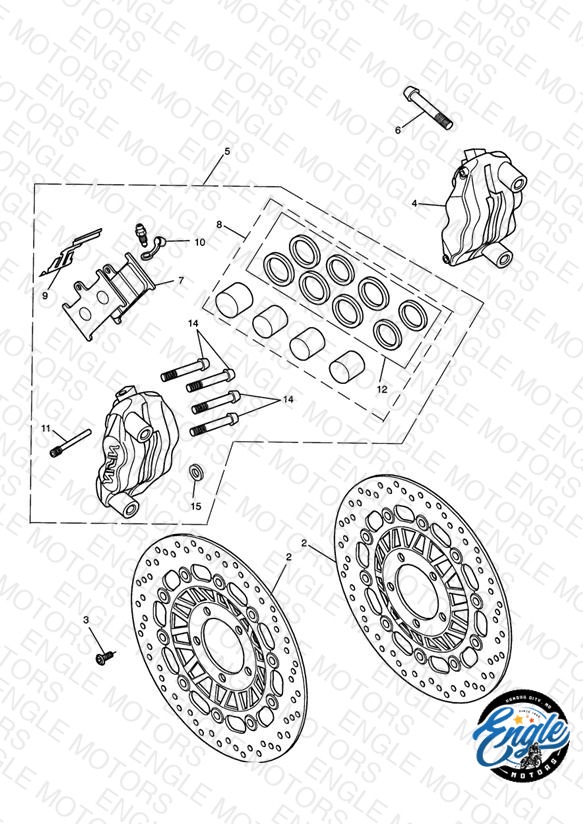

Front Brake Caliper & Discs

Parts (13)
