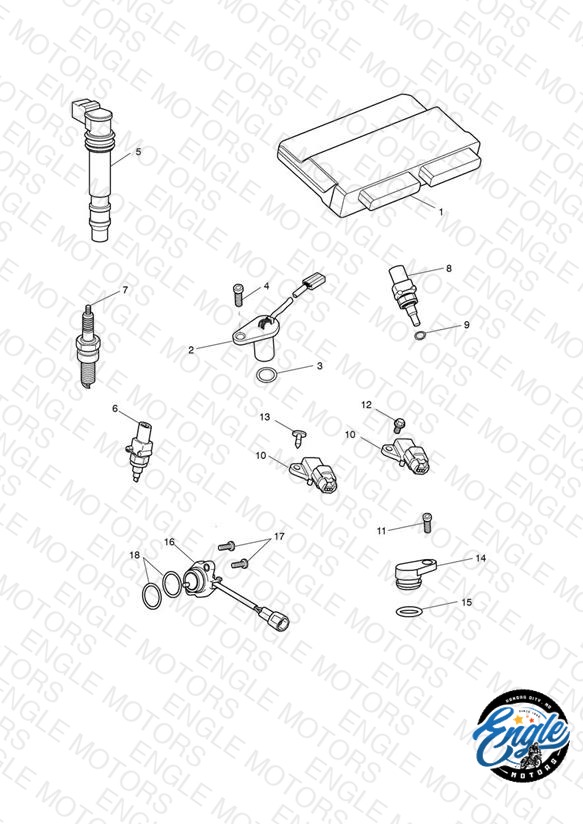

Loading schematic...
Engine Management System
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1291234 ECM Base | ECM Base | 1 | $1065.03 | Available to order | 1 |
| 2 | T1290291 Crankshaft Position Sensor | Crankshaft Position Sensor | 1 | $93.14 | Available to order | 1 |
| 3 | T1290239 O Ring, Crankshaft Sensor | O Ring, Crankshaft Sensor | 1 | $5.30 | Available to order | 1 |
| 4 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 5 | T1291509 Coil, Plug Top, Ignition, 1.4 OHM | Coil, Plug Top, Ignition, 1.4 OHM > Eng No 780647 - All Except BR; > 781372 - BR Only | 3 | $184.39 | Available to order | 3 |
| 5 | T1297890 Coil, Ignition | Coil, Ignition Eng No 780648 > - All Except BR; 781373 > - BR Only | 3 | $184.39 | Available to order | 3 |
| 6 | T1297000 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $57.48 | Out of Stock | Notify Me |
| 7 | T1295151 Spark Plug, Iridium | Spark Plug, Iridium | 3 | $17.50 | Available to order | 3 |
| 8 | T2100808 Sensor, Engine Coolant | Sensor, Engine Coolant | 1 | $54.02 | Available to order | 1 |
| 9 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 10 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 2 | $144.49 | Available to order | 2 |
| 11 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 12 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 13 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 1 | $1.21 | Available to order | 1 |
| 14 | T1164500 Blanking Plug | Blanking Plug | 1 | $2.55 | Available to order | 1 |
| 15 | T3600085 O-Ring, ID 14.6, SD 2.4 | O-Ring, ID 14.6, SD 2.4 | 1 | $4.01 | Available to order | 1 |
| 16 | T1292057 Gear Position Sensor | Gear Position Sensor | 1 | $119.76 | Available to order | 1 |
| 17 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 18 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
