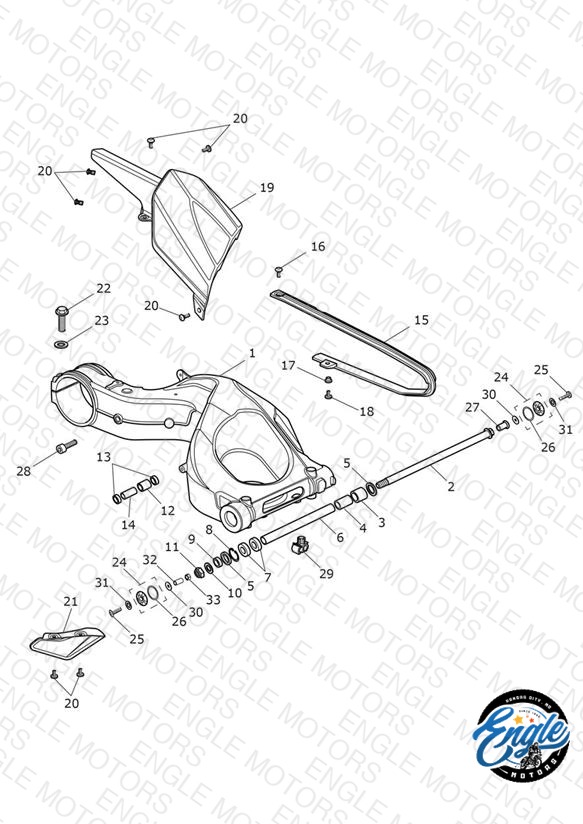

Rear Swingarm
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050605 Swingarm Assembly | Swingarm Assembly Includes items 3, 4, 5, 6, 7, 8, 12, 13 & 14 | 1 | $1373.08 | Backorder — Late July 2026 | 1 |
| 2 | T2054088 Spindle, Swingarm | Spindle, Swingarm | 1 | $91.26 | Available to order | 1 |
| 3 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 4 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 5 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 2 | $10.44 | Available to order | 2 |
| 6 | T2054089 Spacer, 22 x 17 x 212 | Spacer, 22 x 17 x 212 | 1 | $19.47 | Available to order | 1 |
| 7 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 8 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 9 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 10 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 1 | $2.63 | Available to order | 1 |
| 11 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 12 | T3800137 Bearing, Needle Roller 17 x 24 x 25 | Bearing, Needle Roller 17 x 24 x 25 | 1 | $61.79 | Available to order | 1 |
| 13 | T3600066 Oil Seal, 24 17 5 | Oil Seal, 24 17 5 | 2 | $8.53 | Available to order | 2 |
| 14 | T2050019 Sleeve | Sleeve | 1 | $40.22 | Available to order | 1 |
| 15 | T2050584 Rubbing Strip, Chain | Rubbing Strip, Chain | 1 | $48.49 | Out of Stock | Notify Me |
| 16 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 1 | $0.97 | Available to order | 1 |
| 17 | T3010065 Flanged Sleeve, M6 x 5.5 LG | Flanged Sleeve, M6 x 5.5 LG | 1 | $4.64 | Backorder — Early August 2026 | 1 |
| 18 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 19 | T2050581 Hugger, Moulding | Hugger, Moulding | 1 | $192.02 | Backorder — Late July 2026 | 1 |
| 20 | T3331005 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 7 | $8.46 | Available to order | 7 |
| 21 | T2053565 Chainguard, Lower | Chainguard, Lower | 1 | $70.35 | Out of Stock | Notify Me |
| 22 | T3331730 Bolt, HHF, M14 x 1.5 x 40, Slv | Bolt, HHF, M14 x 1.5 x 40, Slv | 1 | $25.46 | Available to order | 1 |
| 23 | T3550339 Washer, M14 | Washer, M14 | 1 | $3.24 | Backorder — Early August 2026 | 1 |
| 24 | T2050359 Finisher, Swingarm Spindle | Finisher, Swingarm Spindle | 2 | $9.78 | Out of Stock | Notify Me |
| 25 | T3330678 Screw, Csk, M5 x 30, S/S | Screw, Csk, M5 x 30, S/S | 1 | $3.33 | Available to order | 1 |
| 26 | T3600246 O Ring, ID35 x 2.5 | O Ring, ID35 x 2.5 | 2 | $4.01 | Out of Stock | Notify Me |
| 27 | T3350050 Wellnut, M5 | Wellnut, M5 | 1 | $6.65 | Available to order | 1 |
| 28 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 1 | $6.67 | Available to order | 1 |
| 29 | T3700193 Clip, Double, Firtree | Clip, Double, Firtree | 1 | $1.13 | Available to order | 1 |
| 30 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.62 | Backorder — Late August 2026 | 2 |
| 31 | T3550265 Washer, M5, C'sunk | Washer, M5, C'sunk | 2 | $4.19 | Available to order | 2 |
| 32 | T2050376 Tube, ID 5.2, OD 7.5, 14 Long | Tube, ID 5.2, OD 7.5, 14 Long | 1 | $18.16 | Available to order | 1 |
| 33 | T3350196 Nut, M8, Cylindrical | Nut, M8, Cylindrical | 1 | $4.55 | Available to order | 1 |
