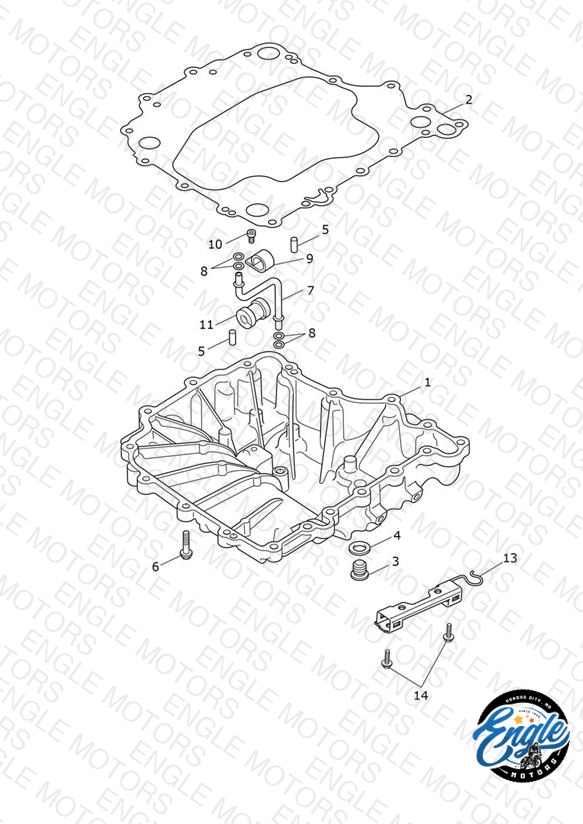

Sump
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1230160 Sump, Spares Kit | Sump, Spares Kit | 1 | $473.80 | Available to order | 1 |
| 2 | T1230190 Gasket, Sump | Gasket, Sump | 1 | $26.46 | Available to order | 1 |
| 3 | T3458989 Sump Plug, M14 x 1.5, Blk | Sump Plug, M14 x 1.5, Blk | 1 | $5.48 | Available to order | 1 |
| 4 | T3551092 Sealing Washer Multipack (25) | Sealing Washer Multipack (25) Part only available as Multipack | 1 | $27.56 | Available to order | 1 |
| 5 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 2 | $1.13 | Available to order | 2 |
| 6 | T3200148 Bolt, RHHF, M6 x 30, Slv | Bolt, RHHF, M6 x 30, Slv | 18 | $4.45 | Available to order | 18 |
| 7 | T1230153 Drain Tube | Drain Tube | 1 | $7.27 | Available to order | 1 |
| 8 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 4 | $5.30 | Available to order | 4 |
| 9 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 1 | $3.04 | Available to order | 1 |
| 10 | T3700096 P Clip, Dia 15.9, Plastic, Blk | P Clip, Dia 15.9, Plastic, Blk | 1 | $4.92 | Available to order | 1 |
| 11 | T1230147 Bobbin, Sump | Bobbin, Sump | 1 | $5.48 | Available to order | 1 |
| 13 | T2310357 Bracket, Sumpguard Base, Rear | Bracket, Sumpguard Base, Rear | 1 | $45.92 | Available to order | 1 |
| 14 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 2 | $4.01 | Available to order | 2 |
