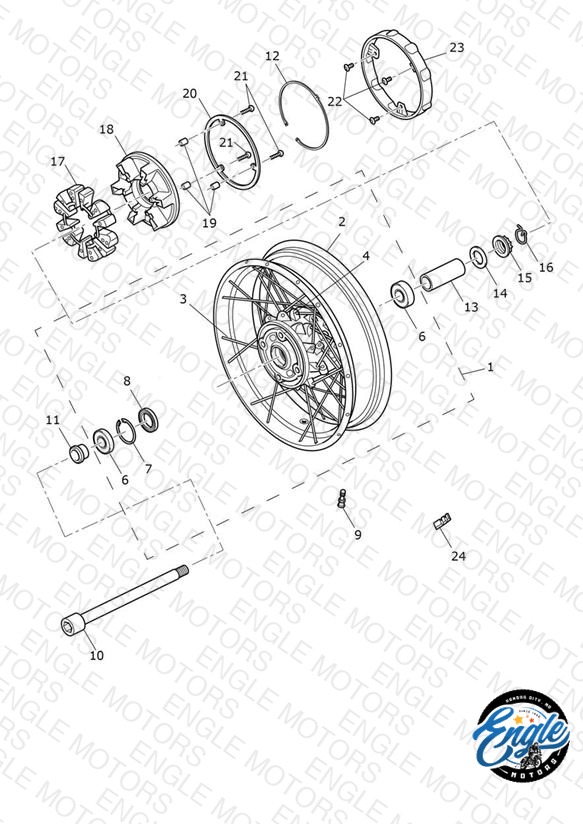

Rear Wheel
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2013081 Wheel Assy, Spoked, 18 x 4.25 | Wheel Assy, Spoked, 18 x 4.25 | 1 | $1634.61 | Available to order | 1 |
| 2 | T2011273 Rim, Rear Wheel, 18 x 4.25 | Rim, Rear Wheel, 18 x 4.25 | 1 | $755.21 | Out of Stock | Notify Me |
| 3 | T2011278 Spoke, Necked, 232, 4mm | Spoke, Necked, 232, 4mm | 40 | $13.50 | Available to order | 40 |
| 4 | T2000598 Nipple, Spoke, Locking, Slv | Nipple, Spoke, Locking, Slv | 40 | $6.94 | Available to order | 40 |
| 6 | T3800237 Bearing, Ball, 28 52 12 | Bearing, Ball, 28 52 12 | 2 | $19.15 | Available to order | 2 |
| 7 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 8 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 9 | T2000613 Valve Assembly | Valve Assembly | 1 | $5.69 | Available to order | 1 |
| 10 | T2010686 Rear Wheel Spindle | Rear Wheel Spindle | 1 | $126.02 | Available to order | 1 |
| 11 | T2010706 Spacer, Stepped | Spacer, Stepped | 1 | $27.27 | Out of Stock | Notify Me |
| 12 | T3502210 Circlip, Int 160 | Circlip, Int 160 | 1 | $7.71 | Out of Stock | Notify Me |
| 13 | T2010704 Spacer, Tubular | Spacer, Tubular | 1 | $82.45 | Out of Stock | Notify Me |
| 14 | T3550802 Washer, 28.5 x 45 x 3 | Washer, 28.5 x 45 x 3 | 1 | $6.83 | Out of Stock | Notify Me |
| 15 | T3350675 Nut, Flgd, M24 | Nut, Flgd, M24 | 1 | $32.11 | Available to order | 1 |
| 16 | T3700845 Clip, Locking Nut | Clip, Locking Nut | 1 | $2.63 | Available to order | 1 |
| 17 | T2011313 Cush Rubber | Cush Rubber | 1 | $39.46 | Available to order | 1 |
| 18 | T2012142 Cush Drive Plate | Cush Drive Plate | 1 | $268.73 | Out of Stock | Notify Me |
| 19 | T3012100 Spacer, 5.2 x 10 x 12.6 | Spacer, 5.2 x 10 x 12.6 | 3 | $21.51 | Available to order | 3 |
| 20 | T2011436 Thrust Plate, Cush Drive | Thrust Plate, Cush Drive | 1 | $21.51 | Available to order | 1 |
| 21 | T3330659 Screw, Pan/Hd, TX, M5 x 25, Enc | Screw, Pan/Hd, TX, M5 x 25, Enc | 3 | $3.73 | Available to order | 3 |
| 22 | T3330960 Screw, But/Hd, M5 x 12, Slv Enc | Screw, But/Hd, M5 x 12, Slv Enc | 3 | $3.52 | Available to order | 3 |
| 23 | T2010732 Cush Cover | Cush Cover | 1 | $17.21 | Out of Stock | Notify Me |
| 24 | T2007102 Wheel Weight, 5g, Black | Wheel Weight, 5g, Black | — | $11.01 | Available to order | 1 |
| 24 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
