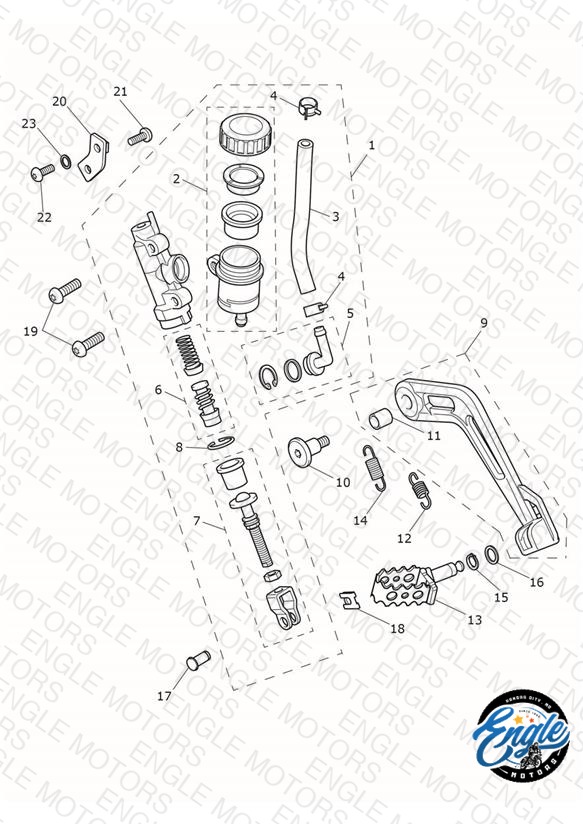

Rear Brake Master Cylinder
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2023107 Rear Master Cylinder Assembly | Rear Master Cylinder Assembly | 1 | $215.32 | Out of Stock | Notify Me |
| 2 | T2024078 Rear Reservoir, Tank Assy | Rear Reservoir, Tank Assy | 1 | $48.49 | Available to order | 1 |
| 3 | T2023078 Hose, Rear M/Cyl, Reservoir | Hose, Rear M/Cyl, Reservoir | 1 | $37.02 | Backorder — Late July 2026 | 1 |
| 4 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 5 | T2023189 Connection Set | Connection Set | 1 | $26.78 | Available to order | 1 |
| 6 | T2022110 Piston Set, Rear Master Cylinder | Piston Set, Rear Master Cylinder | 1 | $68.42 | Available to order | 1 |
| 7 | T2023079 Push Rod Assembly | Push Rod Assembly | 1 | $42.39 | Out of Stock | Notify Me |
| 8 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 9 | T2022195 Brake Pedal Assembly | Brake Pedal Assembly | 1 | $1673.75 | Backorder — Late August 2026 | 1 |
| 10 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 11 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.30 | Available to order | 1 |
| 12 | T2025436 Return Spring, Brake Pedal | Return Spring, Brake Pedal | 1 | $2.00 | Available to order | 1 |
| 13 | T2023389 Grip, Brake Pedal, Double-Side | Grip, Brake Pedal, Double-Side | 1 | $142.39 | Available to order | 1 |
| 14 | T2020897 Spring, Brake Lever Return | Spring, Brake Lever Return | 1 | $2.25 | Available to order | 1 |
| 15 | T3500219 Circlip, DIN 471011 | Circlip, DIN 471011 | 1 | $2.74 | Available to order | 1 |
| 16 | T3550903 Washer, 11.4 x 15.5 x 1.2 | Washer, 11.4 x 15.5 x 1.2 | 1 | $5.02 | Available to order | 1 |
| 17 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 18 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 19 | T3335015 Screw, But/Hd, TX, M8 x 30 | Screw, But/Hd, TX, M8 x 30 | 2 | $8.33 | Available to order | 2 |
| 20 | T2023081 Bracket, Rear Reservoir | Bracket, Rear Reservoir | 1 | $5.95 | Out of Stock | Notify Me |
| 21 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $0.97 | Available to order | 1 |
| 22 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 1 | $2.63 | Available to order | 1 |
| 23 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 1 | $1.69 | Available to order | 1 |
