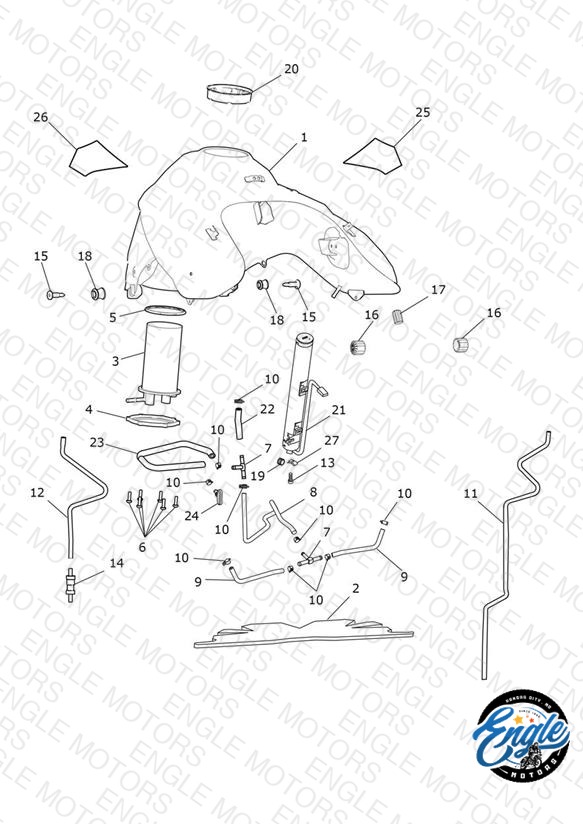

Fuel Tank, Fuel Pump & Fittings
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401862-NW Fuel Tank Assembly | Fuel Tank Assembly Crystal White; Includes heat pad, item 2 & Decals items 25 & 26 - > 955859 All Except BR & > 955845 BR Only | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2401862-PG Fuel Tank Assembly | Fuel Tank Assembly Jet Black; Includes heat pad, item 2 & Decals items 25 & 26 - > 955859 All Except BR & > 955845 BR Only | 1 | $1443.21 | Available to order | 1 |
| 1 | T2401862-HS Fuel Tank Assembly | Fuel Tank Assembly Matt Khaki; Includes heat pad, item 2 & Decals items 25 & 26 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2401862-NK Fuel Tank Assembly | Fuel Tank Assembly Pure White; Includes heat pad, item 2 & Decals items 25 & 26 - 955860 > All Except BR & > 955846 BR Only | 1 | $1741.80 | Available to order | 1 |
| 1 | T2401862-LI Fuel Tank Assembly | Fuel Tank Assembly Storm Grey; Includes heat pad, item 2 & Decals items 25 & 26 - 955860 > All Except BR & > 955846 BR Only | 1 | $1741.80 | Backorder — Late July 2026 | 1 |
| 1 | T2403987-GN Fuel Tank Assembly | Fuel Tank Assembly Desert Edition - Havana 2; Includes heat pad, item 2 & Decals items 25, 26, 27, 28 & 29 | 1 | $1741.80 | Available to order | 1 |
| 2 | T2407067 Heat Pad, Fuel Tank | Heat Pad, Fuel Tank | 1 | $57.60 | Available to order | 1 |
| 3 | T2403892 Pump, Fuel, 3.5 Bar | Pump, Fuel, 3.5 Bar | 1 | $180.73 | Backorder — Mid August 2026 | 1 |
| 4 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 5 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 6 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 7 | T2400885 T-Piece, Fuel Transfer, Casting | T-Piece, Fuel Transfer, Casting | 2 | $14.16 | Available to order | 2 |
| 8 | T2401139 Fuel Transfer Pipe, Centre | Fuel Transfer Pipe, Centre | 1 | $36.58 | Available to order | 1 |
| 9 | T2409029 Fuel Transfer Pipe, Side | Fuel Transfer Pipe, Side | 2 | $24.11 | Available to order | 2 |
| 10 | T3703073 Hose Clip, Covered End, Dia 12 | Hose Clip, Covered End, Dia 12 | 10 | $1.62 | Available to order | 10 |
| 11 | T2400433 Hose, Fuel Tank Drain | Hose, Fuel Tank Drain | 1 | $10.71 | Available to order | 1 |
| 12 | T2400431 Hose, Tank To Roll Over Valve | Hose, Tank To Roll Over Valve | 1 | $17.28 | Available to order | 1 |
| 13 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 2 | $0.97 | Available to order | 2 |
| 14 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Out of Stock | Notify Me |
| 15 | T2403002 Bolt, Fuel Tank Mounting | Bolt, Fuel Tank Mounting | 2 | $2.17 | Available to order | 2 |
| 16 | T2401123 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 17 | T2401364 Bush, Tank Mount, Central | Bush, Tank Mount, Central | 1 | $2.74 | Available to order | 1 |
| 18 | T2407030 Bush, Fuel Tank, Concave | Bush, Fuel Tank, Concave | 2 | $2.74 | Available to order | 2 |
| 19 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 20 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 21 | T2400733 Fuel Level Sender, Tube Type | Fuel Level Sender, Tube Type | 1 | $140.69 | Available to order | 1 |
| 22 | T2400894 Hose, Fuel Transfer, Rear | Hose, Fuel Transfer, Rear | 1 | $24.11 | Available to order | 1 |
| 23 | T2401569 Hose, Fuel Drain | Hose, Fuel Drain | 1 | $11.79 | Available to order | 1 |
| 24 | T2400893 Bung, Fuel Drain | Bung, Fuel Drain | 1 | $3.33 | Available to order | 1 |
| 25 | T2401659 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH Fitted to White Tanks | 1 | $58.92 | Available to order | 1 |
| 25 | T2401647 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH Fitted to Black & Grey Tanks | 1 | $45.80 | Backorder — Late July 2026 | 1 |
| 25 | T2401692 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH Fitted to Green Tanks | 1 | $58.92 | Out of Stock | Notify Me |
| 25 | T2406086 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH Fitted to Desert Edition | 1 | $46.68 | Available to order | 1 |
| 26 | T2401658 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH Fitted to White Tanks | 1 | $45.80 | Available to order | 1 |
| 26 | T2401646 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH Fitted to Black & Grey Tanks | 1 | $58.92 | Out of Stock | Notify Me |
| 26 | T2401691 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH Fitted to Green Tanks | 1 | $58.92 | Backorder — Late July 2026 | 1 |
| 26 | T2406072 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH Fitted to Desert Edition | 1 | $46.68 | Available to order | 1 |
| 27 | T3550129 Washer, ID 6.5, OD18, Thk 1.6, SS | Washer, ID 6.5, OD18, Thk 1.6, SS | 2 | $0.71 | Unavailable | View Details |
| 28 | T2311063 Decal, Desert Edition | Decal, Desert Edition Fitted to Desert Edition | 1 | $37.35 | Available to order | 1 |
| 29 | T2406024 Decal, Tiger 1200, LH, Desert | Decal, Tiger 1200, LH, Desert Fitted to Desert Edition | 1 | $58.71 | Available to order | 1 |
| 30 | T2406073 Decal, Tiger 1200, RH, Desert | Decal, Tiger 1200, RH, Desert Fitted to Desert Edition | 1 | $58.71 | Backorder — Late July 2026 | 1 |
