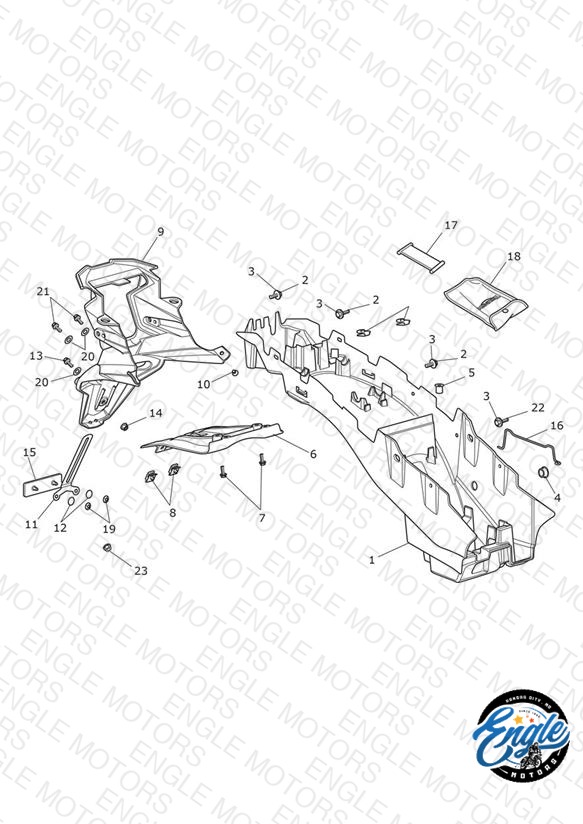

Rear Mudguard & Battery Box
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2308720 Battery Tray, Moulded | Battery Tray, Moulded | 1 | $39.92 | Out of Stock | Notify Me |
| 2 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 3 | $5.60 | Available to order | 3 |
| 3 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.21 | Available to order | 4 |
| 4 | T3451400 Plug, Dia 17.5mm | Plug, Dia 17.5mm | 1 | $2.10 | Available to order | 1 |
| 5 | 3350060-T0301 Wellnut, M6 | Wellnut, M6 | 1 | $6.73 | Available to order | 1 |
| 6 | T2308205 Undertray, Moulding | Undertray, Moulding | 1 | $95.04 | Available to order | 1 |
| 7 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 8 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 4 | $4.92 | Backorder — Early August 2026 | 4 |
| 9 | T2303019 Number Plate Hanger | Number Plate Hanger | 1 | $74.12 | Available to order | 1 |
| 10 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 2 | $5.24 | Available to order | 2 |
| 11 | T2701073 Reflector Bracket | Reflector Bracket All Markets Except BR | 1 | $9.49 | Available to order | 1 |
| 12 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 2 | $5.30 | Available to order | 2 |
| 13 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 14 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 All Markets Except US, CA, AR, ZA, ID & KR | 1 | $0.67 | Available to order | 1 |
| 15 | T2707111 Reflex Reflector | Reflex Reflector All Markets Except BR | 1 | $9.88 | Available to order | 1 |
| 15 | T2700763 Rear Reflector Spares Kit | Rear Reflector Spares Kit BR Only | 1 | $11.22 | Obsolete | View Details |
| 16 | T2308508 Wire Guide, ECU | Wire Guide, ECU | 1 | $4.74 | Backorder — Mid August 2026 | 1 |
| 17 | T2501750 Battery Strap | Battery Strap | 1 | $9.41 | Available to order | 1 |
| 18 | T2309883 Toolkit, Type R | Toolkit, Type R | 1 | $104.56 | Available to order | 1 |
| 19 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining | 2 | $0.97 | Available to order | 2 |
| 20 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 3 | $1.40 | Available to order | 3 |
| 22 | T3200134 Bolt, RHHF, M6x25, Encaps | Bolt, RHHF, M6x25, Encaps | 1 | $2.74 | Available to order | 1 |
