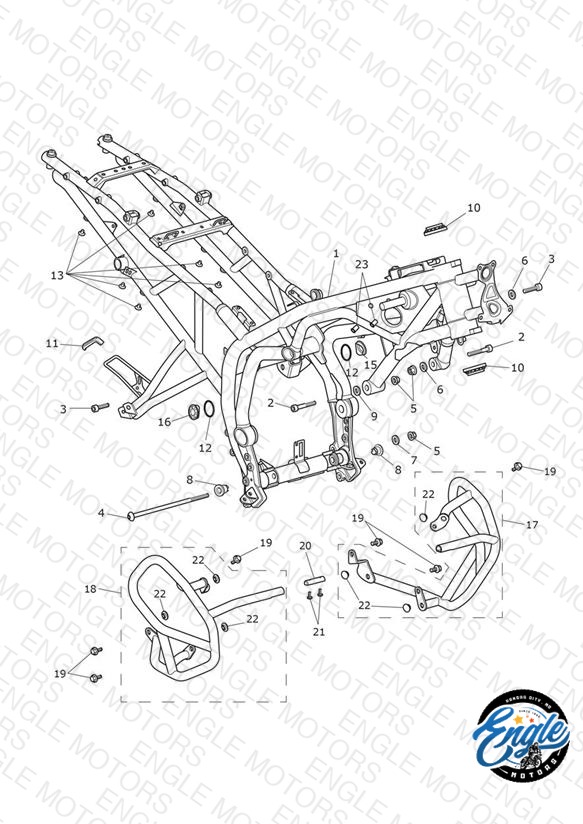

Main Frame & Fittings
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2071440 Frame Assy, World | Frame Assy, World All Markets Except US, CA & AU | 1 | $2816.60 | Out of Stock | Notify Me |
| 1 | T2071441 Frame Assy, Americas | Frame Assy, Americas US Only | 1 | $2816.60 | Out of Stock | Notify Me |
| 1 | T2071442 Frame Assy, Canada | Frame Assy, Canada CA Only | 1 | $2816.60 | Out of Stock | Notify Me |
| 1 | T2071443 Frame Assy, Australia | Frame Assy, Australia AU Only | 1 | $2816.60 | Out of Stock | Notify Me |
| 2 | T3202098 Bolt, TX, M10 x 60, Slv | Bolt, TX, M10 x 60, Slv | 2 | $7.42 | Available to order | 2 |
| 3 | T3202099 Bolt, TX, M10 x 35, Slv | Bolt, TX, M10 x 35, Slv | 2 | $13.51 | Available to order | 2 |
| 4 | T3202110 Bolt, TX, M10 x 270 | Bolt, TX, M10 x 270 | 1 | $12.16 | Available to order | 1 |
| 5 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 3 | $4.16 | Available to order | 3 |
| 6 | T2077810 Spacer, Engine Mount | Spacer, Engine Mount | 2 | $6.73 | Available to order | 2 |
| 7 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 2 | $2.74 | Available to order | 2 |
| 8 | T2078991 Frame Adjuster, M18 | Frame Adjuster, M18 | 2 | $9.78 | Out of Stock | Notify Me |
| 9 | T3555009 Washer, 10.5 x 21 x 1.22 | Washer, 10.5 x 21 x 1.22 | 1 | $1.13 | Available to order | 1 |
| 10 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 11 | T2304321 Protector, Heelguard | Protector, Heelguard | 1 | $15.72 | Available to order | 1 |
| 12 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 13 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 6 | $1.40 | Backorder — Late August 2026 | 6 |
| 15 | T2078915 Bung, Frame Cross Beam, LH | Bung, Frame Cross Beam, LH | 1 | $4.85 | Out of Stock | Notify Me |
| 16 | T2078916 Bung, Frame Cross Beam, RH | Bung, Frame Cross Beam, RH | 1 | $4.85 | Available to order | 1 |
| 17 | T2071688 Engine Dresser Bar Assy, LH | Engine Dresser Bar Assy, LH | 1 | $258.54 | Backorder — Mid August 2026 | 1 |
| 18 | T2071689 Engine Dresser Bar Assy, RH | Engine Dresser Bar Assy, RH | 1 | $258.54 | Backorder — Early August 2026 | 1 |
| 19 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 6 | $1.62 | Backorder — Early August 2026 | 6 |
| 20 | T2071686 Engine Dresser Bar Assy, Centre | Engine Dresser Bar Assy, Centre | 1 | $53.24 | Available to order | 1 |
| 21 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 22 | T3450675 Bung, Hole Dia 12, Black | Bung, Hole Dia 12, Black | 6 | $7.71 | Available to order | 6 |
| 23 | T3350217 Threaded Insert, M6 | Threaded Insert, M6 | 2 | $3.24 | Available to order | 2 |
