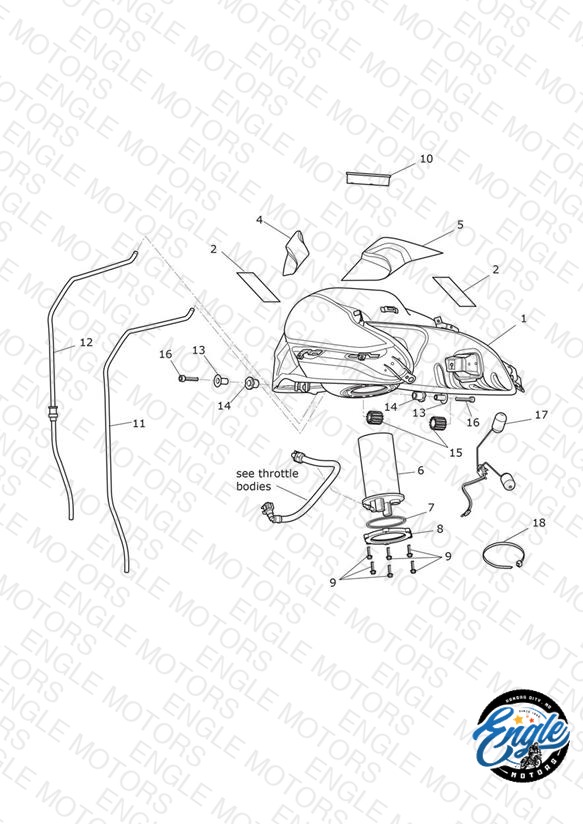

Loading schematic...
Fuel Tank, Fuel Pump & Fittings
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2404341-NW Fuel Tank Assy | Fuel Tank Assy Crystal White; Includes fuel tank infills, items 4 & 5 and decals, item 2 | 1 | $1741.80 | Backorder — Late July 2026 | 1 |
| 1 | T2404341-EI Fuel Tank Assy | Fuel Tank Assy > 761795; All Excpet BR - Intense Orange; Includes fuel tank infills, items 4 & 5 and decals, item 2 | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2404341-CX Fuel Tank Assy | Fuel Tank Assy 761796 > All Except BR; Cranberry Red; Includes fuel tank infills, items 4 & 5 and decals, item 2 | 1 | $1741.80 | Available to order | 1 |
| 2 | T2402340 Fuel Tank Decal | Fuel Tank Decal White & Orange Bikes | 2 | $46.68 | Available to order | 2 |
| 2 | T2402342 Fuel Tank Decal | Fuel Tank Decal Red Bikes | 2 | $46.68 | Available to order | 2 |
| 4 | T2400767 Fuel Tank Infill, LH | Fuel Tank Infill, LH | 1 | $65.62 | Available to order | 1 |
| 5 | T2400817 Fuel Tank Infill, RH | Fuel Tank Infill, RH | 1 | $65.62 | Out of Stock | Notify Me |
| 6 | T2403892 Pump, Fuel, 3.5 Bar | Pump, Fuel, 3.5 Bar | 1 | $180.73 | Backorder — Mid August 2026 | 1 |
| 7 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 8 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 9 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 10 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 11 | T3620435 Hose, Breather, Formed | Hose, Breather, Formed All Mkts Except US CAL, CA, HK & BR | 1 | $15.81 | Available to order | 1 |
| 11 | T3620444 Hose, Breather, Formed, Evap | Hose, Breather, Formed, Evap US CAL, CA, HK & BR Only | 1 | $15.95 | Available to order | 1 |
| 12 | T3620440 Hose, Drain, Formed | Hose, Drain, Formed | 1 | $5.60 | Available to order | 1 |
| 13 | T3010332 Flanged Sleeve | Flanged Sleeve | 2 | $11.71 | Available to order | 2 |
| 14 | T3020491 Bush, Castellated | Bush, Castellated | 2 | $3.24 | Available to order | 2 |
| 15 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 16 | T3051043 Screw, Cap/Hd, M8 x 45 | Screw, Cap/Hd, M8 x 45 | 2 | $6.65 | Available to order | 2 |
| 17 | T2401129 Level Sender | Level Sender | 1 | $87.47 | Out of Stock | Notify Me |
| 18 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
