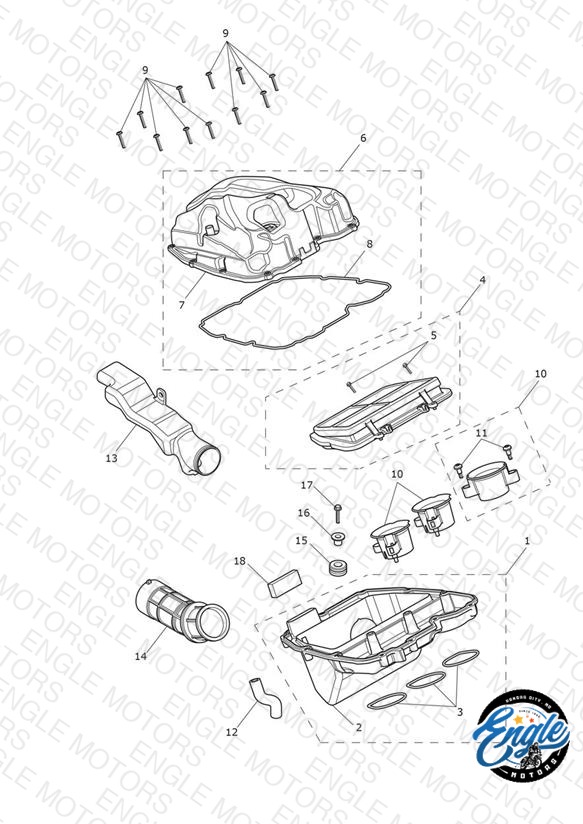

Airbox
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2202270 Lower Airbox Assembly | Lower Airbox Assembly | 1 | $188.23 | Available to order | 1 |
| 2 | T2202271 Lower Airbox Moulding | Lower Airbox Moulding | 1 | $100.76 | Available to order | 1 |
| 3 | T2208180 Airbox/Throttle Body, O Ring | Airbox/Throttle Body, O Ring | 3 | $4.88 | Available to order | 3 |
| 4 | T2200557 Air Filter Assembly | Air Filter Assembly | 1 | $43.96 | Available to order | 1 |
| 5 | T3330771 Bolt, Domed, M5 x 10 | Bolt, Domed, M5 x 10 | 2 | $6.07 | Available to order | 2 |
| 6 | T2202280 Upper Airbox Assembly | Upper Airbox Assembly | 1 | $150.18 | Available to order | 1 |
| 7 | T2202281 Upper Airbox Moulding | Upper Airbox Moulding | 1 | $51.31 | Out of Stock | Notify Me |
| 8 | T2200597 Airbox Seal | Airbox Seal | 1 | $24.18 | Available to order | 1 |
| 9 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 11 | $2.17 | Available to order | 11 |
| 10 | T2202060 Intake Trumpet Assembly | Intake Trumpet Assembly | 3 | $42.00 | Available to order | 3 |
| 11 | T3330887 Screw, Pan, Shld, M5 x 0.8 | Screw, Pan, Shld, M5 x 0.8 | 6 | $1.97 | Available to order | 6 |
| 12 | T2200616 Breather Hose, Crankcase | Breather Hose, Crankcase | 1 | $10.18 | Available to order | 1 |
| 13 | T2203438 Air Intake Duct | Air Intake Duct | 1 | $157.79 | Available to order | 1 |
| 14 | T2202275 Transition Rubber, Airbox | Transition Rubber, Airbox | 1 | $33.15 | Available to order | 1 |
| 15 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 1 | $3.39 | Available to order | 1 |
| 16 | T3010708 Flanged Sleeve, 8.4 x 12 x 12.5 | Flanged Sleeve, 8.4 x 12 x 12.5 | 1 | $2.48 | Backorder — Early August 2026 | 1 |
| 17 | T3205081 Bolt, HHF, Lghtd, M6 x 28, Enc | Bolt, HHF, Lghtd, M6 x 28, Enc | 1 | $1.51 | Out of Stock | Notify Me |
| 18 | T2200722 Breather Chamber Foam | Breather Chamber Foam | 1 | $13.82 | Out of Stock | Notify Me |
