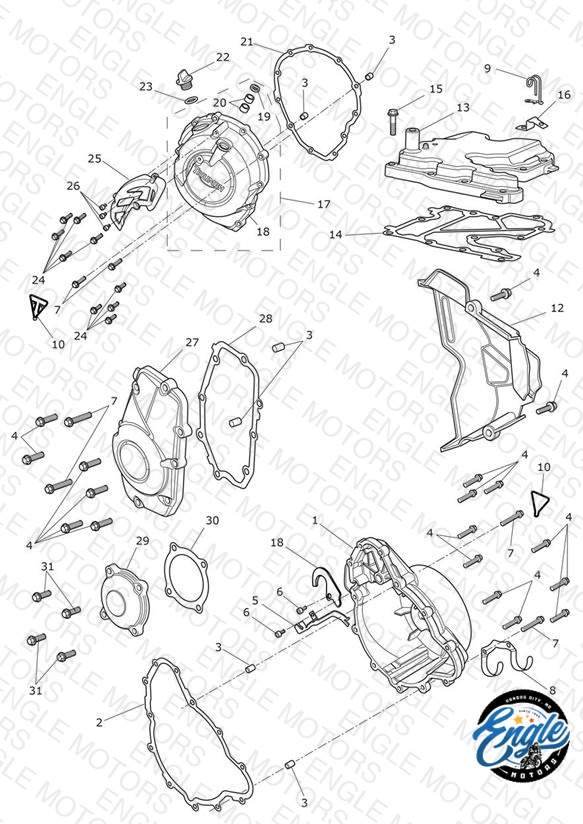

Engine Covers
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1266677 Alternator Cover, Spares | Alternator Cover, Spares > Eng No 768815 - All Except BR | 1 | $237.62 | Available to order | 1 |
| 1 | T1261188 Alternator Cover | Alternator Cover Eng No 768816 > - All Except BR | 1 | $121.69 | Available to order | 1 |
| 2 | T1260289 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $29.56 | Available to order | 1 |
| 3 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 6 | $3.90 | Backorder — Late August 2026 | 6 |
| 4 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 30 | $2.46 | Available to order | 30 |
| 5 | T1265743 Bracket, Alternator Cable Guide | Bracket, Alternator Cable Guide > Eng No 768815 - All Except BR | 1 | $17.11 | Out of Stock | Notify Me |
| 5 | T1260558 Bracket, Alternator Cable Guide | Bracket, Alternator Cable Guide Eng No 768816 > - All Except BR | 1 | $17.11 | Out of Stock | Notify Me |
| 6 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 2 | $3.04 | Available to order | 2 |
| 7 | T3205082 Bolt, HHF, Lghtd, M6 x 35, Enc | Bolt, HHF, Lghtd, M6 x 35, Enc | 6 | $2.37 | Available to order | 6 |
| 8 | T2100345 Bracket, Retaining, Water Hose | Bracket, Retaining, Water Hose | 1 | $40.38 | Available to order | 1 |
| 9 | T1243405 Guide, Fuel Hose | Guide, Fuel Hose | 1 | $4.55 | Out of Stock | Notify Me |
| 10 | T3951060 Badge, Flat, Type 1 | Badge, Flat, Type 1 | 1 | $13.33 | Available to order | 1 |
| 12 | T1260338 Sprocket Cover | Sprocket Cover | 1 | $106.47 | Out of Stock | Notify Me |
| 13 | T1260524 Breather Cover, Crinkle Black | Breather Cover, Crinkle Black | 1 | $92.25 | Out of Stock | Notify Me |
| 14 | T1260336 Gasket, Breather | Gasket, Breather | 1 | $24.51 | Out of Stock | Notify Me |
| 16 | T2508260 Connector, Tab, Subharness | Connector, Tab, Subharness | 1 | $9.49 | Available to order | 1 |
| 17 | T1260513 Clutch Cover Assembly | Clutch Cover Assembly | 1 | $306.32 | Out of Stock | Notify Me |
| 18 | T1268415 Bracket, Cable Guide, VR Sensor | Bracket, Cable Guide, VR Sensor | 1 | $17.11 | Available to order | 1 |
| 19 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 20 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 2 | $6.65 | Available to order | 2 |
| 21 | T1260141 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $13.99 | Available to order | 1 |
| 22 | T1260249 Oil Filler Cap | Oil Filler Cap | 1 | $21.39 | Available to order | 1 |
| 23 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 1 | $3.39 | Available to order | 1 |
| 24 | T3205081 Bolt, HHF, Lghtd, M6 x 28, Enc | Bolt, HHF, Lghtd, M6 x 28, Enc | 9 | $1.51 | Out of Stock | Notify Me |
| 25 | T1260255 Protector, Clutch Cover | Protector, Clutch Cover | 1 | $53.24 | Available to order | 1 |
| 26 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 3 | $3.80 | Available to order | 3 |
| 27 | T1260498 Crank Cover, Crinkle Black | Crank Cover, Crinkle Black | 1 | $211.02 | Available to order | 1 |
| 28 | T1260298 Gasket, Crank Cover | Gasket, Crank Cover | 1 | $8.06 | Available to order | 1 |
| 29 | T1260517 Balancer Cover, Crinkle Black | Balancer Cover, Crinkle Black | 1 | $184.39 | Available to order | 1 |
| 30 | T1260267 Balancer Cover Gasket | Balancer Cover Gasket | 1 | $9.10 | Available to order | 1 |
| 31 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.55 | Available to order | 4 |
