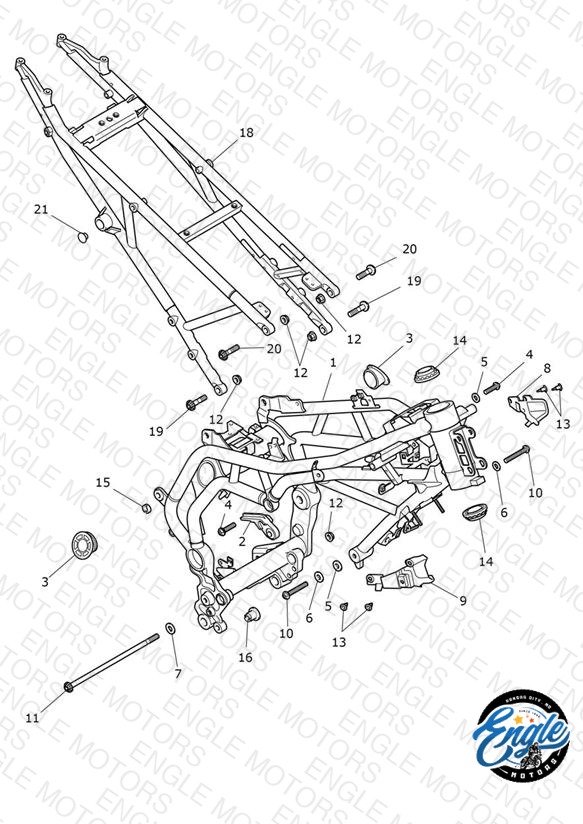

Loading schematic...
Frame & Subframe
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2077532 Main Frame Assembly, ROW, Blk | Main Frame Assembly, ROW, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 1 | T2077520 Main Frame Assembly, AU, Blk | Main Frame Assembly, AU, Blk | 1 | $1846.63 | Out of Stock | Notify Me |
| 1 | T2077522 Main Frame Assembly, BR, Blk | Main Frame Assembly, BR, Blk | 1 | $2048.37 | Out of Stock | Notify Me |
| 1 | T2077524 Main Frame Assembly, CA, Blk | Main Frame Assembly, CA, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 1 | T2077534 Main Frame Assembly, TH, Blk | Main Frame Assembly, TH, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 1 | T2077536 Main Frame Assembly, US, Blk | Main Frame Assembly, US, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 1 | T2077526 Main Frame Assembly, CN, Blk | Main Frame Assembly, CN, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 1 | T2077530 Main Frame Assembly, KR, Blk | Main Frame Assembly, KR, Blk | 1 | $1857.17 | Out of Stock | Notify Me |
| 2 | T2072769 Chain Rubbing Block | Chain Rubbing Block | 1 | $10.87 | Available to order | 1 |
| 3 | T2072770 Bung, OD59.3 | Bung, OD59.3 | 2 | $4.76 | Available to order | 2 |
| 4 | T3202099 Bolt, TX, M10 x 35, Slv | Bolt, TX, M10 x 35, Slv | 2 | $13.51 | Available to order | 2 |
| 5 | T2074159 Spacer Kit | Spacer Kit | 1 | $13.67 | Available to order | 1 |
| 6 | T3555009 Washer, 10.5 x 21 x 1.22 | Washer, 10.5 x 21 x 1.22 | 2 | $1.13 | Available to order | 2 |
| 7 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 1 | $2.74 | Available to order | 1 |
| 8 | T2077766 Infill, Headstock, LH | Infill, Headstock, LH | 1 | $38.04 | Backorder — Early August 2026 | 1 |
| 9 | T2077825 Infill Headstock, RH | Infill Headstock, RH | 1 | $38.40 | Available to order | 1 |
| 10 | T3202098 Bolt, TX, M10 x 60, Slv | Bolt, TX, M10 x 60, Slv | 2 | $7.42 | Available to order | 2 |
| 11 | T3202110 Bolt, TX, M10 x 270 | Bolt, TX, M10 x 270 | 1 | $12.16 | Available to order | 1 |
| 12 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.16 | Available to order | 5 |
| 13 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 4 | $0.97 | Available to order | 4 |
| 14 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 15 | T2076548 Adjuster, Threaded | Adjuster, Threaded | 1 | $16.42 | Available to order | 1 |
| 16 | T2078991 Frame Adjuster, M18 | Frame Adjuster, M18 | 1 | $9.78 | Out of Stock | Notify Me |
| 18 | T2072195 Rear Subframe Assembly, Silver | Rear Subframe Assembly, Silver | 1 | $741.38 | Available to order | 1 |
| 19 | T3332675 Bolt, TX, M10 x 40 | Bolt, TX, M10 x 40 | 2 | $15.12 | Available to order | 2 |
| 20 | T3334411 Bolt, TX, M10 x 35 | Bolt, TX, M10 x 35 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 21 | T3020147 Rubber Foot | Rubber Foot | 1 | $1.94 | Available to order | 1 |
