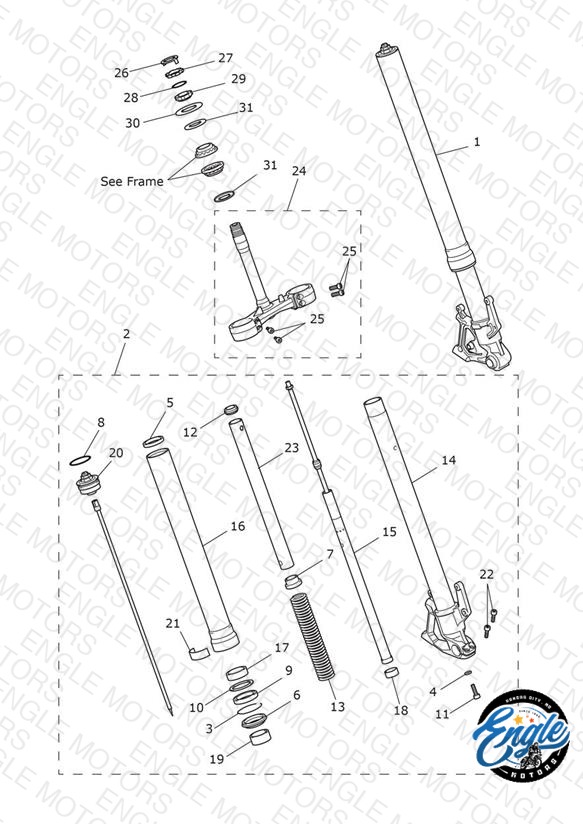

Triumph Tiger 900 & 850 Front Forks & Lower Yoke Assy — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2048710 Fork Assy, Manual, LH	Fork Assy, Manual, LH	1	$1052.76	Available to order	1 Ships within 3–7 business days
2	T2048709 Fork Assy, Manual, RH	Fork Assy, Manual, RH	1	$1052.76	Available to order	1 Ships within 3–7 business days
3	T2041690 Oil Seal Stopper Ring	Oil Seal Stopper Ring	2	$23.35	Available to order	2 Ships within 3–7 business days
4	T2042907 Sealing washer	Sealing washer	2	$1.13	Available to order	2 Ships within 3–7 business days
5	T2043347 Seat Rubber	Seat Rubber	2	$3.70	Available to order	2 Ships within 3–7 business days
6	T2043354 Dust Seal	Dust Seal	2	$13.72	Out of Stock	Notify Me
7	T2043356 SPG Joint	SPG Joint	2	$8.25	Available to order	2 Ships within 3–7 business days
8	T2046138 O Ring	O Ring	2	$3.59	Backorder — Late July 2026	2
9	T2046143 Oil Seal	Oil Seal	2	$22.33	Available to order	2 Ships within 3–7 business days
10	T2046144 Seal, Spacer	Seal, Spacer	2	$19.75	Out of Stock	Notify Me
11	T2046164 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$9.10	Available to order	2 Ships within 3–7 business days
12	T2046178 Slider	Slider	2	$13.18	Out of Stock	Notify Me
13	T2048747 Spring	Spring	2	$117.87	Available to order	2 Ships within 3–7 business days
14	T2048743 Slide Pipe, P/Comp, LH	Slide Pipe, P/Comp, LH	1	$545.70	Backorder — Late July 2026	1
14	T2048750 Slide Pipe, P/Comp, RH	Slide Pipe, P/Comp, RH	1	$545.70	Available to order	1 Ships within 3–7 business days
15	T2048744 Damper Comp, LH	Damper Comp, LH	1	$519.31	Out of Stock	Notify Me
15	T2048751 Damper Comp, RH	Damper Comp, RH	1	$519.31	Available to order	1 Ships within 3–7 business days
16	T2048745 Outer Tube	Outer Tube	2	$668.93	Available to order	2 Ships within 3–7 business days
17	T2048746 Guide Bush	Guide Bush	2	$13.51	Backorder — Mid July 2026	2
18	T2048174 Centering Plate	Centering Plate	2	$14.16	Out of Stock	Notify Me
19	T2048748 Slide Bush	Slide Bush	2	$12.46	Backorder — Early October 2026	2
20	T2048749 Fork Bolt Comp, LH	Fork Bolt Comp, LH	1	$272.65	Available to order	1 Ships within 3–7 business days
20	T2048756 Fork Bolt Comp, RH	Fork Bolt Comp, RH	1	$272.65	Available to order	1 Ships within 3–7 business days
21	T2048754 Label	Label	2	$2.22	Backorder — Mid July 2026	2
22	T2046146 Hex Socket Bolt	Hex Socket Bolt	2	$5.42	Backorder — Mid July 2026	2
23	T2043361 SPG Collar	SPG Collar	1	$41.91	Out of Stock	Notify Me
24	T2044968 Lower Yoke Assembly	Lower Yoke Assembly	1	$396.95	Available to order	1 Ships within 3–7 business days
25	T3050183 Screw, Cap/Hd, M8 x 1.25 x 25, SS	Screw, Cap/Hd, M8 x 1.25 x 25, SS	4	$2.31	Available to order	4 Ships within 3–7 business days
26	T2044184 Washer, Tabbed	Washer, Tabbed	1	$10.78	Out of Stock	Notify Me
27	T2040304 Locknut, M30	Locknut, M30	1	$20.60	Available to order	1 Ships within 3–7 business days
28	T2042738 Rubber Washer	Rubber Washer	1	$1.13	Available to order	1 Ships within 3–7 business days
29	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
30	T2046559 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.18	Available to order	1 Ships within 3–7 business days
31	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	2	$8.34	Available to order	2 Ships within 3–7 business days
