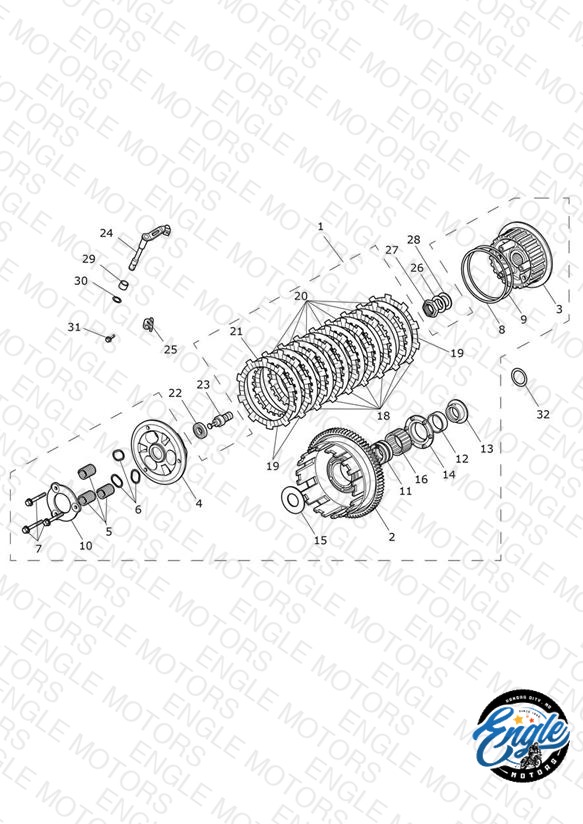

Clutch
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170890 Clutch Assembly | Clutch Assembly | 1 | $1109.34 | Available to order | 1 |
| 2 | T1170485 Clutch Outer, Assembly | Clutch Outer, Assembly | 1 | $785.27 | Available to order | 1 |
| 3 | T1170801 Centre, Clutch | Centre, Clutch | 1 | $157.79 | Available to order | 1 |
| 4 | T1170802 Plate, Clutch Pressure | Plate, Clutch Pressure | 1 | $150.18 | Available to order | 1 |
| 5 | T1170803 Spring, Clutch | Spring, Clutch | 3 | $6.55 | Available to order | 3 |
| 6 | T1170809 Seat, Clutch Spring | Seat, Clutch Spring | 3 | $7.14 | Available to order | 3 |
| 7 | T1170804 Bolt, Hex Head, M6 x 50 | Bolt, Hex Head, M6 x 50 | 3 | $2.25 | Available to order | 3 |
| 8 | T1170172 Spring, Judder | Spring, Judder | 1 | $19.65 | Available to order | 1 |
| 9 | T1170173 Seat, Judder Spring | Seat, Judder Spring | 1 | $21.51 | Available to order | 1 |
| 10 | T1170810 Plate Stopper | Plate Stopper | 1 | $150.18 | Available to order | 1 |
| 11 | T1174800 Bush, Clutch | Bush, Clutch | 1 | $54.20 | Available to order | 1 |
| 12 | T1175200 Bearing, Needle, K32 x 37 x 13 | Bearing, Needle, K32 x 37 x 13 | 1 | $19.57 | Available to order | 1 |
| 13 | T1174900 Bush, Sprocket | Bush, Sprocket | 1 | $8.46 | Out of Stock | Notify Me |
| 14 | T1170943 Sprocket, Auxillary Drive | Sprocket, Auxillary Drive | 1 | $176.81 | Out of Stock | Notify Me |
| 15 | T1174700 Washer, 25.5 x 53 x 2 | Washer, 25.5 x 53 x 2 | 1 | $10.18 | Available to order | 1 |
| 16 | T1170193 Bearing, Needle, K40 x 45 x 22 | Bearing, Needle, K40 x 45 x 22 | 1 | $21.52 | Available to order | 1 |
| 17 | T1170805 Kit, Friction Discs | Kit, Friction Discs Not Illustrated - Contains Items 18 & 19 | 1 | $288.19 | Available to order | 1 |
| 18 | T1170806 Disc, Friction, Clutch | Disc, Friction, Clutch | 6 | $30.88 | Available to order | 6 |
| 19 | T1170807 Disc, Friction, Clutch | Disc, Friction, Clutch | 3 | $30.88 | Available to order | 3 |
| 20 | T1170815 Plate, Clutch A | Plate, Clutch A | 7 | $25.55 | Available to order | 7 |
| 20 | T1170811 Clutch Plate | Clutch Plate 2.3mm, use as required to adjust pack height | — | $25.96 | Available to order | 1 |
| 20 | T1170816 Clutch Plate | Clutch Plate 1.6mm, use as required to adjust pack height | — | $25.08 | Available to order | 1 |
| 21 | T1170808 Plate, Clutch, B | Plate, Clutch, B | 1 | $54.20 | Available to order | 1 |
| 22 | T1170105 Bearing, Clutch Lifter | Bearing, Clutch Lifter | 1 | $34.05 | Available to order | 1 |
| 23 | T1175505 Lifter Piece, Clutch | Lifter Piece, Clutch | 1 | $41.82 | Out of Stock | Notify Me |
| 24 | T1170209 Lifter Arm Assy | Lifter Arm Assy | 1 | $87.73 | Available to order | 1 |
| 25 | T1170084 Bracket, Clutch Cable | Bracket, Clutch Cable | 1 | $6.94 | Available to order | 1 |
| 26 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 27 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $13.51 | Available to order | 1 |
| 28 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.64 | Available to order | 1 |
| 29 | T1170085 Spring | Spring | 1 | $6.14 | Out of Stock | Notify Me |
| 30 | T3555014 Washer, 13 x 18 x 1 | Washer, 13 x 18 x 1 | 1 | $1.27 | Backorder — Mid August 2026 | 1 |
| 31 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 32 | T3555018 Washer, 25 x 35 x 1.75 | Washer, 25 x 35 x 1.75 | 1 | $15.60 | Available to order | 1 |
