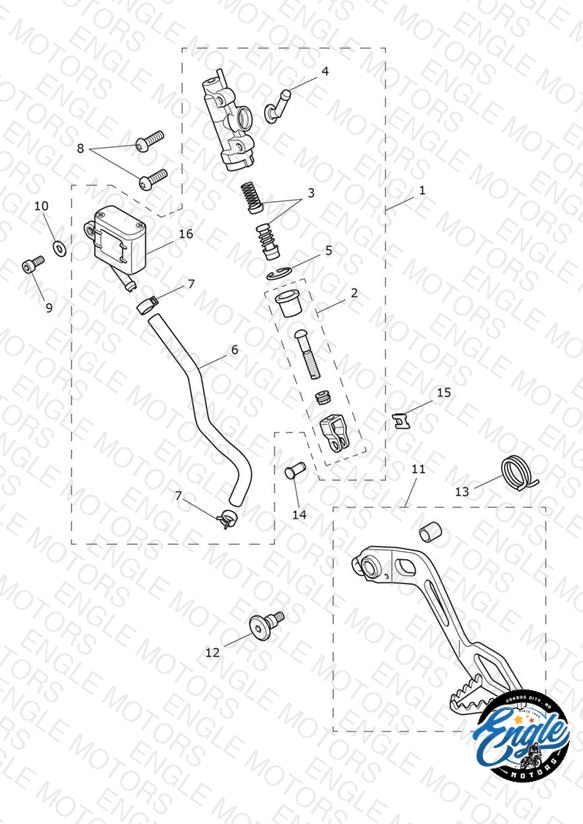

Rear Brake M/Cylinder Assy
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2024088 Rear Master Cylinder Assy | Rear Master Cylinder Assy | 1 | $279.59 | Available to order | 1 |
| 2 | T2021415 Push Rod Assy, Rear M/Cyl | Push Rod Assy, Rear M/Cyl | 1 | $43.81 | Available to order | 1 |
| 3 | T2022110 Piston Set, Rear Master Cylinder | Piston Set, Rear Master Cylinder | 1 | $68.42 | Available to order | 1 |
| 4 | T2025523 Connector Set, M/Cyl, Rear | Connector Set, M/Cyl, Rear | 1 | $26.16 | Available to order | 1 |
| 5 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 6 | T2024079 Hose, Rear M/Cyl | Hose, Rear M/Cyl | 1 | $39.60 | Backorder — Early August 2026 | 1 |
| 7 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 8 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 9 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 1 | $2.35 | Available to order | 1 |
| 10 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 11 | T2021653 Brake Pedal Assembly | Brake Pedal Assembly | 1 | $155.89 | Available to order | 1 |
| 12 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 13 | T2023102 Spring, Brake Pedal Return | Spring, Brake Pedal Return | 1 | $7.52 | Available to order | 1 |
| 14 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 15 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 16 | T2024089 Tank Assy | Tank Assy | 1 | $138.72 | Available to order | 1 |
