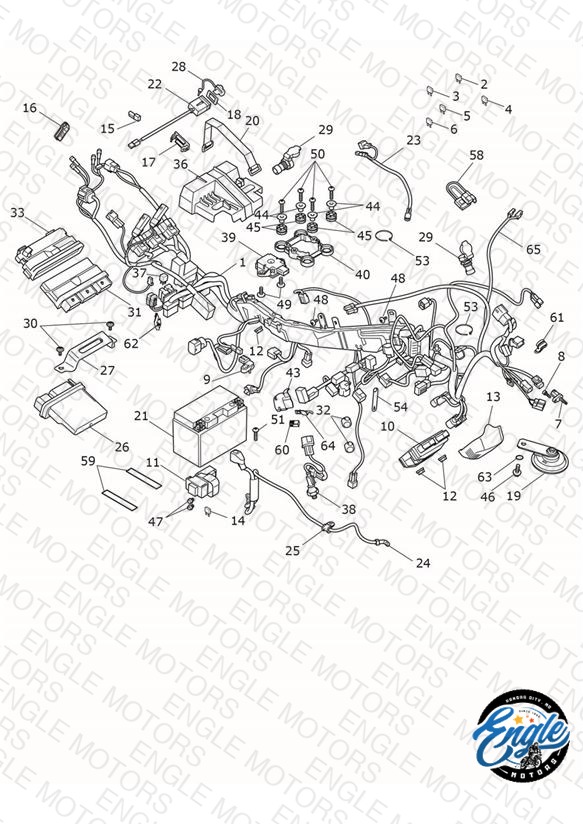

Electrical System
Parts (62)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504097 Main Harness | Main Harness | 1 | $1119.92 | Out of Stock | Notify Me |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 3 | $4.74 | Backorder — Early August 2026 | 3 |
| 3 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 2 | $4.74 | Available to order | 2 |
| 4 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 2 | $4.74 | Backorder — Early August 2026 | 2 |
| 5 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 4 | $4.74 | Out of Stock | Notify Me |
| 6 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 3 | $4.74 | Available to order | 3 |
| 7 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $64.75 | Available to order | 1 |
| 8 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $2.85 | Available to order | 1 |
| 9 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 10 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 11 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $62.35 | Available to order | 1 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 3 | $0.67 | Available to order | 3 |
| 13 | T2507988 Cover, Regulator Rectifier, Connectors | Cover, Regulator Rectifier, Connectors | 1 | $10.87 | Available to order | 1 |
| 14 | T2500805 Fuse, 30A | Fuse, 30A | 1 | $1.40 | Backorder — Late August 2026 | 1 |
| 15 | T2506561 Blanking Plug, Heated Seat Switch | Blanking Plug, Heated Seat Switch | 1 | $10.46 | Out of Stock | Notify Me |
| 15 | T2506557 Blanking Plug, Heated Seat, Black | Blanking Plug, Heated Seat, Black | 1 | $10.46 | Available to order | 1 |
| 15 | T2506556 Blanking Plug, Heated Seat, Grey | Blanking Plug, Heated Seat, Grey | 1 | $10.46 | Available to order | 1 |
| 16 | T2300883 Tweezers, Fuse | Tweezers, Fuse | 1 | $17.99 | Available to order | 1 |
| 17 | T2307136 Blank Plug, Switch | Blank Plug, Switch | 1 | $1.11 | Available to order | 1 |
| 18 | T2308282 Gasket, USB | Gasket, USB | 1 | $11.50 | Available to order | 1 |
| 19 | T2506311 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $57.53 | Available to order | 1 |
| 20 | T2501789 Battery Strap | Battery Strap | 1 | $10.55 | Available to order | 1 |
| 21 | T2506212 Kit, Battery, YT12A-BS | Kit, Battery, YT12A-BS EF/ER/GR Markets | 1 | $161.52 | Out of Stock | Notify Me |
| 21 | T2505582 Battery, 12V, 10AH | Battery, 12V, 10AH All Except EF/ER/GR/JP/BR | 1 | $154.15 | Available to order | 1 |
| 21 | T2505584 Battery, 12V, 11.2AH, FCB | Battery, 12V, 11.2AH, FCB JP Only | 1 | $170.71 | Available to order | 1 |
| 22 | T2501965 Charger, USB, 5V | Charger, USB, 5V | 1 | $40.59 | Out of Stock | Notify Me |
| 23 | T2503563 Earth Lead | Earth Lead | 1 | $15.99 | Available to order | 1 |
| 24 | T2506128 Battery Positive Lead | Battery Positive Lead | 1 | $38.99 | Available to order | 1 |
| 25 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 1 | $11.12 | Available to order | 1 |
| 26 | T2505563 Suspension Control Unit | Suspension Control Unit | 1 | $1199.49 | Out of Stock | Notify Me |
| 27 | T2505568 Bracket, SCU | Bracket, SCU | 1 | $6.97 | Out of Stock | Notify Me |
| 28 | T2502507 Cover, USB, Rubber | Cover, USB, Rubber | 1 | $5.67 | Out of Stock | Notify Me |
| 29 | T2505075 Socket, Auxillary Power | Socket, Auxillary Power | 2 | $59.87 | Available to order | 2 |
| 30 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 2 | $0.75 | Available to order | 2 |
| 31 | T2504317 Chassis Control Unit | Chassis Control Unit | 1 | $2167.76 | Available to order | 1 |
| 32 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 2 | $3.90 | Available to order | 2 |
| 33 | T2505567 Jacket, CCU | Jacket, CCU | 1 | $14.63 | Out of Stock | Notify Me |
| 36 | T2505569 Cover, ECU Moulding | Cover, ECU Moulding | 1 | $23.16 | Backorder — Early August 2026 | 1 |
| 37 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 1 | $7.53 | Backorder — Early August 2026 | 1 |
| 38 | T2507820 Subharness, Engine | Subharness, Engine | 1 | $93.14 | Available to order | 1 |
| 39 | T2508035 Inertial Measurement Unit | Inertial Measurement Unit | 1 | $431.44 | Available to order | 1 |
| 40 | T2508950 Carrier, IMU | Carrier, IMU | 1 | $37.93 | Available to order | 1 |
| 43 | T2509669 Cover, Throttle Body Connector | Cover, Throttle Body Connector | 1 | $6.50 | Out of Stock | Notify Me |
| 44 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 4 | $4.12 | Available to order | 4 |
| 45 | T3020601 Grommet, Castellated | Grommet, Castellated | 4 | $4.01 | Available to order | 4 |
| 46 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 47 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $4.88 | Available to order | 2 |
| 48 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 49 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 2 | $4.30 | Available to order | 2 |
| 50 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 4 | $1.06 | Available to order | 4 |
| 51 | T3331422 Screw, S/Tap, Torx, 5 x 20 | Screw, S/Tap, Torx, 5 x 20 | 1 | $2.63 | Available to order | 1 |
| 53 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 3 | $0.89 | Available to order | 3 |
| 54 | T3700212 Band, Rubber | Band, Rubber | 2 | $3.29 | Available to order | 2 |
| 57 | T2505828 Heatshield, Rubber | Heatshield, Rubber Not Illustrated | 1 | $33.15 | Out of Stock | Notify Me |
| 58 | T2503437 Auxilary Fly Lead, JP | Auxilary Fly Lead, JP JP Only | 1 | $23.98 | Available to order | 1 |
| 59 | T2503398 Rubber Pad | Rubber Pad | 2 | $2.98 | Out of Stock | Notify Me |
| 60 | T2505049 Blanking Plug, O2 Sensor | Blanking Plug, O2 Sensor | 1 | $6.65 | Available to order | 1 |
| 61 | T2505340 Charger, USB-C | Charger, USB-C | 1 | $112.39 | Available to order | 1 |
| 62 | T2505982 Fusebox, Mount | Fusebox, Mount | 1 | $12.66 | Available to order | 1 |
| 63 | T3551128 Washer, Serrated Lock, M8 | Washer, Serrated Lock, M8 | 1 | $1.79 | Available to order | 1 |
| 64 | T2507845 Bracket, Connector | Bracket, Connector | 1 | $11.71 | Backorder — Late July 2026 | 1 |
| 65 | T2507468 Subharness, Front | Subharness, Front | 1 | $237.81 | Available to order | 1 |
