Triumph Tiger 900 & 850 Fuel Tank, Fuel Pump & Fittings — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

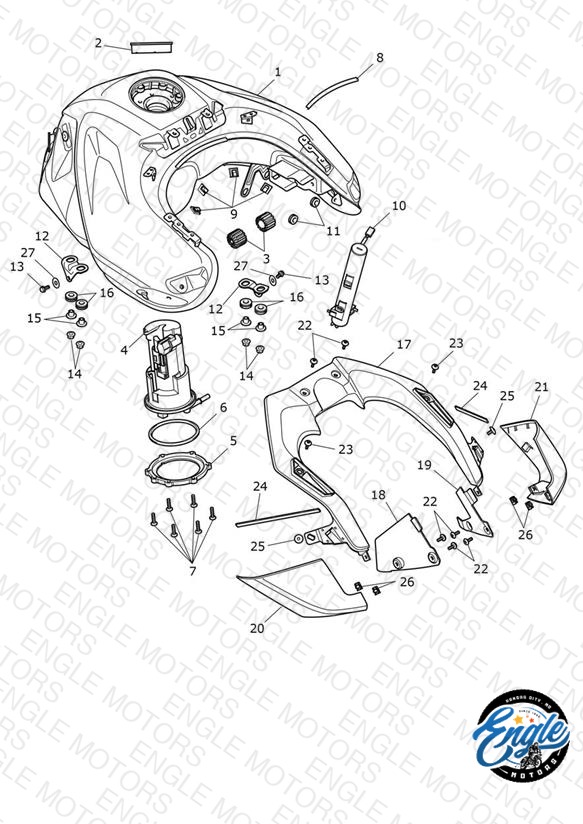

#	Part Number	Description	Qty	Price	Status
1	T2402662-NK Fuel Tank Assembly, Pure White	Fuel Tank Assembly, Pure White Pure White; Includes 2 x decals, item 27 & clips, item 9	1	$1741.80	Backorder — Late July 2026	1
2	T2405034 Seal, Fuel Filler Cap	Seal, Fuel Filler Cap	1	$8.46	Available to order	1 Ships within 3–7 business days
3	T2400603 Bush, Tank Mount	Bush, Tank Mount	2	$2.63	Available to order	2 Ships within 3–7 business days
4	T2403892 Pump, Fuel, 3.5 Bar	Pump, Fuel, 3.5 Bar	1	$180.73	Backorder — Mid August 2026	1
5	T2400562 Location Plate, Pump	Location Plate, Pump	1	$37.09	Available to order	1 Ships within 3–7 business days
6	T2401887 Seal, Fuel Pump Module	Seal, Fuel Pump Module	1	$10.25	Available to order	1 Ships within 3–7 business days
7	T3331234 Screw, Torx, P/H, M6 x 20, Slv	Screw, Torx, P/H, M6 x 20, Slv	6	$5.30	Available to order	6 Ships within 3–7 business days
8	T2401664 Trim, Flange Cover	Trim, Flange Cover	1	$7.27	Available to order	1 Ships within 3–7 business days
9	T3700296 Clip, Cable, Adhesive	Clip, Cable, Adhesive	4	$4.12	Available to order	4 Ships within 3–7 business days
10	T2408804 Fuel Level Sender	Fuel Level Sender	1	$137.94	Available to order	1 Ships within 3–7 business days
11	T3020085 Grommet, Dia 18 x 9	Grommet, Dia 18 x 9	2	$2.10	Available to order	2 Ships within 3–7 business days
12	T2409912 Bracket, Tank, Rear	Bracket, Tank, Rear	2	$10.44	Available to order	2 Ships within 3–7 business days
13	T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv	Screw, Pan/Hd, Tx, M6 x 16, Slv	2	$0.97	Available to order	2 Ships within 3–7 business days
14	T3050334 Screw, Cap/Hd, M6 x 20, Slv	Screw, Cap/Hd, M6 x 20, Slv > BE6537	4	$1.51	Available to order	4 Ships within 3–7 business days
14	T3350003 Locknut, Flanged, M6 x 1	Locknut, Flanged, M6 x 1 BE6538 >	4	$0.67	Available to order	4 Ships within 3–7 business days
15	T3010702 Flanged Sleeve, 6.4 x 10 x 8.5	Flanged Sleeve, 6.4 x 10 x 8.5	4	$5.78	Available to order	4 Ships within 3–7 business days
16	T3021100 Grommet, Dia 13 x 1.8	Grommet, Dia 13 x 1.8	4	$2.85	Available to order	4 Ships within 3–7 business days
17	T2311350 Fuel Tank Infill, Centre	Fuel Tank Infill, Centre	1	$48.47	Backorder — Late August 2026	1
18	T2311518 Tank End Panel, Infill, RH	Tank End Panel, Infill, RH	1	$48.47	Backorder — Late July 2026	1
19	T2311519 Tank End Panel, Infill, LH	Tank End Panel, Infill, LH	1	$48.47	Available to order	1 Ships within 3–7 business days
20	T2311930-NK Tank End Panel, RH, Pure White	Tank End Panel, RH, Pure White Pure White	1	$271.32	Available to order	1 Ships within 3–7 business days
21	T2311931-NK Tank End Panel, LH, Pure White	Tank End Panel, LH, Pure White Pure White	1	$271.32	Available to order	1 Ships within 3–7 business days
22	T3330943 Screw, But/Hd, M5 x 14, Slv	Screw, But/Hd, M5 x 14, Slv	6	$4.92	Available to order	6 Ships within 3–7 business days
23	T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv	Bolt, But/Hd, M5 x 11, Shld, Slv	2	$5.02	Available to order	2 Ships within 3–7 business days
24	T2311600 Foam Tape, Capping Panel	Foam Tape, Capping Panel	2	$3.67	Available to order	2 Ships within 3–7 business days
25	T3330726 Screw, Btn/Hd, M6 x 12, Slv	Screw, Btn/Hd, M6 x 12, Slv	2	$4.42	Available to order	2 Ships within 3–7 business days
26	T3350129 Nut, Captive, M5	Nut, Captive, M5	4	$3.39	Backorder — Late August 2026	4
27	T2311049 Fuel Tank Decal	Fuel Tank Decal Not illustrated	2	$34.54	Backorder — Late July 2026	2
28	T3552004 Washer, M6 x 14 x 2	Washer, M6 x 14 x 2	2	$1.91	Available to order	2 Ships within 3–7 business days
