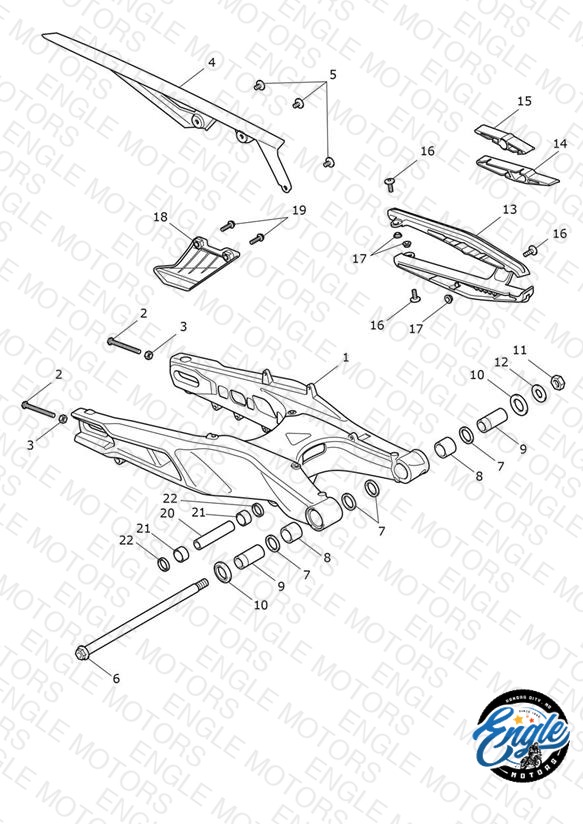

Triumph Tiger 900 & 850 Rear Swingarm — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2050983 Swingarm Spares Assembly	Swingarm Spares Assembly Includes items 7, 8, 20 & 21	1	$1434.71	Available to order	1 Ships within 3–7 business days
2	T3330644 Screw, H/HD, M8 x 75, Slv	Screw, H/HD, M8 x 75, Slv	2	$1.27	Available to order	2 Ships within 3–7 business days
3	T3350303 Nut, M8, Silver	Nut, M8, Silver	2	$0.81	Available to order	2 Ships within 3–7 business days
4	T2050993 Chainguard, Upper, Moulded	Chainguard, Upper, Moulded	1	$68.94	Available to order	1 Ships within 3–7 business days
5	T3331726 Screw, But/Hd, M6 x 12, Slv	Screw, But/Hd, M6 x 12, Slv	3	$4.30	Available to order	3 Ships within 3–7 business days
6	T2050460 Spindle, Swingarm	Spindle, Swingarm	1	$100.76	Available to order	1 Ships within 3–7 business days
7	T3600162 Oil Seal, 32 25 4	Oil Seal, 32 25 4	4	$8.53	Available to order	4 Ships within 3–7 business days
8	T3800014 Roller bearing	Roller bearing	2	$14.32	Available to order	2 Ships within 3–7 business days
9	T2052235 Sleeve, Ground	Sleeve, Ground	2	$22.98	Available to order	2 Ships within 3–7 business days
10	T2054562 Bush, Moulded	Bush, Moulded	2	$8.01	Available to order	2 Ships within 3–7 business days
11	T3350155 Locknut, Thin, M16	Locknut, Thin, M16	1	$9.41	Available to order	1 Ships within 3–7 business days
12	T3551240 Washer, M16 x 34 x 3	Washer, M16 x 34 x 3	1	$2.63	Available to order	1 Ships within 3–7 business days
13	T2052083 Rubbing Strip, Moulded	Rubbing Strip, Moulded Rubbing strip dampers are not required with this part	1	$66.53	Backorder — Mid August 2026	1
14	T2050998 Damper, Rubbing Strip, Lower	Damper, Rubbing Strip, Lower > AE7913	1	$41.44	Out of Stock	Notify Me
15	T2050997 Damper, Rubbing Strip, Upper	Damper, Rubbing Strip, Upper > AE7913	1	$41.44	Out of Stock	Notify Me
16	T3330727 Screw, But/Hd, M6 x 20, Slv	Screw, But/Hd, M6 x 20, Slv	3	$3.39	Available to order	3 Ships within 3–7 business days
17	T3010061 Flanged Sleeve, M6 x 9 x 3.25	Flanged Sleeve, M6 x 9 x 3.25	3	$7.22	Available to order	3 Ships within 3–7 business days
18	T2050994 Lower Chainguard, Moulded	Lower Chainguard, Moulded	1	$68.94	Available to order	1 Ships within 3–7 business days
19	T3202304 Bolt, RHHF, M6 x 20, Slv	Bolt, RHHF, M6 x 20, Slv	2	$5.30	Available to order	2 Ships within 3–7 business days
20	T2057399 Sleeve, Ground Steel, 90mm	Sleeve, Ground Steel, 90mm	1	$40.22	Available to order	1 Ships within 3–7 business days
21	T3800199 Bearing, Needle Roller, 20 x 26 x 20	Bearing, Needle Roller, 20 x 26 x 20	2	$16.50	Available to order	2 Ships within 3–7 business days
22	T3600178 Seal, 20 x 26 x 4	Seal, 20 x 26 x 4	2	$7.71	Available to order	2 Ships within 3–7 business days
