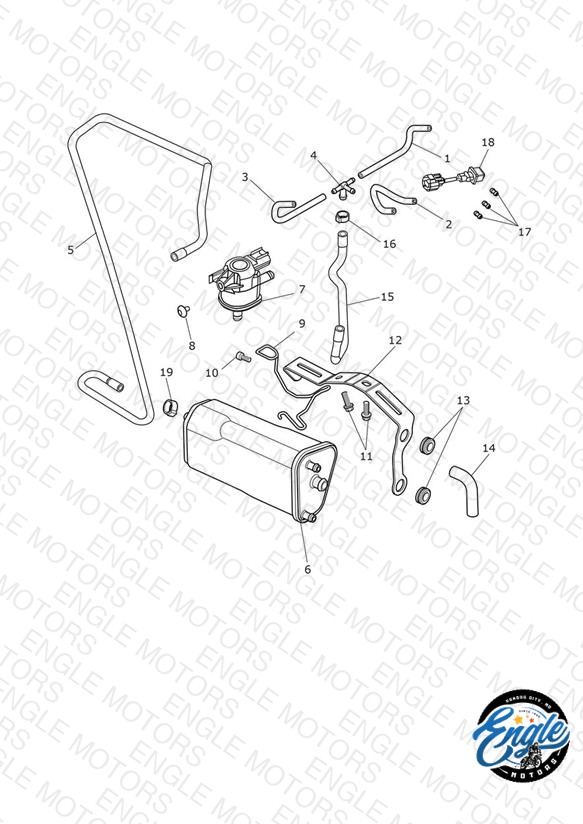

Evaporative Loss Control System
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1292075 Hose, Throttle Body, Cyl 1 | Hose, Throttle Body, Cyl 1 | 1 | $3.24 | Available to order | 1 |
| 2 | T1292076 Hose, Throttle Body, Cyl 2 | Hose, Throttle Body, Cyl 2 | 1 | $3.24 | Available to order | 1 |
| 3 | T1292077 Hose, Throttle Body, Cyl 3 | Hose, Throttle Body, Cyl 3 | 1 | $3.24 | Available to order | 1 |
| 4 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 5 | T1242474 Hose, Evap Cannister | Hose, Evap Cannister | 1 | $24.89 | Available to order | 1 |
| 6 | T2403010 Carbon Cannister | Carbon Cannister | 1 | $112.13 | Available to order | 1 |
| 7 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 8 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
| 9 | T1242457 Wire Guide, 2.5 Dia | Wire Guide, 2.5 Dia | 1 | $6.73 | Backorder — Late July 2026 | 1 |
| 10 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 1 | $3.80 | Available to order | 1 |
| 11 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 12 | T1249072 Bracket, Evap Cannister | Bracket, Evap Cannister | 1 | $96.97 | Out of Stock | Notify Me |
| 13 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 14 | T1240187 Hose, Evap Vent | Hose, Evap Vent | 1 | $14.83 | Out of Stock | Notify Me |
| 15 | T1242036 Hose, Evap, Purge | Hose, Evap, Purge | 1 | $19.57 | Available to order | 1 |
| 16 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 17 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 3 | $11.32 | Available to order | 3 |
| 18 | T2502710 Flylead, Purge Valve | Flylead, Purge Valve | 1 | $23.26 | Backorder — Mid August 2026 | 1 |
| 19 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
