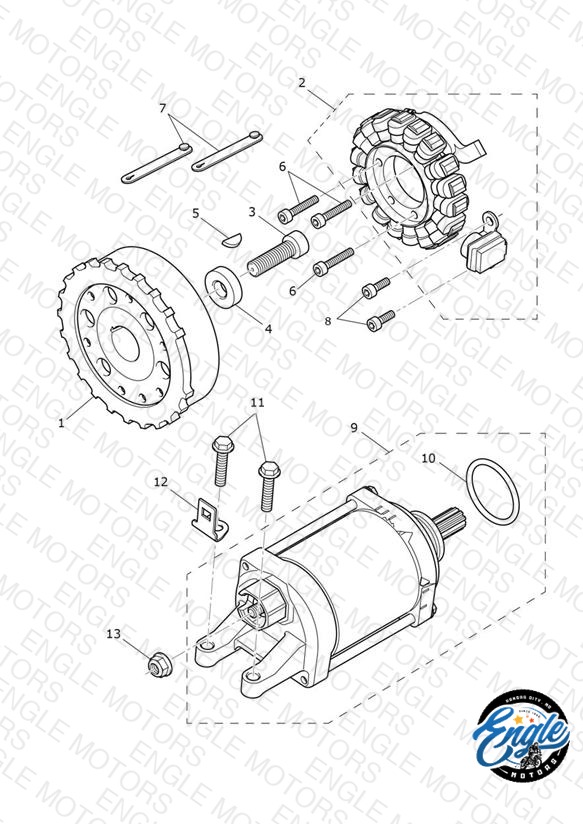

Loading schematic...
Starter & Alternator
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1302103 Alternator, Rotor | Alternator, Rotor | 1 | $966.49 | Available to order | 1 |
| 2 | T1302104 Stator, Alternator | Stator, Alternator | 1 | $604.05 | Out of Stock | Notify Me |
| 3 | T3332370 Bolt, Oil Feed, TX, M12 x 40 | Bolt, Oil Feed, TX, M12 x 40 | 1 | $14.46 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 3 | $1.06 | Available to order | 3 |
| 7 | T3700212 Band, Rubber | Band, Rubber | 2 | $3.29 | Available to order | 2 |
| 8 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 2 | $0.57 | Backorder — Late August 2026 | 2 |
| 9 | T1317618 Starter Motor | Starter Motor | 1 | $571.07 | Available to order | 1 |
| 10 | T3600115 O Ring | O Ring | 1 | $3.39 | Available to order | 1 |
| 11 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 12 | T2508250 Tab, Connector, Crank Pos | Tab, Connector, Crank Pos | 1 | $9.57 | Backorder — Late July 2026 | 1 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
