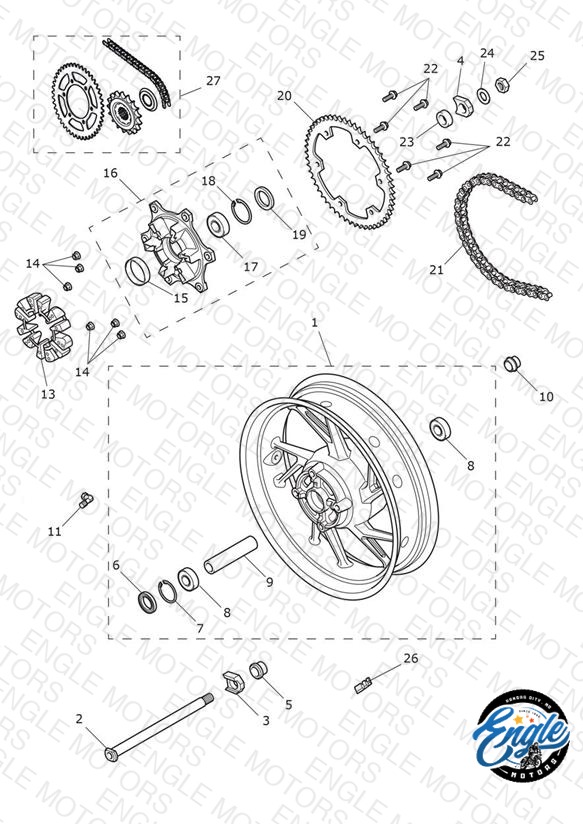

Loading schematic...
Rear Wheel
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010909 Rear Wheel Assembly | Rear Wheel Assembly | 1 | $1223.48 | Out of Stock | Notify Me |
| 2 | T2015060 Rear Wheel Spindle | Rear Wheel Spindle | 1 | $96.97 | Available to order | 1 |
| 3 | T2012017 Adjuster, Rear Wheel, RH | Adjuster, Rear Wheel, RH | 1 | $17.21 | Available to order | 1 |
| 4 | T2012016 Adjuster, Rear Wheel, LH | Adjuster, Rear Wheel, LH | 1 | $17.21 | Backorder — Mid August 2026 | 1 |
| 5 | T2012048 Top Hat Spacer, 22.4 Long | Top Hat Spacer, 22.4 Long | 1 | $11.32 | Available to order | 1 |
| 6 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 1 | $22.52 | Backorder — Early August 2026 | 1 |
| 7 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 8 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 9 | T2004203 Spacer, Wheel, 20 127.2 | Spacer, Wheel, 20 127.2 | 1 | $38.99 | Out of Stock | Notify Me |
| 10 | T2010492 Spacer, Stepped | Spacer, Stepped | 1 | $19.37 | Available to order | 1 |
| 11 | T2006635 Valve Assy, Alum, 90, Black | Valve Assy, Alum, 90, Black | 1 | $16.04 | Available to order | 1 |
| 13 | T2010650 Cush Drive Rubber | Cush Drive Rubber | 1 | $90.30 | Available to order | 1 |
| 14 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 15 | T2010630 Bearing, Ring | Bearing, Ring | 1 | $54.20 | Available to order | 1 |
| 16 | T2011180 Sprocket Carrier Assy, Black | Sprocket Carrier Assy, Black | 1 | $378.49 | Available to order | 1 |
| 17 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 18 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 19 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 20 | T2011199 Rear Sprocket, 50T | Rear Sprocket, 50T | 1 | $52.82 | Available to order | 1 |
| 21 | T2012741 Chain, Spares, 525HV3, 122L | Chain, Spares, 525HV3, 122L | 1 | $253.98 | Available to order | 1 |
| 22 | T3205790 Bolt, HHF, M8 x 25, Slv | Bolt, HHF, M8 x 25, Slv | 6 | $2.70 | Available to order | 6 |
| 23 | T2010647 Spacer Tube, 35 x 20 x 12.5 | Spacer Tube, 35 x 20 x 12.5 | 1 | $8.09 | Out of Stock | Notify Me |
| 24 | T3555035 Washer, 19 x 34 x 3 | Washer, 19 x 34 x 3 | 1 | $1.27 | Available to order | 1 |
| 25 | T3350118 Locknut, Plain, M18 | Locknut, Plain, M18 | 1 | $11.56 | Backorder — Late July 2026 | 1 |
| 26 | T2007102 Wheel Weight, 5g, Black | Wheel Weight, 5g, Black Use as required | 1 | $11.01 | Available to order | 1 |
| 26 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black Use as required | 1 | $11.01 | Available to order | 1 |
| 27 | T2011244 Chain & Sprocket Kit, 122/50/16 | Chain & Sprocket Kit, 122/50/16 | 1 | $274.24 | Available to order | 1 |
