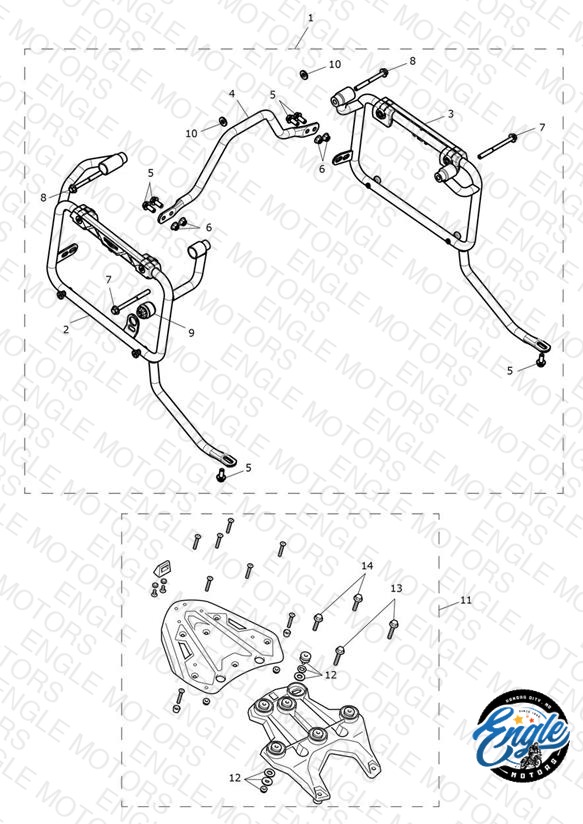

Luggage Mounting System - BR Only AV3319 >
Schematic
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9501286 Frame Kit, Panniers | Frame Kit, Panniers | 1 | $450.00 | Available to order | 1 |
| 2 | T2353500 Pannier Mount Frame, Assy, RH | Pannier Mount Frame, Assy, RH | 1 | $334.02 | Available to order | 1 |
| 3 | T2353501 Pannier Mount Frame, Assy, LH | Pannier Mount Frame, Assy, LH | 1 | $334.02 | Available to order | 1 |
| 4 | T2353504 Pannier Mount Frame, Link Bar | Pannier Mount Frame, Link Bar | 1 | $111.83 | Available to order | 1 |
| 5 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 6 | $1.62 | Backorder — Early August 2026 | 6 |
| 6 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 4 | $2.45 | Available to order | 4 |
| 7 | T3202327 Bolt, HHF, M8 x 95, Slv | Bolt, HHF, M8 x 95, Slv | 2 | $3.71 | Available to order | 2 |
| 8 | T3202323 Bolt, HHF, M8 x 80, Slv | Bolt, HHF, M8 x 80, Slv | 2 | $1.62 | Backorder — Early August 2026 | 2 |
| 9 | T2203434 Stop, Silencer | Stop, Silencer | 2 | $6.83 | Available to order | 2 |
| 10 | T3550184 Washer, Hardened, 8.2 x 18.7 x 2 | Washer, Hardened, 8.2 x 18.7 x 2 | 2 | $2.25 | Backorder — Early August 2026 | 2 |
| 11 | A9500640 Sliding Carriage Kit | Sliding Carriage Kit | 1 | $253.80 | Available to order | 1 |
| 12 | T9500695 Spares Kit, Sliding Carriage | Spares Kit, Sliding Carriage | 1 | $133.49 | Available to order | 1 |
| 13 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 2 | $6.65 | Available to order | 2 |
| 14 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 2 | $3.04 | Available to order | 2 |
